1) When removing the spur unit, first open the top cover, and then remove the left and right circle covers, tank cover, right upper cover, operation panel, lower rear

cover, right cover, right front cover, upper front cover, lower front cover, cover guide, upper rear cover, and left and right cover mounting plates. Refer to DISAS-

SEMBLY/REASSEMBLY > Points to Note on Disassembly and Reassembly > External Covers.

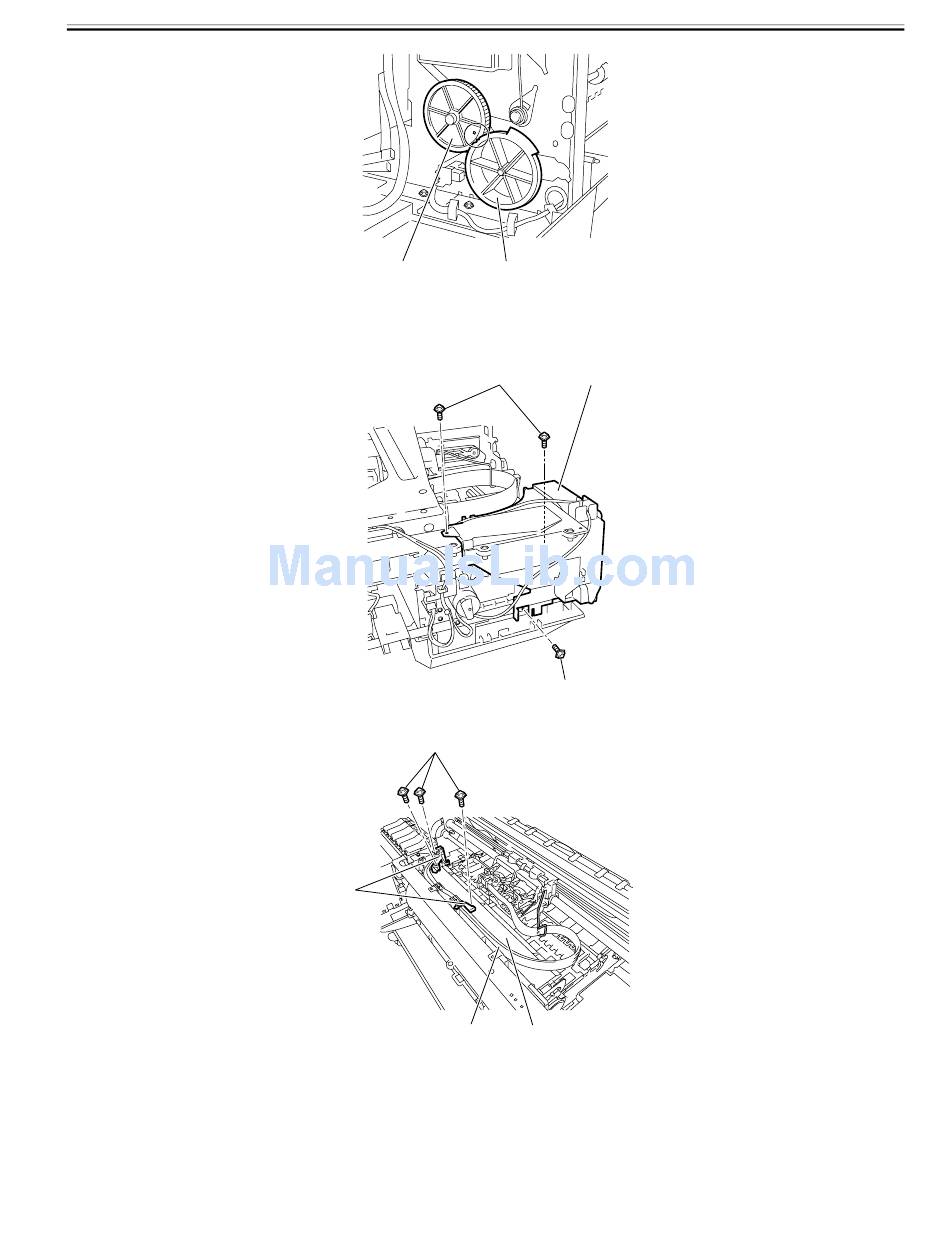

2) Remove the three screws[1], and then remove the mist fan[2].

3) Remove the three screws[2], and then remove the two tube guides[1]. Remove the ink tube[3] from the front duct[4].

4) Remove the front duct[2] by removing the four screws[1].

[1]

[2]

F-4-57

[1]

F-4-58

[2]

[1]

[3]
