1) When removing the cutter lifter unit, open the top cover, and then remove the cassette, output tray unit, left and right circle covers, tank cover, lower rear cover,

left and right covers, right upper cover, operation panel, left and right front cover, upper front cover, mist filter, filter cover, filter, and lower front cover. Refer

to DISASSEMBLY/REASEMBLY > Points to note on Disassembly and Reassembly > External Cover.

2) Remove the cutter unit.

3) Remove the belt[1], two screws[2], and harness, and then remove the cutter lifter unit[3].

c) Removing the cutter drive unit

1) When removing the cutter drive unit, open the top cover, and then remove the cassette, output tray unit, left and right circle covers, tank cover, lower rear cover,

left and right covers, right upper cover, operation panel, left and right front cover, upper front cover, mist filter, filter cover, filter, and lower front cover. Refer

to DISASSEMBLY/REASEMBLY > Points to note on Disassembly and Reassembly > External Cover.

2) Remove the cutter unit.

3) Remove the two screws[1], and harness, and then remove the cutter drive unit[2].

4.3.7 Carriage Unit

a) Removeing the carriage unit

1) Drain the ink. Refer to DISASSEMBLY/REASSEMBLY > Points to Note on Disassembly and Reassembly > Draining the Ink.

2) Turn off the power, and then move the carriage over the platen. Refer to DISASSEMBLY/REASSEMBLY > Points to Note on Disassembly and Reassembly

> Opening the Caps and Moving the Wiper Unit.

3) Remove the printhead.

4) Remove the joint of the ink tube unit. Wrap the removed joint with a plastic bag or other covering so that ink does not splashes, then close the plastic bag.

[1]

[2]

[1]

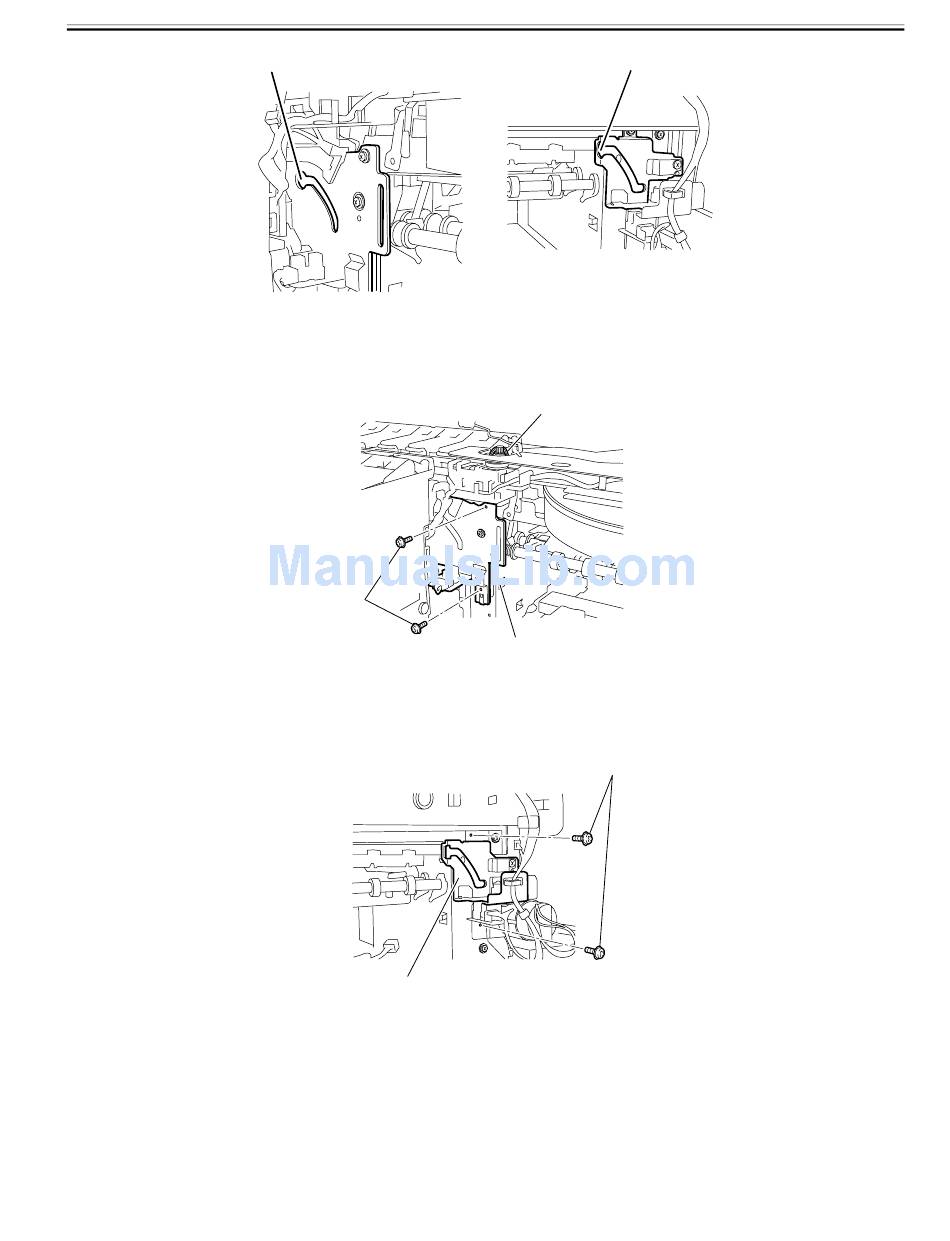

F-4-33

[1]

[3]

F-4-34

[1]

F-4-35
