Canon imagePROGRAF iPF5000 Series Service Manual page 109

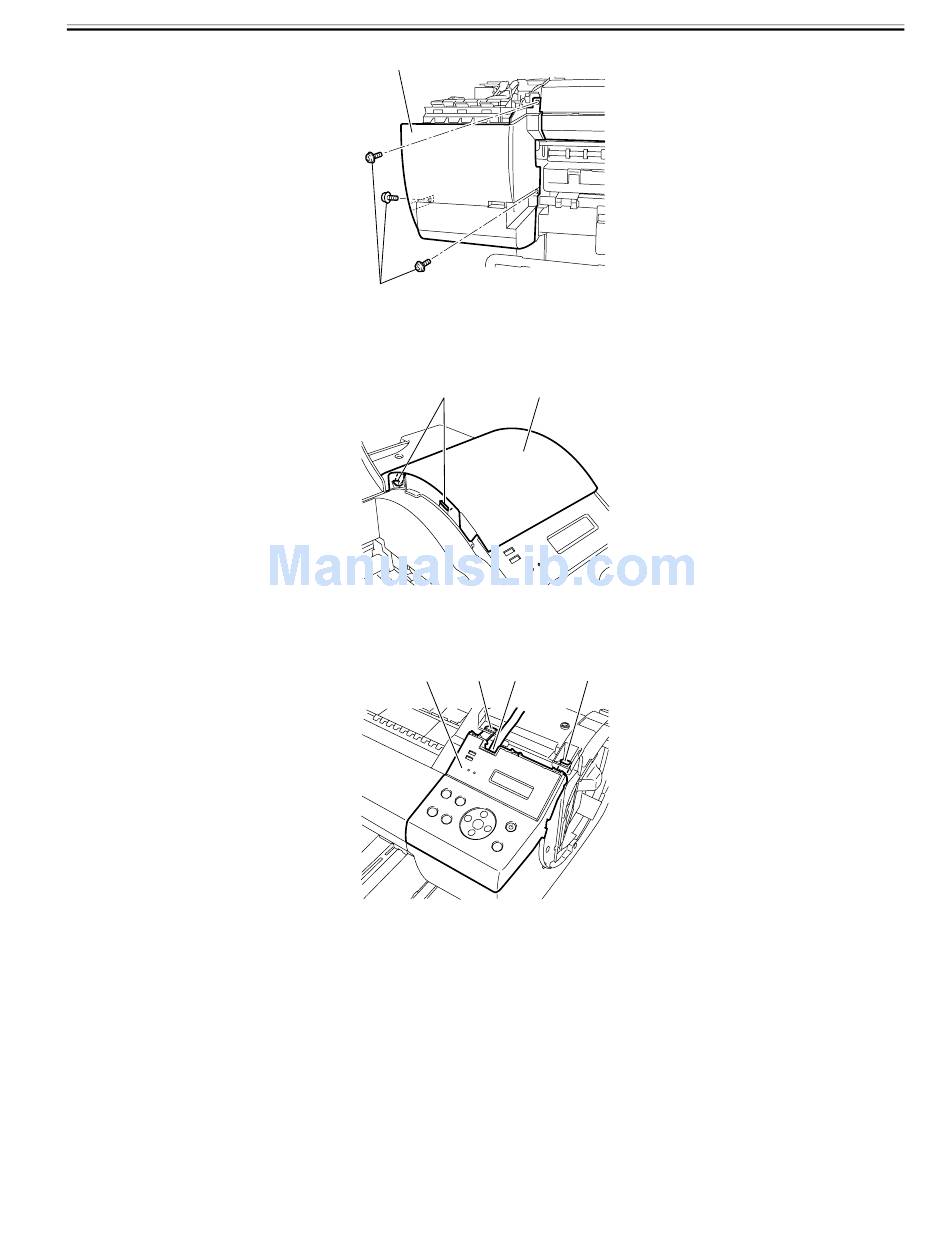

g) Right upper cover
Removing the right upper cover
1) When removing the right upper cover[2], open the top cover, and then remove the right circle cover.
2) Release the two hooks[1], and then remove the right upper cover[2].
h) Operation panel
Removing the operation panel
1) When removing the operation panel[3], open thetop cover and right upper cover.
2) Release the two hooks[1] and the flexible cable[2].
i) Filter cover
Removing the filter cover
1) When removing the filter cover [1], push it in the direction of the arrow while pressing on the handhold.
[2]
[1]
F-4-15
[1] [2]
F-4-16
[3] [1] [2]
F-4-17
[1]
Chapter 4
4-7
