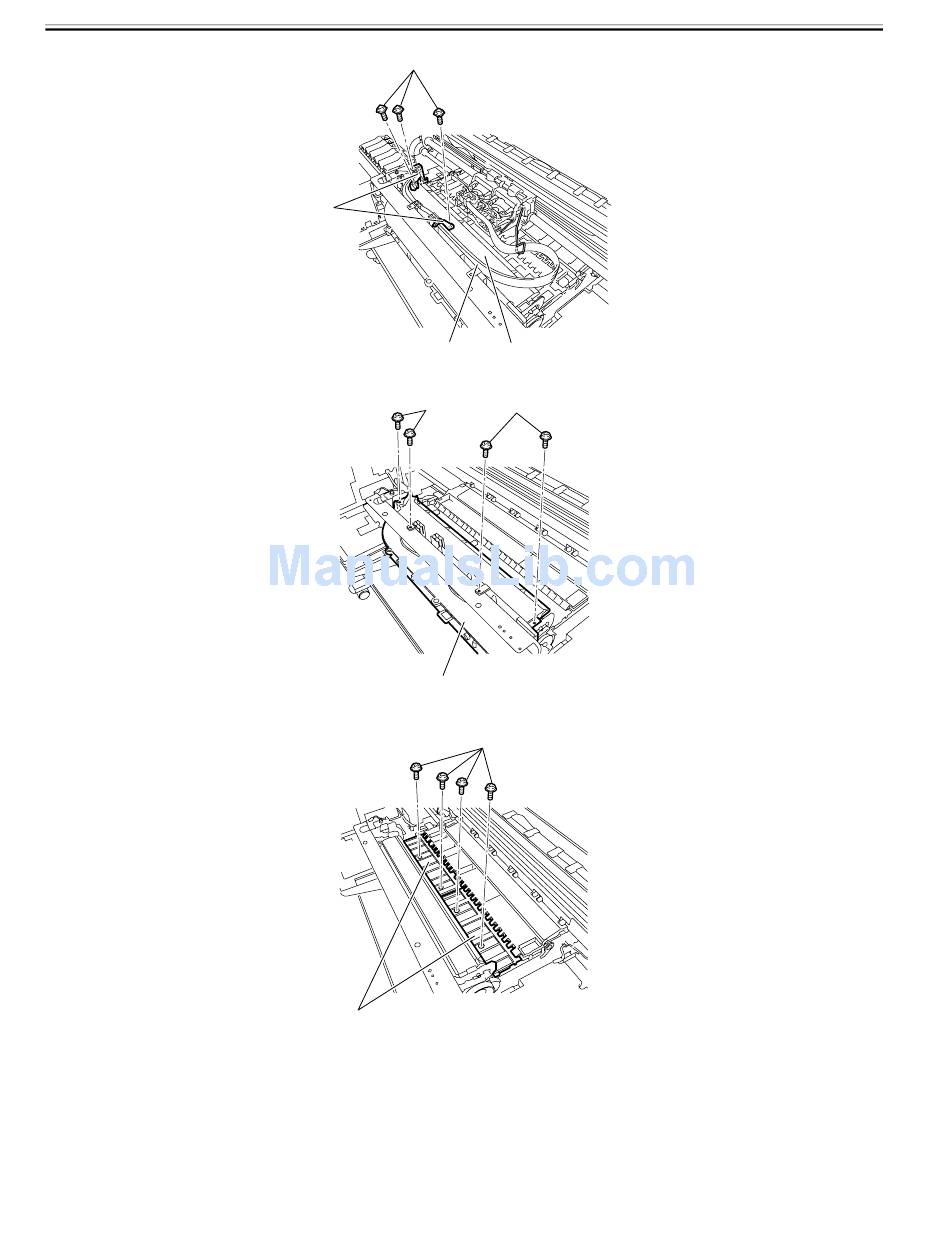

3) Remove the front duct[2] by removing the four screws[1].
4) Remove the platen(front)[2] by removing the four screws[1].
5) Remove the three screws[1].
4-28
[2]
[1]
[3]
F-4-78
[1]
[2]
F-4-79
[1]
[2]
F-4-80
[4]
[1]
