Chapter 4

4.3.4 External Covers

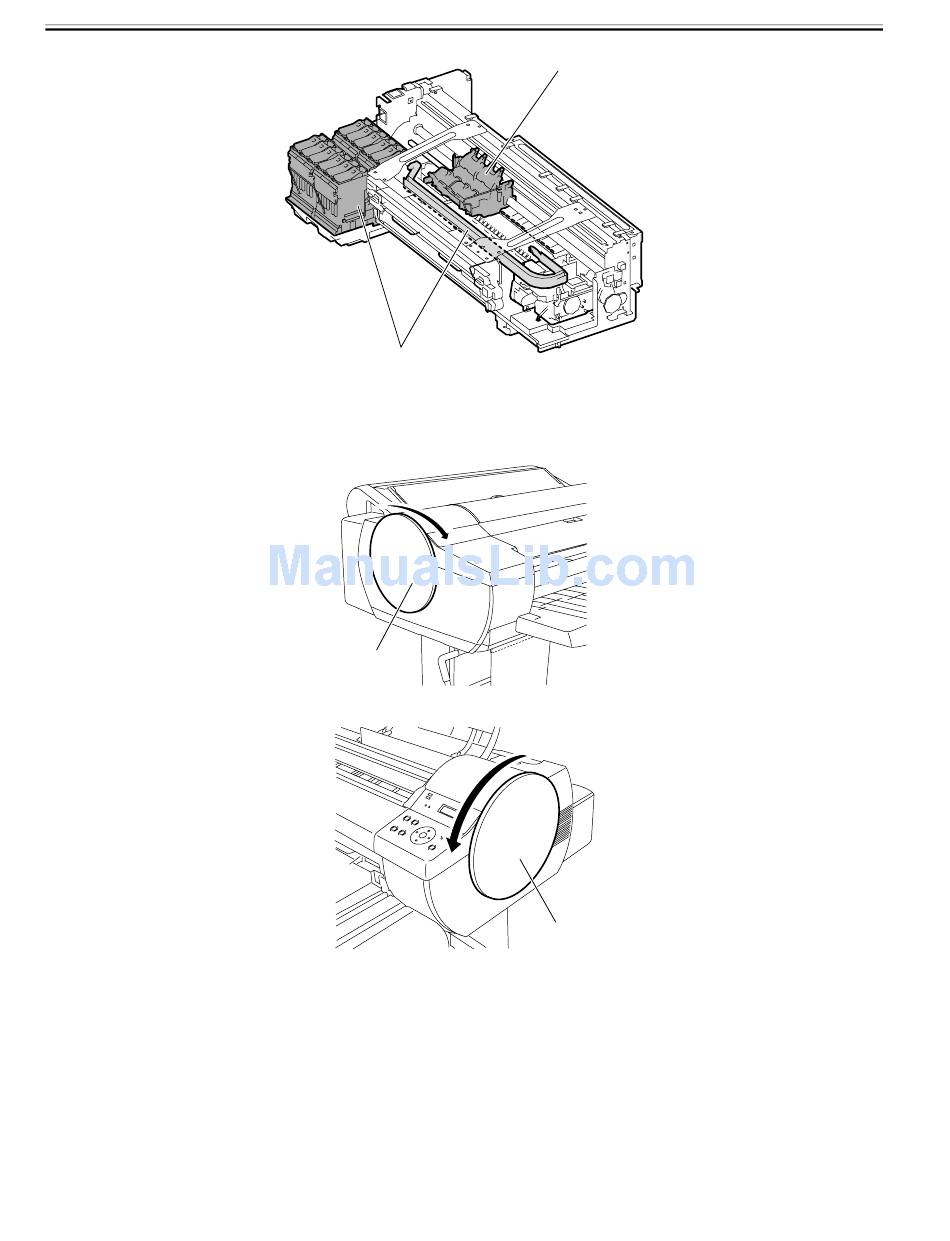

a) Left/right circle cover
Removing the left/right circle cover
1) When removing the left circle cover [1], turn it in the direction of the arrow.
2) When removing the right circle cover [1], turn it in the direction of the arrow.
Attaching the left/right circle cover
1) When attacing the left circle cover, fit it in place with the three hooks [1] up and turn it toward the rear side of the printer. when attacing the right circle cover,
fit it in place with the two hooks [2] up and turn it toward the rear side of the printer.
4-4
[2]
F-4-7
[1]
F-4-8
F-4-9
[1]
[1]
0012-6358
