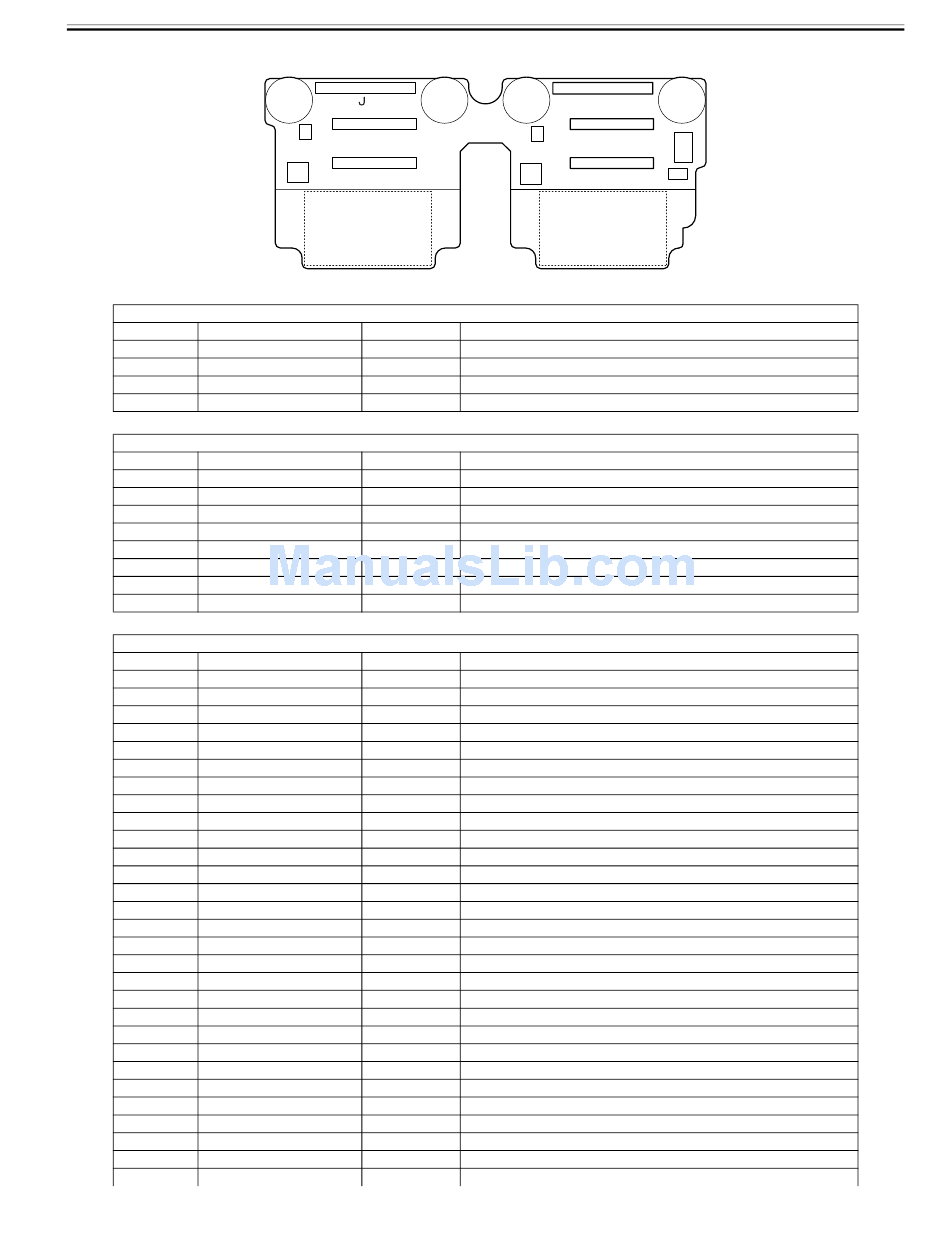

6.2.2 Carriage relay PCB

J3
Pin Number Signal name
1 ENCODER_B
2 GND
3 ENCODER_A
4 H1_5V
J5
Pin Number Signal name
1 PWLED1
2 PWLED2
3 PWLED3
4 PWLED4
5 GND
6 OUT1
7 OUT2
8 VH
J21 (Main controller PCB J3402)
Pin Number Signal name
1 GND
2 GND
3 GND
4 HD1_VHFBG
5 GND
6 GND
7 GND
8 GND
9 VH
10 VH
11 VH
12 VH
13 VH
14 HD1_VHFBH
15 VH
16 VH
17 VH
18 VH
19 VH
20 VH
21 VH
22 VH
23 VH
24 VH
25 GND
26 GND
27 GND
28 GND
29 GND
11
11
J12 J12
J13
J13
J14
J14
F-6-2
T-6-29
IN/OUT Function
IN Linear encoder detection signal B
- GND
IN Linear encoder detection signal A
OUT Power supply (+5V)
T-6-30
IN/OUT Function
OUT Multi sensor LED1 drive signal
OUT Multi sensor LED2 drive signal
OUT Multi sensor LED3 drive signal
OUT Multi sensor LED4 drive signal
- GND
IN Multi sensor input signal 1
IN Multi sensor input signal 2
OUT Power supply (+21.5V)
T-6-31
IN/OUT Function
- GND
- GND
- GND
OUT VH feed back voltage -
- GND
- GND
- GND
- GND
IN Power supply (+21.5V)
IN Power supply (+21.5V)
IN Power supply (+21.5V)
IN Power supply (+21.5V)
IN Power supply (+21.5V)
OUT VH feed back voltage +
IN Power supply (+21.5V)
IN Power supply (+21.5V)
IN Power supply (+21.5V)
IN Power supply (+21.5V)
IN Power supply (+21.5V)
IN Power supply (+21.5V)
IN Power supply (+21.5V)
IN Power supply (+21.5V)
IN Power supply (+21.5V)
IN Power supply (+21.5V)
- GND
- GND
- GND
- GND
- GND
J21
J21
J22
J22
J5 J5
J3 J3
J23
J23
J24
J24
Chapter 6
0013-3762
6-13
