Canon imagePROGRAF iPF5000 Series Service Manual page 119

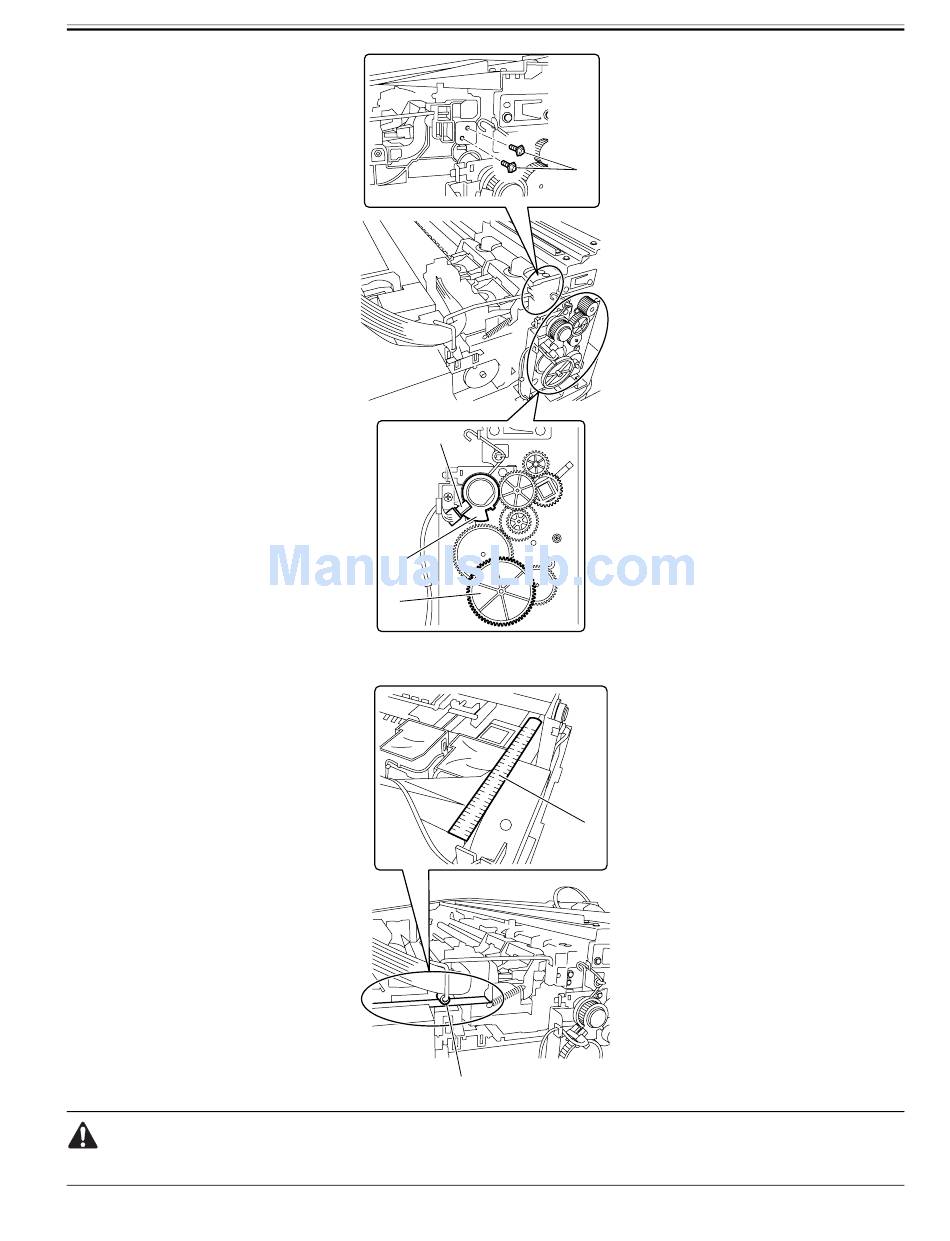

(3) Place the scale[5] on the mist fan as shown below, adjust the wire guide height so that the wire roller[6] touches the top surface of the scale, and then tighten
the screw loosened in step (1).
* To prevent the wire roller from being disengaged, install the right cover with the carriage moved onto the platen.
* After installing the right cover, check that the wire roller has not been disengaged.
[4]
[3]
[2]
F-4-44
[6]
F-4-45
[1]
[5]
Chapter 4
4-17
