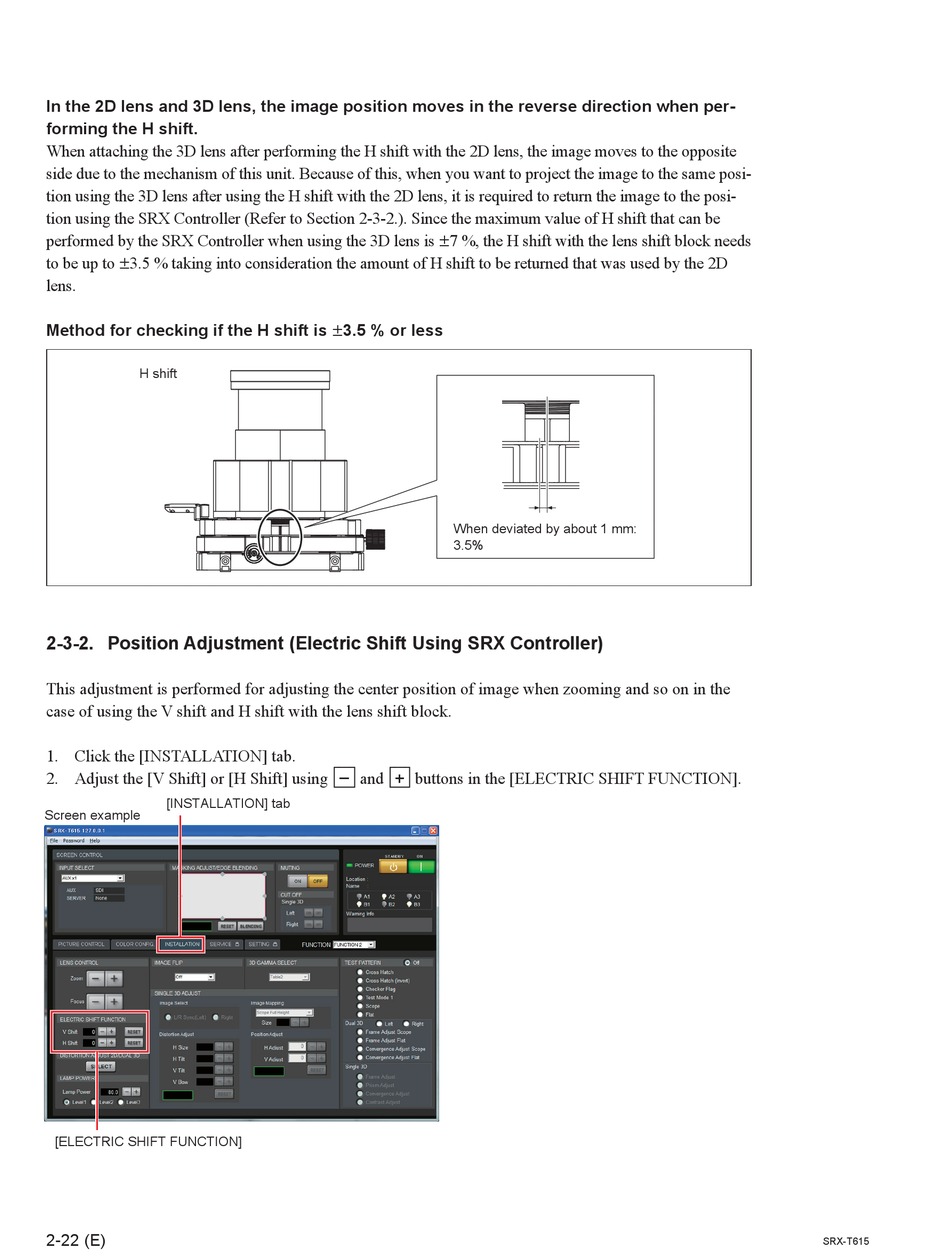

In the 2D lens and 3D lens, the image position moves in the reverse direction when per-
forming the H shift.
When attaching the 3D lens after performing the H shift with the 2D lens, the image moves to the opposite
side due to the mechanism of this unit. Because of this, when you want to project the image to the same posi-
tion using the 3D lens after using the H shift with the 2D lens, it is required to return the image to the posi-
tion using the SRX Controller (Refer to Section 2-3-2.). Since the maximum value of H shift that can be
performed by the SRX Controller when using the 3D lens is ?7 %, the H shift with the lens shift block needs
to be up to ?3.5 % taking into consideration the amount of H shift to be returned that was used by the 2D
lens.
Method for checking if the H shift is ?3.5 % or less
H shift

2-3-2. Position Adjustment (Electric Shift Using SRX Controller)

This adjustment is performed for adjusting the center position of image when zooming and so on in the
case of using the V shift and H shift with the lens shift block.
1. Click the [INSTALLATION] tab.
2. Adjust the [V Shift] or [H Shift] using [_] and [+] buttons in the [ELECTRIC SHIFT FUNCTION].
[INSTALLATION] tab
Screen example
[ELECTRIC SHIFT FUNCTION]
2-22 (E)
When deviated by about 1 mm:
3.5%
