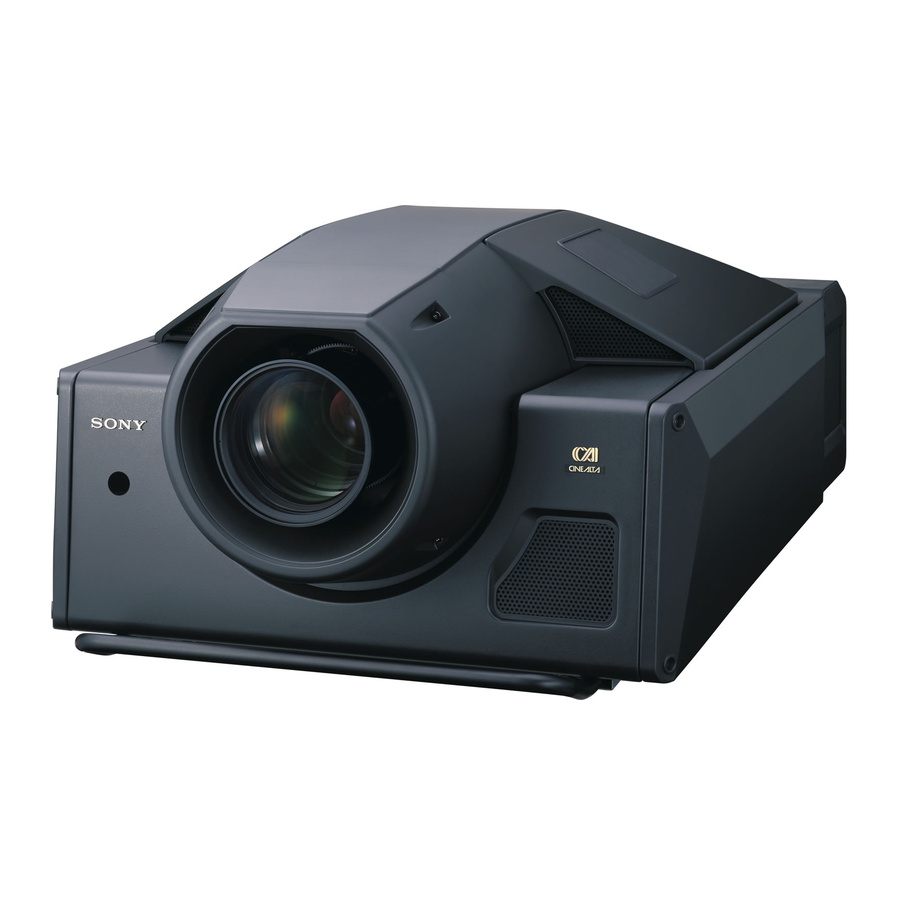

Sony SRX-T105 Operating Instructions Manual
Sony projector user manual
Hide thumbs
Also See for SRX-T105:
- Installation manual (44 pages) ,
- Brochure (12 pages) ,
- Manual (39 pages)
Related Manuals for Sony SRX-T105
Summary of Contents for Sony SRX-T105
- Page 1 Data Projector Operating Instructions Before operating the unit, please read this manual thoroughly and retain it for future reference. SRX-T110 SRX-T105 © 2008 Sony Corporation 4-115-585-11 (2)
- Page 2 Owner’s Record The model and serial numbers are located at the side. Record these numbers in the spaces provided below. Refer to these numbers whenever you call upon your Sony dealer regarding this product. Model No.____________________ Serial No.____________________ WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
-
Page 3: Table Of Contents
Table of Contents Chapter 1 Overview Precautions ...5 Features... 7 Location and Function of Controls ... 8 Chapter 2 Preparations Precautions on Installation... 13 Installation... 14 Installing the SRX Controller in a Computer for Controlling Connecting a Computer for Controlling the Projector ... 17 Starting the SRX Controller ... - Page 4 Projecting the Picture ... 22 Chapter 4 Adjustments and Settings Using the SRX Controller Displaying the Control Function Menu Window ... 26 PICTURE CONTROL Window ... 27 COLOR/FRAME Window ... 29 INSTALLATION Window... 30 Input Signals And Adjustable/Setting Items ... 33 Chapter 5 Others Lamp Life...
-
Page 5: Chapter 1 Overview
On safety • Operate the unit on 200 – 240 V AC, 50/60 Hz (SRX- T110), or 100 – 240 V AC, 50/60 Hz (SRX-T105). • Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by your Sony dealer before operating it further. - Page 6 projector. Be aware that room heat rises to the ceiling; check that the temperature near the installation location is not excessive. • Install the projector on the floor or hang it from the ceiling. Any other installation causes a malfunction such as color irregularity or a shorten lamp life.
-
Page 7: Features
High brightness The SRX-T110 uses two 2 kW Xenon lamps as a light source, and the SRX-T105 uses two 1 kW Xenon lamps. These compact-size Xenon lamps provide high brightness of 11,000 lumens for the SRX-T110 and 5,500 lumens for the SRX-T105, assuring excellent uniformity on the entire screen. -
Page 8: Location And Function Of Controls
AC IN terminal board Connect the AC power cord with three wires (not supplied). For connection of the AC power cord, contact your Sony dealer. f STATUS MESSAGE window Displays an error message. If the message is displayed, contact your Sony dealer. -
Page 9: Control Function Menu Window
Input board attachment parts Depending on the input sources, attach the optional input board to each slot. For attachment, contact your Sony dealer. They are arranged in order of INPUT A, INPUT B, INPUT C and INPUT D from the top. - Page 10 Location: Shows the installation location of the projector that was set in the SETTING window. Name: Shows the name of the projector that was set in the SETTING window. Operation Timer: Shows the total operating hours of the projector. Lamp A/Lamp B: Shows an approximate percentage to indicate the time used before the recommended time for replacement of each projection lamp (i.e.
-
Page 11: Remote Commander
The setting also functions when you operate this unit with the Remote Commander. Remote Commander Notes • Be sure that there is nothing to obstruct the infrared beam between the Remote Commander and the projector. Direct the Remote Commander toward one of the remote control detectors at the front and rear of the projector when operating. - Page 12 Select the input signal with one of the INPUT SEL A/B/C/ D buttons (5), then select the screen with one of these buttons. Example: When you want to project the signal input from the INPUT B board on Screen 3 (lower left screen), press the INPUT SEL B button, then press the SCREEN SEL 3 button.
-
Page 13: Chapter 2 Preparations
Preparations Precautions on Installation Unsuitable Installation Do not install the projector in the following situations. Such installations may cause a malfunction or damage to the projector. Poorly ventilated The projector is equipped with ventilation holes for intake and exhaust to prevent internal heat build-up. Do not place the projector in a place where the ventilation holes may be blocked. -
Page 14: Unsuitable Conditions
Unsuitable Conditions Do not use the projector under the following conditions. Laying the unit on its side or upside down Tilting the unit to the right or left Avoid tilting the projector more than ± 10 degrees. Doing so may cause color shading or shorten the lamp life excessively. -
Page 15: Installing The Projector
Caution Do not turn the spanner forcibly when the screw has fully rotated. Otherwise, the spanner may slip and injure your hand. Installing the Projector This section describes briefly how to install the projector on the floor. The distance between the center of the lens and the screen varies depending on the optional lens attached, the horizontal screen size or the input signal. - Page 16 After a while, the Welcome page of the SRX Controller appears. Click “Next”. The License Agreement window appears. Read the license agreement, click “I accept the terms in the license agreement” if you agree to be bound by the terms, and click “Next”. The select window of the destination folder in which to install the SRX Controller appears.
-
Page 17: Connecting A Computer For Controlling The Projector
Installation of the SRX Controller is completed. To restart the SRX Controller immediately after installation has been completed, click to check “Launch SRX Controller for SRX-T series”, then click “Finish”. icon is displayed in the desktop window. Connecting a Computer for Controlling the Projector Connect a computer for controlling the projector to the... -
Page 18: Connecting The Computer Via The Rs-232C
If the power of the projector remains on for a long period of time without the ethernet cable connected, the message “Sony Data Projector Initializing…” may appear in the STATUS MESSAGE window while you are setting up for networking after connecting the ethernet cable. This is not a malfunction of the projector. -
Page 19: Changing The Connection Mode
About the Program Launcher screen a Menu bar File Select “Quit” from the “File” menu to exit the SRX Controller. Connect Selects the connection mode between the projector and the computer for controlling the projector. For details, see “Changing the Connection Mode” on page 19. -
Page 20: Connecting The Projector
When pulling out a cable, be sure to pull it out from the plug, not the cable itself. • When installing the optional input board, consult your Sony dealer. Refer also to the instruction manuals of the equipment to be connected. -
Page 21: Connecting With Hd-Sdi Equipment
Note Select “RGB” in “Signal Mode” of “Input Source” in the PICTURE CONTROL window. For details, see page 27. Connecting with HD-SDI Equipment Attach the optional LKRI-002 HD-SDI (4:2:2) or LKRI- 003 HD-SDI (4:4:4) input board to the input board attachment part, and connect the HDCAM recorder/player. -
Page 22: Chapter 3 Projecting
Projecting Projecting the Picture Use the supplied Remote Commander or a computer in which the supplied SRX Controller is installed to project the picture on the screen. Using the Remote Commander STATUS LAMP indicator SCREEN MODE MUTING 1 2 4 FUNCTION INPUT SEL PICTURE CONT... -
Page 23: Using The Computer For Controlling The Projector
the divided screens where you want to project the picture with the SCREEN SEL button. Note When projecting moving pictures in the dual-screen mode or quad-screen mode, all the input signals should be genlocked to synchronize with each other with a phase difference of less than 5 µsec. - Page 24 The POWER and STATUS LAMP indicators light red and the projector goes into standby mode. Start your computer and double-click the the SRX Controller in the desktop window. The Program Launcher screen appears. Select the projector you want to operate by double- clicking the projector.
-
Page 25: Projecting A 4K Signal In Single-Screen Mode
Note The “FOCUS”, “ZOOM” and “SHIFT” indications do not appear when you select “OSD OFF” in the Control Function Menu window. To cut off the picture Click the “ON” button of “CUT OFF”. When you select the dual-screen mode or quad-screen mode, you can cut off the picture of each screen independently. -
Page 26: Chapter 4 Adjustments And Settings Using The Srx Controller
Adjustments and Settings Using the SRX Controller Displaying the Control Function Menu Window When you install the supplied SRX Controller in a computer, you can operate the picture adjustments, input signal settings, installation settings, etc. from the computer. Some of the picture adjustments are available using the supplied Remote Commander. -
Page 27: Picture Control Window
Limited”, which is compatible with DVI1.0 standard and the signal level is Limited Range compliance. When the 10-bit signal based on Sony’s unique specification is input, select “10bit Twin Full” or “10bit Single Full” for a signal of Full Range... -
Page 28: Signal Info (Information)
compliance, or “10bit Twin Limited” or “10bit Single Limited” for a signal of Limited Range compliance. When the LKRI-001 is installed Select “YPbPr” to input a high-definition signal from component equipment, and “RGB” to input a high- definition signal from video GBR equipment. When the LKRI-003 is installed For Single-link input, select “YPbPr”... -
Page 29: Color/Frame Window
COLOR/FRAME Window The COLOR/FRAME window is used to adjust the input signal. When the screen mode is set to dual-screen mode or quad- screen mode, the items can be independently adjusted for each input channel displayed on the screen. Board Shows the input board installed in the relative input board slot of the projector. -
Page 30: Frame Adjust
6500K: White (0.3127, 0.3290) 9300K: White (0.2840, 0.2970) DCI W/P: White (0.3140, 0.3510) CUSTOM1 to CUSTOM3: White (0.3127, 0.3290) (default values) Gamma settings 2.6: 2.6 2.2: 2.2 CUSTOM: Value set using CUSTOM Frame Adjust Adjusts the horizontal size and the position of the picture. Clicking increases the setting value, and decreases it. -
Page 31: Sircs
SIRCS Sets to enable or disable operations using the remote commander. To enable operations, press the “On” radio button. To disable operations, press the “Off” radio button. IMAGE FLIP Flips the picture. Select it from the drop-down list displayed by clicking according to the installed condition of the projector. -
Page 32: Test Pattern
TEST PATTERN Displays a built-in test pattern on the screen for adjusting the picture with no signal input from external equipment. Click the radio button of the desired test pattern from among “Cross Hatch”, “Cross Hatch (Invert)” and “Checker Flag”. When you do not display a built-in test pattern, click the “Off”... -
Page 33: Input Signals And Adjustable/Setting Items
Input Signals And Adjustable/Setting Items Some items of “Signal Adjust” in the PICTURE CONTROL window and “Frame Adjust” in the COLOR/FRAME window are not adjusted or set depending on the input signals. Items that cannot be adjusted depending on the input signal are not displayed in the window. -
Page 34: Chapter 5 Others
The percentage indicates the time used before the recommended time for replacement. Use them as a guide. Be sure to ask your Sony dealer to replace a projection lamp and lamp house. Lamp Life / Maintenance... -
Page 35: Troubleshooting
Troubleshooting If the projector appears to be operating erratically, try to diagnose and correct the problem using the following guide. If the problem still persists, consult your Sony dealer. Power Symptom Cause Power is not turned on. The main power is turned off. -
Page 36: Error Messages
SRX Controller. If there are two or more messages, a displayed message changes each five seconds. Use the list below to check the meaning of the error, and consult your Sony dealer. Be sure to inform them of the displayed messages and their numbers. - Page 37 Error messages FPGA CONFIG FAILURE IIC FAILURE LAMP A ALERT LAMP B ALERT LAMP A WARNING LAMP B WARNING DATA LOAD FAILURE LENS POSITION SENSOR PS FAN FAILURE DVI SIGNAL FAILURE Meaning The internal line of the projector does not function properly. The internal line of the projector does not function properly.
-
Page 38: Specifications
Approx. 120 kg (265 lb) (excluding the optional lamps and lens) Power requirements SRX-T110: 200 to 240 V AC, 50/60 Hz SRX-T105: 100 to 240 V AC, 50/60 Hz Power consumption SRX-T110: Max. approx. 5.4 kW (Standby mode: 40 W) SRX-T105: Max. - Page 39 Design and specifications are subject to change without notice. Note Always verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR...
-
Page 40: Preset Signals
DVI-D connector, AUX connector (24-pin, male) Pin number Signal name DATA2– DATA2+ DATA4– DATA4+ DDC_SCL DDC_SDA DATA1– DATA1+ DATA3– DATA3+ DDC_GND HOTPLUG_DET DATA0– DATA0+ DATA5– DATA5+ CLK+ CLK– Preset Signals Preset signal fH (kHz) VIDEO60 15.73 VIDEO50 15.63 HDTV 33.75 1024 ×... -
Page 41: Displayed Image Size In Multiple Screen Mode
Displayed image size in multiple screen mode Screen Single screen mode Horizontal Type size of signal VIDEO60 2880 VIDEO50 2880 2849 SXGA1 2560 SXGA2 2560 SXGA+ 2800 2864 UXGA 3437 WUXGA 720p 3810 3840 4096 4096 When projecting signals with vertical frequency of more than 1080 pixel such as UXGA and WUXGA in quad-screen mode, a part of the displayed image may be invisible. -
Page 42: Index
Index Adjusters 14 Adjustments and Settings Using the SRX Controller 26 Battery installation 12 Board 27, 29 Brightness 11, 28 Carrying handles 14 Color 28, 29 Color Space 29 Color Temp 29 COLOR/FRAME window 29 Connection mode 19 Connections component/video GBR equipment 21 computer equipped with an analog RGB output 20... - Page 43 Sony Corporation...
