Microphone; Panel Description - Icom IC-M603 Instruction Manual

2

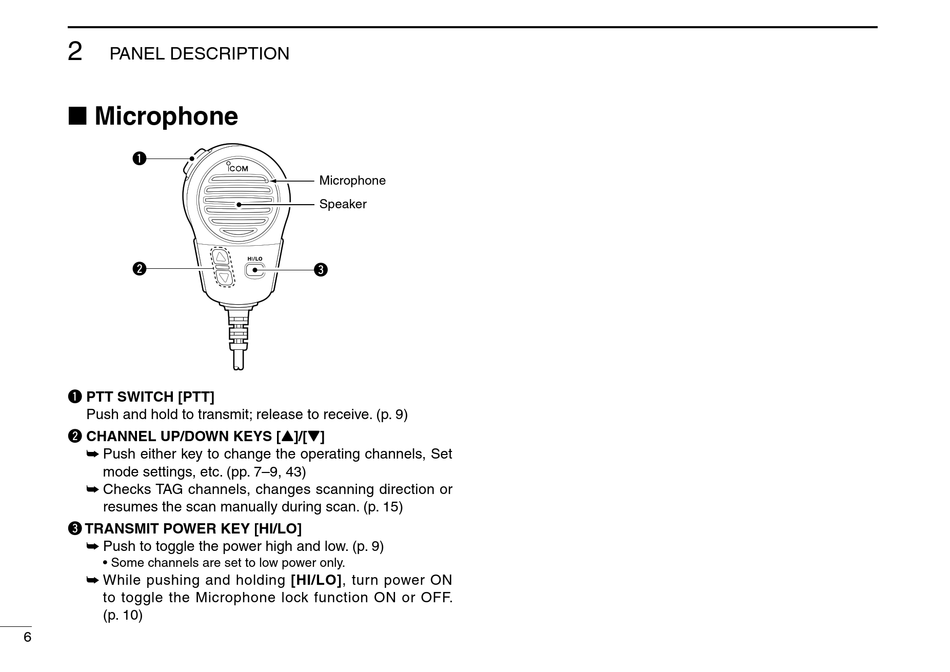

PANEL DESCRIPTION

■ Microphone

q
w
q PTT SWITCH [PTT]
Push and hold to transmit; release to receive. (p. 9)
w CHANNEL UP/DOWN KEYS [Y]/[Z]
➥ Push either key to change the operating channels, Set
mode settings, etc. (pp. 7–9, 43)
➥ Checks TAG channels, changes scanning direction or
resumes the scan manually during scan. (p. 15)
e TRANSMIT POWER KEY [HI/LO]
➥ Push to toggle the power high and low. (p. 9)
• Some channels are set to low power only.
➥ While pushing and holding [HI/LO], turn power ON
to toggle the Microphone lock function ON or OFF.
(p. 10)
6
Microphone
Speaker
e
