6

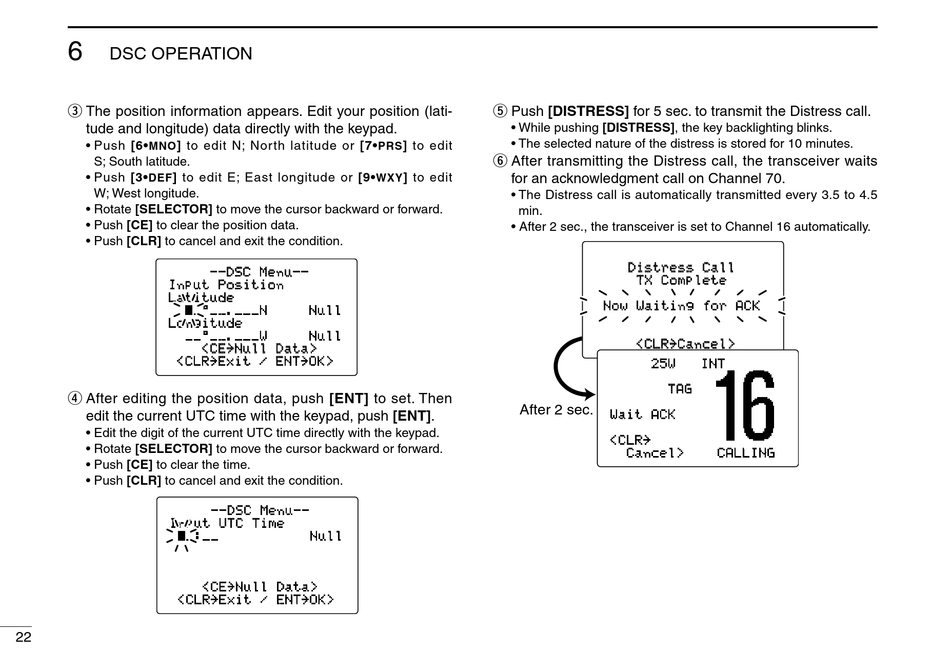

DSC OPERATION
e The position information appears. Edit your position (lati-
tude and longitude) data directly with the keypad.
• Push [6• ] to edit N; North latitude or [7•
MNO
S; South latitude.
• Push [3• ] to edit E; East longitude or [9•
DEF
W; West longitude.
• Rotate [SELECTOR] to move the cursor backward or forward.
• Push [CE] to clear the position data.
• Push [CLR] to cancel and exit the condition.
Input Position
Latitude
__°__.___N
Longitude
__°__.___W
<CLR˘Exit / ENT˘OK>
r After editing the position data, push [ENT] to set. Then
edit the current UTC time with the keypad, push [ENT].
• Edit the digit of the current UTC time directly with the keypad.
• Rotate [SELECTOR] to move the cursor backward or forward.
• Push [CE] to clear the time.
• Push [CLR] to cancel and exit the condition.
Input UTC Time
__:__
<CLR˘Exit / ENT˘OK>
22
PRS
WXY
--DSC Menu--
Null
Null
<CE˘Null Data>
--DSC Menu--
Null
<CE˘Null Data>
t Push [DISTRESS] for 5 sec. to transmit the Distress call.
• While pushing [DISTRESS], the key backlighting blinks.
• The selected nature of the distress is stored for 10 minutes.
] to edit
y After transmitting the Distress call, the transceiver waits
] to edit for an acknowledgment call on Channel 70.
• The Distress call is automatically transmitted every 3.5 to 4.5
min.
• After 2 sec., the transceiver is set to Channel 16 automatically.
After 2 sec.
Distress Call
TX Complete
Now Waiting for ACK
<CLR˘Cancel>
25W INT
TAG
Wait ACK
<CLR ˘
Cancel> CALLING
