■ Setting TAG channels

For more efficient scanning, add the desired channels as
TAG channels or clear the TAG for unwanted channels.
Channels that are not tagged will be skipped during scan-
ning. TAG channels can be assigned to each channel group
(INT, USA, ATIS or DSC) independently.
q While pushing and holding [H/L], push [DIAL] several
times to select the desired channel group.
w Select the desired channel to be set as a TAG channel.
e Push [F], then push [5•
TAG
nel as a TAG channel.
• "TAG" appears in the display.
r To cancel the TAG channel setting, repeat step e.
• "TAG" disappears.
Clearing (or setting) all tagged channels
While pushing and holding [H/L], push [5•
(until a long beep changes to 2 short beeps) to clear all TAG
channels setting in the selected channel group.
• Repeat above procedure to set all channels as TAG channels.

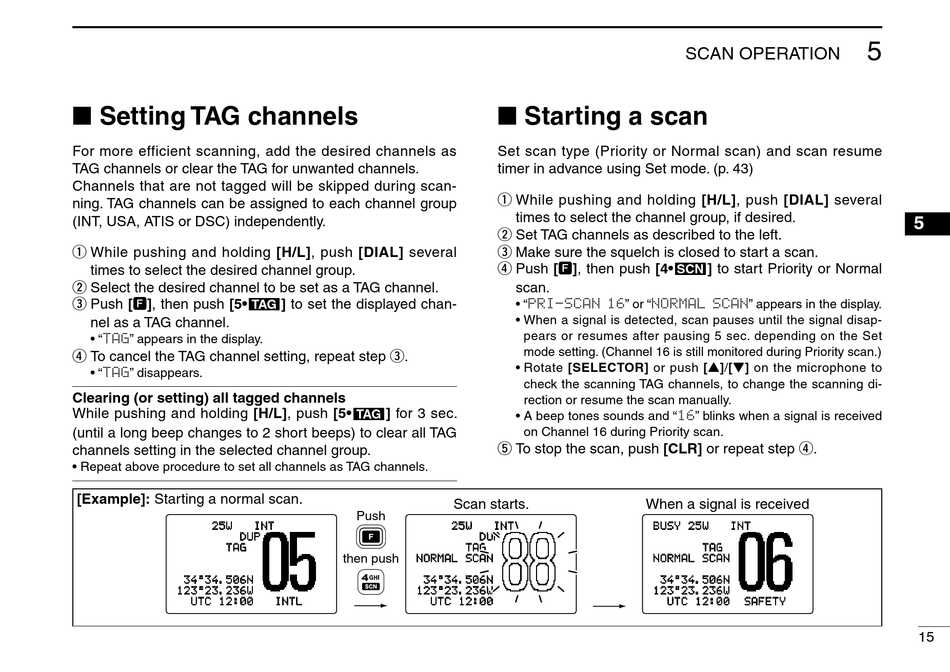

[Example]: Starting a normal scan.
25W
DUP
TAG
34°34.506N
123°23.236W
UTC 12:00
] to set the displayed chan-
] for 3 sec.
TAG
Push
INT
then push
NORMAL SCAN
34°34.506N
123°23.236W
INTL UTC 12:00

■ Starting a scan

Set scan type (Priority or Normal scan) and scan resume
timer in advance using Set mode. (p. 43)
q While pushing and holding [H/L], push [DIAL] several
times to select the channel group, if desired.
w Set TAG channels as described to the left.
e Make sure the squelch is closed to start a scan.
r Push [F], then push [4•
scan.
• "PRI-SCAN 16" or "NORMAL SCAN" appears in the display.
• When a signal is detected, scan pauses until the signal disap-
pears or resumes after pausing 5 sec. depending on the Set
mode setting. (Channel 16 is still monitored during Priority scan.)
• Rotate [SELECTOR] or push [Y]/[Z] on the microphone to
check the scanning TAG channels, to change the scanning di-
rection or resume the scan manually.
• A beep tones sounds and "16" blinks when a signal is received
on Channel 16 during Priority scan.
t To stop the scan, push [CLR] or repeat step r.
Scan starts.
25W INT
DUP
TAG

SCAN OPERATION

] to start Priority or Normal
SCN
When a signal is received
BUSY 25W INT
TAG
NORMAL SCAN
34°34.506N
123°23.236W
UTC 12:00 SAFETY
5
5
15
