Options; Specifications And Options - Icom IC-M603 Instruction Manual

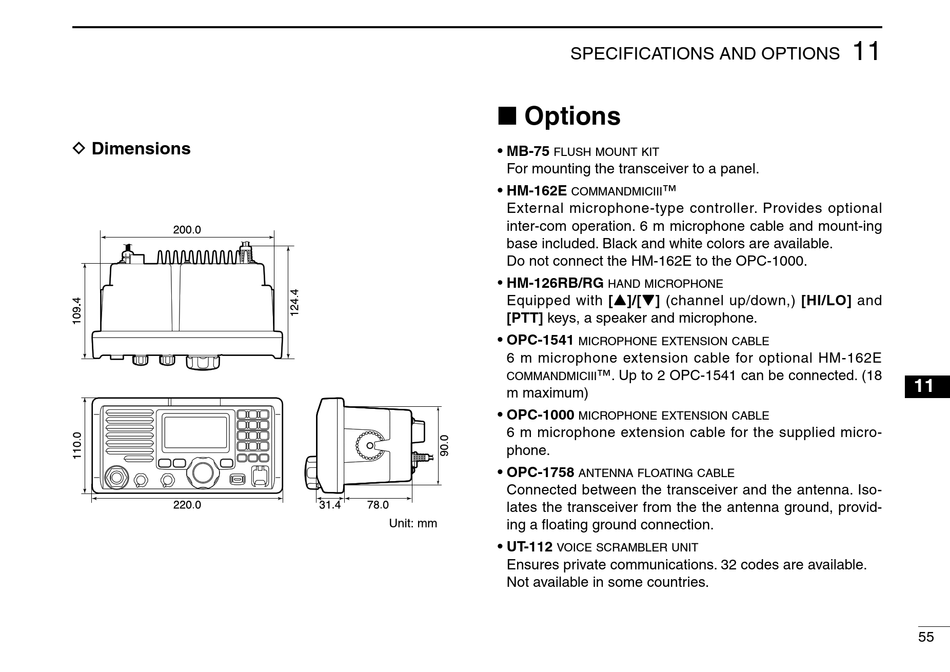

D Dimensions
220.0 (8 21 ⁄ ˝)
32
31.4 78.0
(1 1 ⁄ ˝) (3 1 ⁄ ˝)
4 16
Unit: mm

SPECIFICATIONS AND OPTIONS

■ Options

• MB-75
flush mount kit
For mounting the transceiver to a panel.
• HM-162E
™
commandmiciii
External microphone-type controller. Provides optional
inter-com operation. 6 m microphone cable and mount-ing
base included. Black and white colors are available.
Do not connect the HM-162E to the OPC-1000.
• HM-126RB/RG
hand microphone
Equipped with [Y]/[Z] (channel up/down,) [HI/LO] and
[PTT] keys, a speaker and microphone.
• OPC-1541
microphone extension cable
6 m microphone extension cable for optional HM-162E
™. Up to 2 OPC-1541 can be connected. (18
commandmiciii
m maximum)
• OPC-1000
microphone extension cable
6 m microphone extension cable for the supplied micro-
phone.
• OPC-1758
antenna floating cable
Connected between the transceiver and the antenna. Iso-
lates the transceiver from the the antenna ground, provid-
ing a floating ground connection.
• UT-112
voice scrambler unit
Ensures private communications. 32 codes are available.
Not available in some countries.
11
11
55
