2. Operation

2.8.3 Heating up with automatic ignition

Information!
Before filling, ensure that there are no em-
bers in the filling chamber – uncontrolled
spontaneous ignition possible!
1.) Close the vertical grate.
2.) First add smaller then larger split logs of increasing
length and fill up filling chamber as required – Fig.
54. Before closing the lighting door, check that there
is wood just in front of the ignition opening.
Note!
For reliable and efficient ignition, it is im-
portant that there is wood just in front of the
ignition opening.
3.) Close lighting door, filling door and cladding door.
„Ignition" displayed on InfoWIN – Fig. 55.
4.) Press Ignition button, „Instant", „With off period" and „Automatic" are shown on the display – Fig. 56.
5.) The arrow buttons select the desired type of ignition; the Choose button confirms the choice – Fig. 56.
Types of ignition:
„Instant":
„With off period": Pressing the + or – button changes the time in 15 min. steps and pressing save confirms
„Automatic":
With the „With off period" and „Automatic" types of ignition, the Cancel button can be used to cancel the „Ignition
ready" operating phase.
1 Only for LogWIN with automatic ignition (accessory).
The ignition phase begins immediately after selection.
this choice – Fig. 57.
The ignition phase only starts once the set time has elapsed and a heating request has
been generated by MESplus control or an external ignition request.
The ignition phase begins when there is a heating request from the MESplus control or an
external ignition request.
1

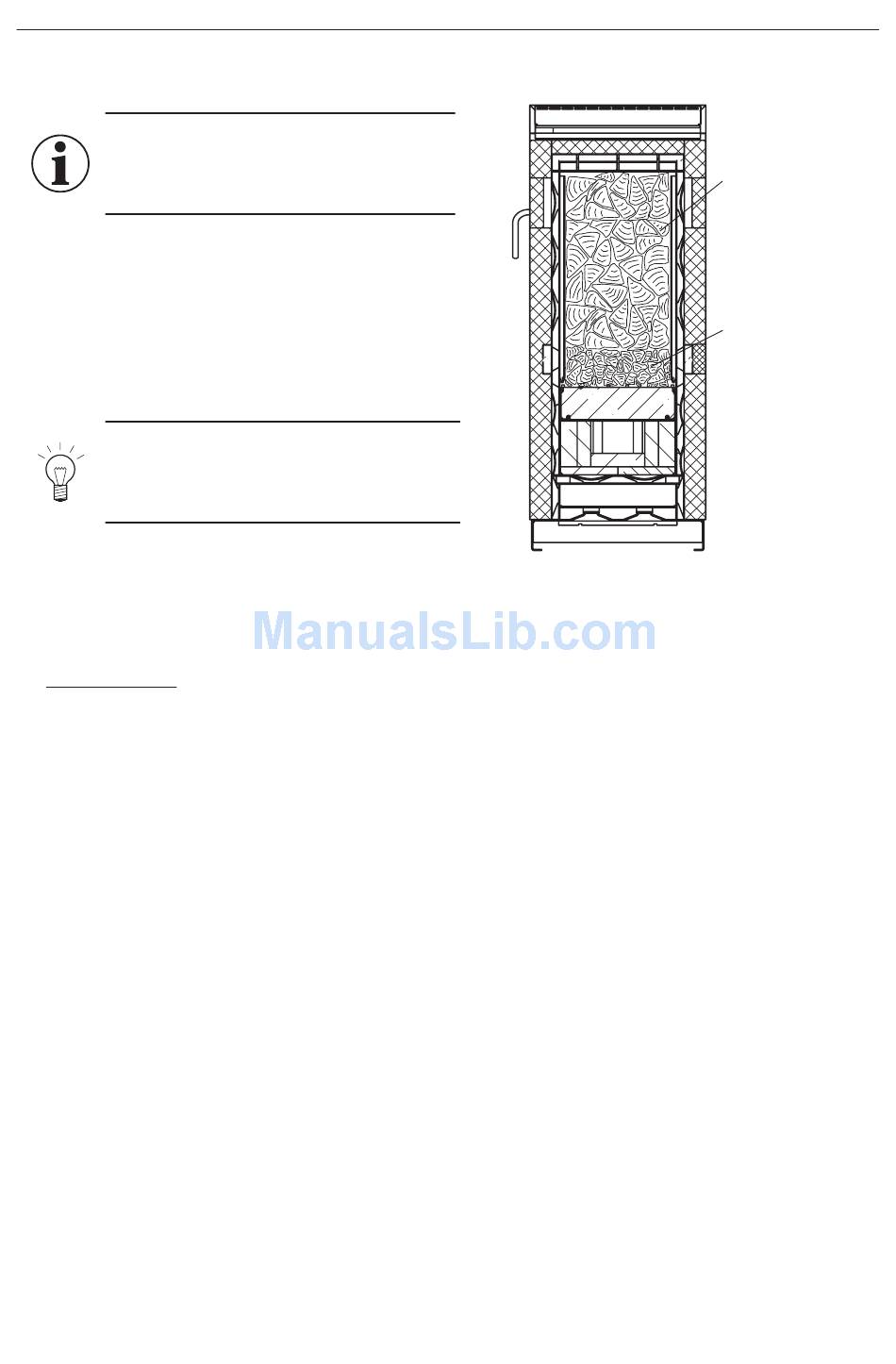

Fig. 54 Section through the filling chamber
22
Hardwood or softwood
logs edge length
8 – 15 cm
Hardwood or softwood
logs edge length
3 – 4 cm
