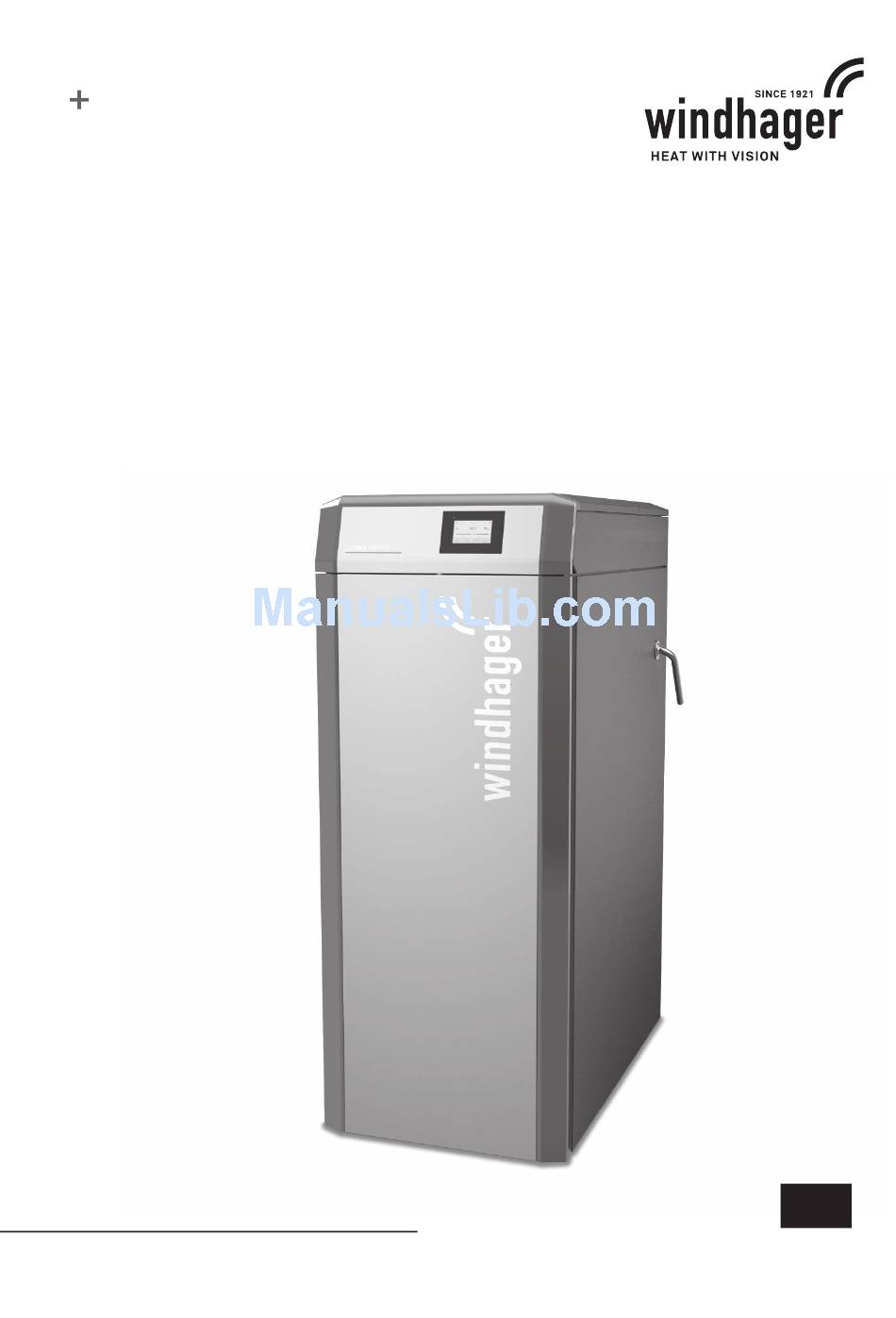

- Page 1 OPERATING MANUAL LOGWIN PREMIUM TOUCH WOOD GASIFICATION BOILER 05/2017 095176/02–v1.2.x...
-
Page 2: Table Of Contents
Table of contents Table of contents 1. Important information for system operators ..............4 General information ........................4 1.1.1 Manufacturer's obligations ............................4 1.1.2 Installer's obligations ..............................4 1.1.3 Operator's obligations ...............................4 1.1.4 Spare parts .................................5 1.1.5 Software ..................................5 Safety precautions ......................... 5 1.2.1 Caution symbols .................................5 1.2.2 General safety information ............................5 Sources of danger .......................... - Page 3 Table of contents 4. Emissions measurement ....................21 Preparation ..........................21 Heating ............................21 Measurement ..........................21 5. EC declaration of conformity ..................22...
-
Page 4: Important Information For System Operators
We would like to congratulate you on your new environmentally friendly boiler system. With the purchase of this high-quality product by Windhager, you have selected a system that provides more comfort and optimised fuel consump- tion while utilising an environmentally friendly means of saving resources. Your boiler was manufactured under strict ISO 9001-certified standards, was subjected to extensive tests and all its components are recyclable. -
Page 5: Spare Parts
Important information for system operators 1.1.4 Spare parts For spare parts, please contact the Customer Service partner or send an email to ersatzteil@at.windhager.com or phone on +43 (0) 6212/2341-268. 1.1.5 Software The software for the firing automates uses FreeRTOS. You can find the FreeRTOS source code as well as its licensing terms on the website www.FreeRTOS.org. -
Page 6: Sources Of Danger
Important information for system operators Sources of danger 1.3.1 Power failure (or if the blower is not running) There is an increased risk of deflagration when opening the filling door if the blower WARNING is not running. A self-test is performed following a power failure and then operation is continued automatically. -
Page 7: Start-Up And Maintenance
Start-up and maintenance Have Windhager Customer Service or one of our customer service partners put your new boiler into service. In this way, all functions of the new unit will be thoroughly checked; you will also benefit from the detailed information provided by the system installer. -
Page 8: Operation
4 ..Boiler cover at rear – the cleaning cover for coasting surfaces is underneath 5 ... Lever for cleaning heating surfaces Fig. 2 LogWIN Premium Touch 6 ..Cladding door switch 7 ... Filling door hook catch 8 ..Filling door 9 .. -
Page 9: Control Panel
LED stripe InfoWIN Touch Fig. 4 LogWIN Premium Touch control panel Check before first heating a) System pressure (heating water pressure): The system must be filled and vented. With the system cold, pressure should be at least 1.0 bar (maximum 1.8 bar). If you have any questions, your installer will gladly answer them. -
Page 10: Preparing Heating Mode
Operation Important note before starting or replenishing fuel: Do not start or replenish fuel unless adequate heat consumption is assured, i.e.: – Check the charge status of the buffer tank beforehand (see InfoWIN Touch operating manual). – Do not heat up or replenish fuel if this is already showing 70 %. –... -
Page 11: Starting By Hand (No Automatic Ignition)
Operation 2.3.2 Starting by hand (no automatic ignition) 1.) Put in a layer of dry kindling and on top of this screwed up paper/cardboard The burnthrough opening must remain clear. 2.) First add smaller then larger split logs of increasing length and fill up filling chamber as required – Fig. 9. Note! To ensure clean combustion and quick ignition, fill the filling chamber at least halfway. -
Page 12: Starting With Automatic Ignition
Operation 2.3.3 Starting with automatic ignition Before filling, ensure that there are no embers in the filling chamber – uncontrolled CAUTIO N spontaneous ignition possible! 1.) Close the vertical grate. 2.) First add smaller then larger split logs of increasing length and fill up filling chamber as required – Fig. 10. Before closing the lighting door, check that there is wood just in front of the ignition opening –... - Page 13 Operation LogWIN 33 °C Information level Start procedure Fig. 13 Set ignition Set ignition Set ignition Ignite now With off period Ignite automatically Ignite now With off period Ignite automatically Ignite now With off period Ignite automatically Fig. 14 Fig. 15 Fig.
-
Page 14: Replenishing Fuel - Continuing Heating Mode
Operation 2.3.4 Replenishing fuel – continuing heating mode WARNING Open the filling door carefully (due to the risk of deflagration). 1.) Press the lever for cleaning heating surfaces around 5–10 times for each fill. 2.) Open the filling door as far as the stop against the catch, wait at least 15 seconds to allow low-temperature carburisation gases to be sucked away. -
Page 15: Care, Cleaning And Maintenance
Care, cleaning and maintenance Care, cleaning and maintenance Cladding: Clean the boiler cladding with a moist cloth as needed. In the event of heavy soiling, use soapy water or diluted suds (do not use caustic chemicals or sharp cleaning instruments). Coasting surfaces: Every millimetre of soot on the coasting surfaces means about 5 % more fuel consumption. -
Page 16: Weekly
Care, cleaning and maintenance Weekly 3.2.1 Removing the ash Recommended cleaning implement: Scraper – Attach ash pan at height of lighting door (central door) in the intended hook-in plate – Fig. 30. Open lighting door and vertical grate and sweep most of the remaining ash from the filling chamber into the ash pan. –... -
Page 17: Blower Box, Blower Wheel
Care, cleaning and maintenance 3.3.2 Blower box, blower wheel Before cleaning the blower box and blower wheel, de-energise the boiler! Disconnect DANGER the power plug at the rear – Fig. 33. Recommended cleaning implement: Spatula, brush and vacuum cleaner – Disconnect the blower plug – Fig. 34. –... -
Page 18: Exhaust Pipe
Care, cleaning and maintenance 3.3.3 Exhaust pipe Recommended cleaning implement: Spatula, cleaning brush, soft cloth – Clean the exhaust pipe leading to the flue through the cleaning opening provided in the exhaust pipe. – Use soft cloth to clean flue gas sensor (accessories). Watch out for the sensors in the flue outlet when cleaning the exhaust pipe. -
Page 19: Draught Limiter (Swinging Draught Flap)
Care, cleaning and maintenance 3.3.5 Draught limiter (swinging draught flap) Recommended cleaning implement: Spatula If a draught limiter is fitted (by customer in flue or exhaust pipe), check this for ease of movement and if necessary clean or have adjusted by a specialist. 3.3.6 Filling, lighting and ash door Recommended cleaning implement: Spatula –... -
Page 20: Primary Air And Secondary Air Routes
Care, cleaning and maintenance 3.3.8 Primary air and secondary air routes These parts are also checked and cleaned during maintenance by Windhager Customer Service or the customer service partner. Recommended cleaning implement: Spatula, vacuum cleaner – Remove hook-in plates from both sides of filling chamber and check the primary air openings under them. Clear if necessary –... -
Page 21: Emissions Measurement
Emissions measurement Emissions measurement Preparation – Complete boiler cleaning – see Section 3. – After the boiler cleaning process, let 4 or 5 burning cycles take place before measuring the exhaust gas. – Prepare the fuel – see Section 1.4 –... -
Page 22: Ec Declaration Of Conformity
EC declaration of conformity For the LogWIN Premium series of wood gasification boilers for solid fuels (Machinery Directive 2006/42/EC, Appendix II A) Manufacturer: WINDHAGER ZENTRALHEIZUNG Technik GmbH Anton-Windhager-Strasse 20 A-5201 Seekirchen Name and address of the person authorised to compile the technical documentation: Dipl.-Ing. -
Page 24: Warranty Conditions
Deutzring 2 not covered by the warranty. Further, the warranty shall be void if equip- D-86405 Meitingen near Augsburg ment other than that provided by Windhager is installed. The special war- T +49 8271 8056 0 F +49 8271 8056 30 ranty conditions for your system are available in the "Warranty conditions"...
