SIP User's Manual

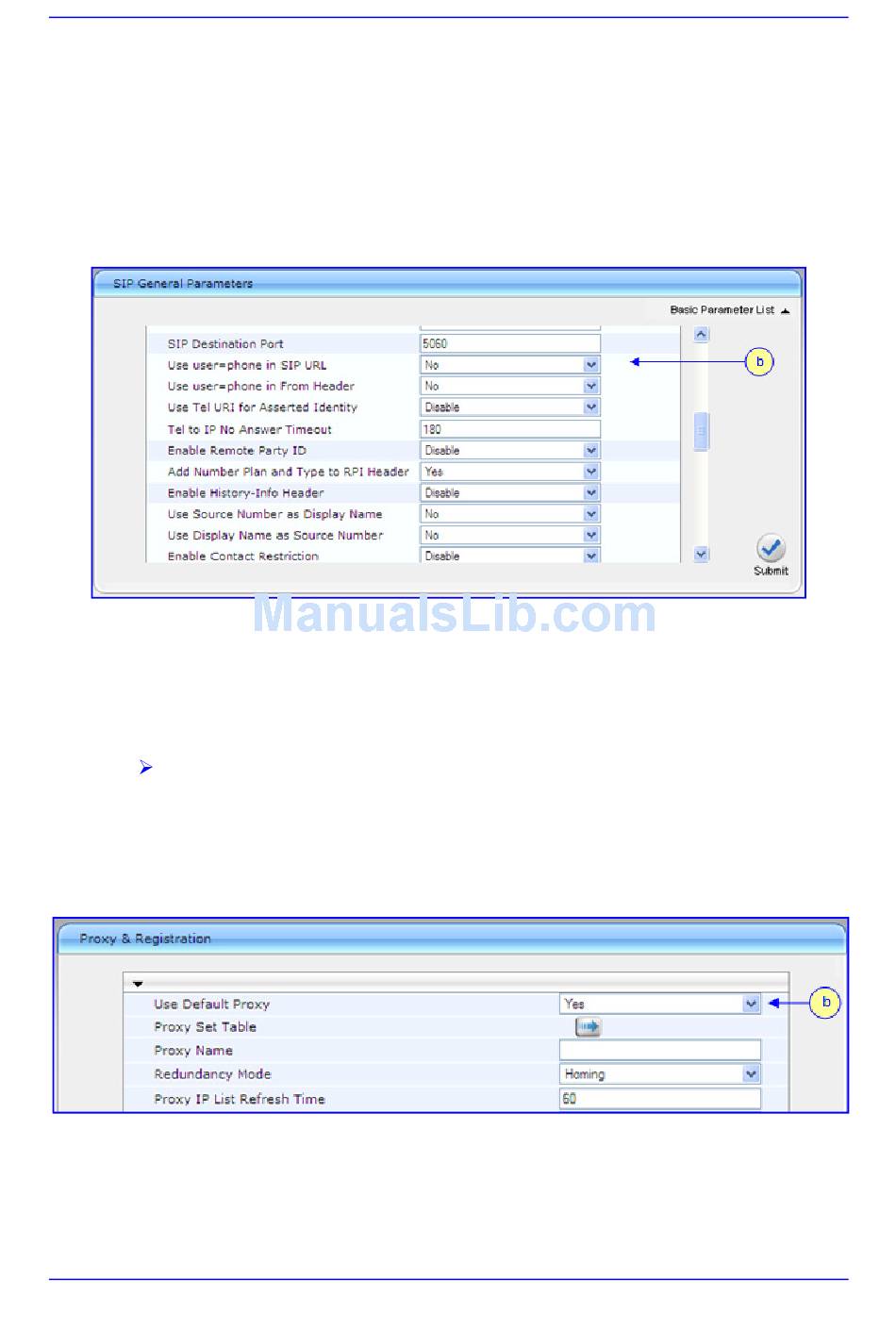

2. Disable use of user=phone in SIP URL:
a. Open the 'SIP General Parameters' page (Configuration tab > VoIP menu > SIP
Definitions submenu > General Parameters).
b. From the 'Use user=phone in SIP URL' drop-down list, select 'No'. This instructs
the Gateway application to not use user=phone in the SIP URL and therefore,
REGISTER and INVITE messages use SIP URI. (By default, REGISTER
messages are sent with sip uri and INVITE messages with tel uri.)
c. Click Submit.
8.3.3.4.2 Gateway with SAS Redundant Mode
The procedure below describes how to configure the Gateway application with SAS
redundant mode.
To configure Gateway application with SAS redundant mode:
1. Define the proxy servers for the Gateway application:
a. Open the 'Proxy & Registration' page (Configuration tab > VoIP menu > SIP
Definitions submenu > Proxy & Registration).
b. From the 'Use Default Proxy' drop-down list, select 'Yes'.
Figure 8-43: Enabling Proxy Server for Gateway Application
c. Click Submit.
d. Open the 'Proxy Sets Table' page (Configuration tab > VoIP menu > Control
Network submenu > Proxy Sets Table).
e. From the 'Proxy Set ID' drop-down list, select '0'.
f. In the first 'Proxy Address' field, enter the IP address of the external proxy server.
Version 6.2

Figure 8-42: Disabling user=phone in SIP URL

293
8. IP Telephony Capabilities
February 2011
