Arising Star.

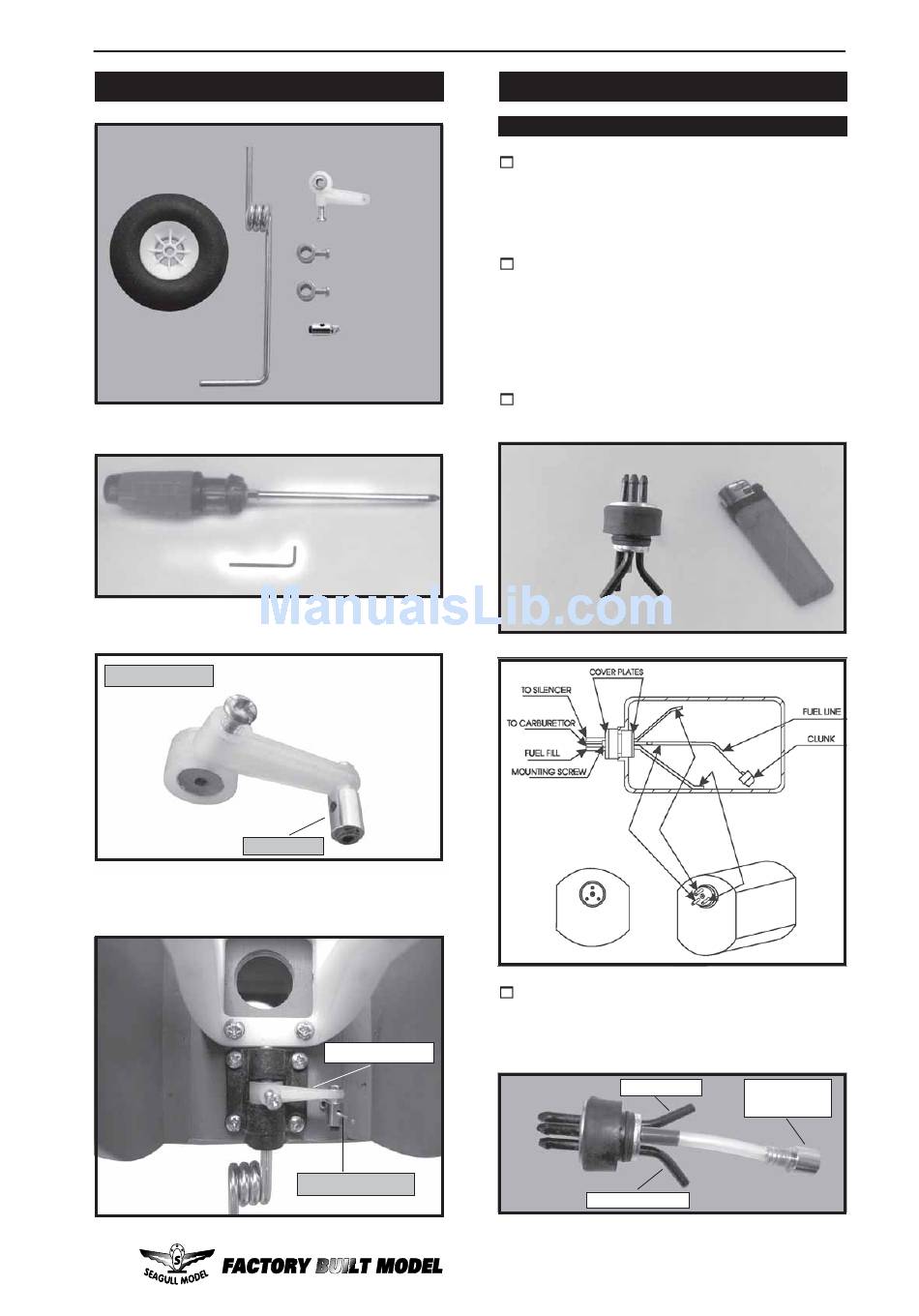

NOSE GEAR INSTALLATION.

TOOLS REQUIRED
Installing steering arm as follow.
Steering arm.
Connector.
Adjust the nose gear steering arm until the
arm is parallel with the fire wall.
Steering arm.
Pushrod wire.
Instruction Manual.
FUEL TANK.

INSTALLING THE STOPPER ASSEMBLY.

1) Using a modeling knife, carefully cut
off the rear portion of one of the two nylon tubes
leaving 1/2" protruding from the rear of the
stopper. This will be the fuel pick up tube.
2) Using a modeling knife, cut one length
of silicon fuel line (not included) to 2-1/4" long.
Connect one end of the line to the weighted
fuel pickup and the other end to the nylon
pickup tube.
3) Carefully bend the second nylon tube
up at a 45º angle. This tube is the vent tube.
4) Carefully heat the vent tube using a
heat gun or lighter to permanently set the
angle of the tube.
Vent tube.
Fuel Fill Tube.
Fuel Pickup
Tube.
