Arising Star.

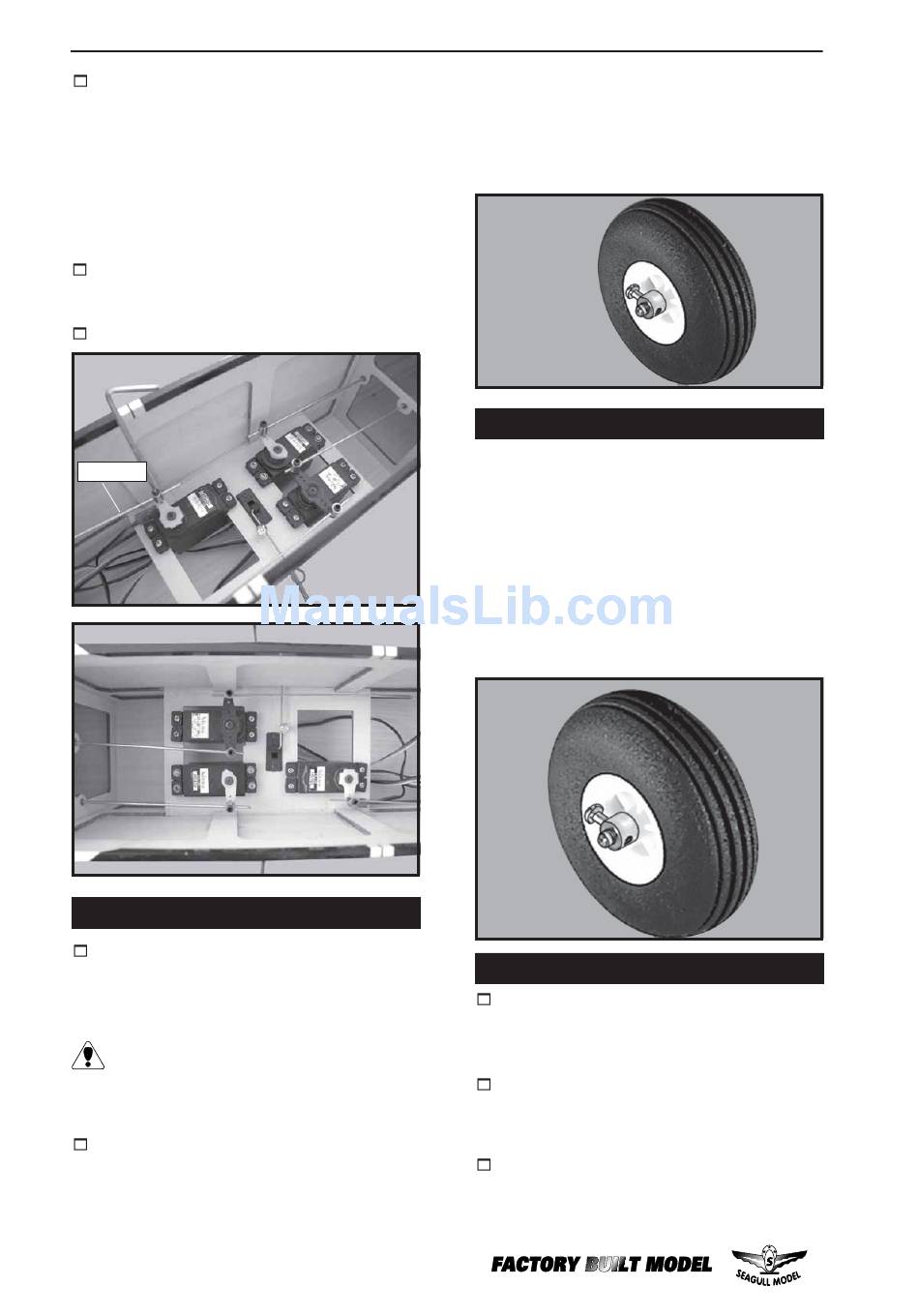

2) Install the rubber grommets and brass
collets onto the throttle servo. Test fit the servo
into the aileron servo mount.
Because the size of servos differ, you may
need to adjust the size of the precut opening
in the mount. The notch in the sides of the
mount allow the servo lead to pass through.
3) Secure the servos with the screws pro-
vided with your radio system.
4) Install the pushrod throttle.
Throttle.

INSTALLING THE MAIN GEAR WHEELS.

1) Slide one wheel collar with 3mm x
6mm set screw onto each axle. Push the
wheel collars on as far as they will go and
tighten the set screws.
Be careful not to overtighten the set
screws. Overtightening may cause the
threads to strip.
2) Slide one 60mm diameter wheel onto
each axle and push them up against the wheel
collars. Slide the remaining wheel collars with
3mm x 6mm set screws onto the axles. Push
them up against the wheels and tighten the
14
Instruction Manual.
set screws. The wheels should spin free and
not bind in any way. If they do bind, loosen the
set screws in the outer wheel collars and move
the collars out a small amount. Retighten the
set screws.

INSTALLING THE NOSE GEAR WHEEL.

Slide one 60mm diameter wheel onto the
axle and push them up against the wheel col-
lars. Slide the remaining wheel collars with
3mm x 6mm set screws onto the axles. Push
them up against the wheels and tighten the
set screws. The wheels should spin free and
not bind in any way. If they do bind, loosen the
set screws in the outer wheel collars and move
the collars out a small amount. Retighten the
set screws.

INSTALLING THE RECEIVER AND BATTERY.

1) Plug the four servo leads and the switch
lead into the receiver. Plug the battery pack
lead into the switch also.
2 Wrap the receiver and battery pack in
the protective foam rubber to protect them
from vibration.
3) Position the battery pack in the fuel
tank compartment and the receiver just be-
hind the fuel tank . Use extra foam pieces to
hold them in position.
