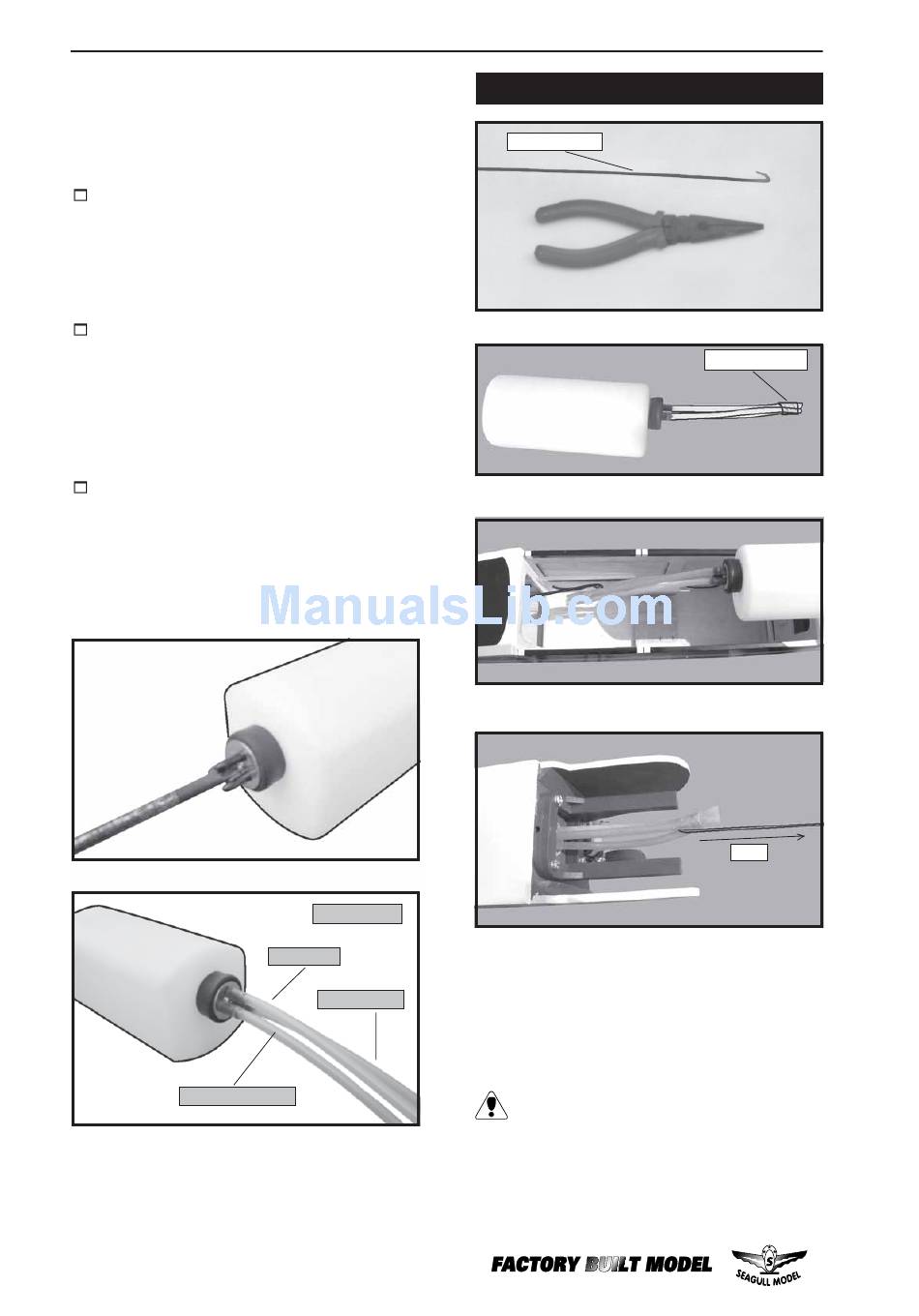

Arising Star.
When the stopper assembly is installed in the
tank, the top of the vent tube should rest just
below the top surface of the tank. It should
not touch the top of the tank.
5) Test fit the stopper assembly into the
tank. It may be necessary to remove some of
the flashing around the tank opening using a
modeling knife. If flashing is present, make
sure none falls into the tank.
6) With the stopper assembly in place,
the weighted pickup should rest about 3/8"
away from the rear of the tank and move freely
inside the tank. The top of the vent tube should
rest just below the top of the tank. It should
not touch the top of the tank.
7) When satisfied with the alignment of
the stopper assembly tighten the 3mm x 20mm
machine screw until the rubber stopper ex-
pands and seals the tank opening. Do not
overtighten the assembly as this could cause
the tank to split.
Fuel pickup tube.
8
Top of tank.
Vent tube.
Fuel fill tube.
Instruction Manual.

INSTALLING THE FUEL TANK.

Pushrod wire.
Use pieces off foam rubber to hold the
tank in place. Be careful the tank or the foam
doesn't interfere with the pushrods. Cut the
fuel line in the middle of the loop. Keep track
of which one is for the fuel pick-up and which
one is for the muffler pressure.
Blow through the tubes to make sure the
lines have not become kinked during
installation.
Plastic tape.
Pull.
