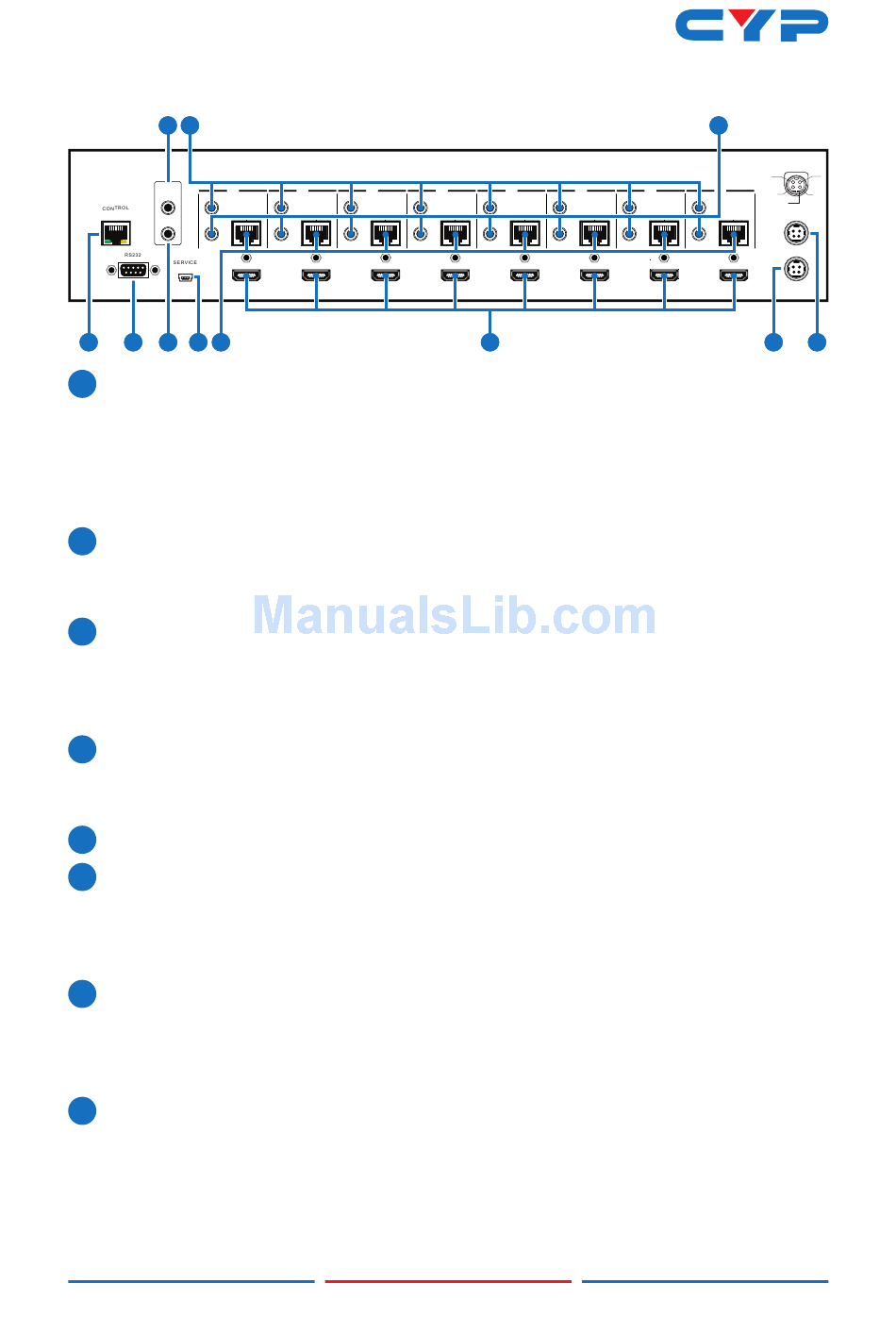

6.2 Rear Panel

3 6
ALL
A
IR OUT IR OUT
CAT5e/6 OUT
IR IN IR IN
HDMI IN
1 2 4 5 8
1 CONTROL: This port is the link for Telnet or Web GUI controls, connect
to an active Ethernet link with an RJ45 terminated cable (for further
details on IP control, please refer to sections 6.8 & 6.9).
Warning: Please do not connect this port directly to the PC/Laptop as the
Telnet function will not work.
2 RS-232: Connect to a PC or control system with D-Sub 9-pin cable
for control of the matrix via RS-232 commands (please refer to
Section 6.7 for a list of commands).
3 ALL IR OUT: Connect to the IR blaster for IR signal transmission to the
source devices. Place the IR blaster in direct line-of-sight of the
equipment to be controlled. All signals received from the display
side will be relayed to the source devices.
4 ALL IR IN: Connect to the IR extender for IR signal reception. Ensure
that the remote being used is within the direct line-of-sight of the IR
extender. It will transmit all signals received through the IR ALL OUT.
5 SERVICE: Manufacturer use only.
6 IR OUT A~H: Connect to the IR blasters for IR signal transmission.
Place the IR blaster in direct line-of-sight of the equipment to be
controlled. It will transmit the IR signal received from the receiver
side according to the selected input.
7 IR IN 1~8: Connect to the IR extenders for IR signal reception. Ensure
that the remote being used is within the direct line-of-sight of the
IR extender. It will send out the IR signal received to the selected IR
OUT (A-H).
8 CAT5e/6/7 OUT A~H: Connect the CAT outputs to the CAT input port
of the receiver units with a single CAT5e/6/7 cable for HDMI Audio/
Video and IR control signal transmission.
Warning: Please do not connect the CAT5e/6/7 outputs to the
receiver's LAN port.
B C
IR OUT IR OUT IR OUT
CAT5e/6 OUT CAT5e/6 OUT
IR IN IR IN
1 2 3
HDMI IN HDMI IN
D E F
IR OUT IR OUT
CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT
IR IN IR IN IR IN
4 5
HDMI IN HDMI IN
9
7
G H
IR OUT IR OUT
CAT5e/6 OUT CAT5e/6 OUT
IR IN IR IN
6 7 8
HDMI IN HDMI IN HDMI IN
GND GND
2 1
4 3
V+ + V
GND
POE 24V
MAIN 24V
10 11
