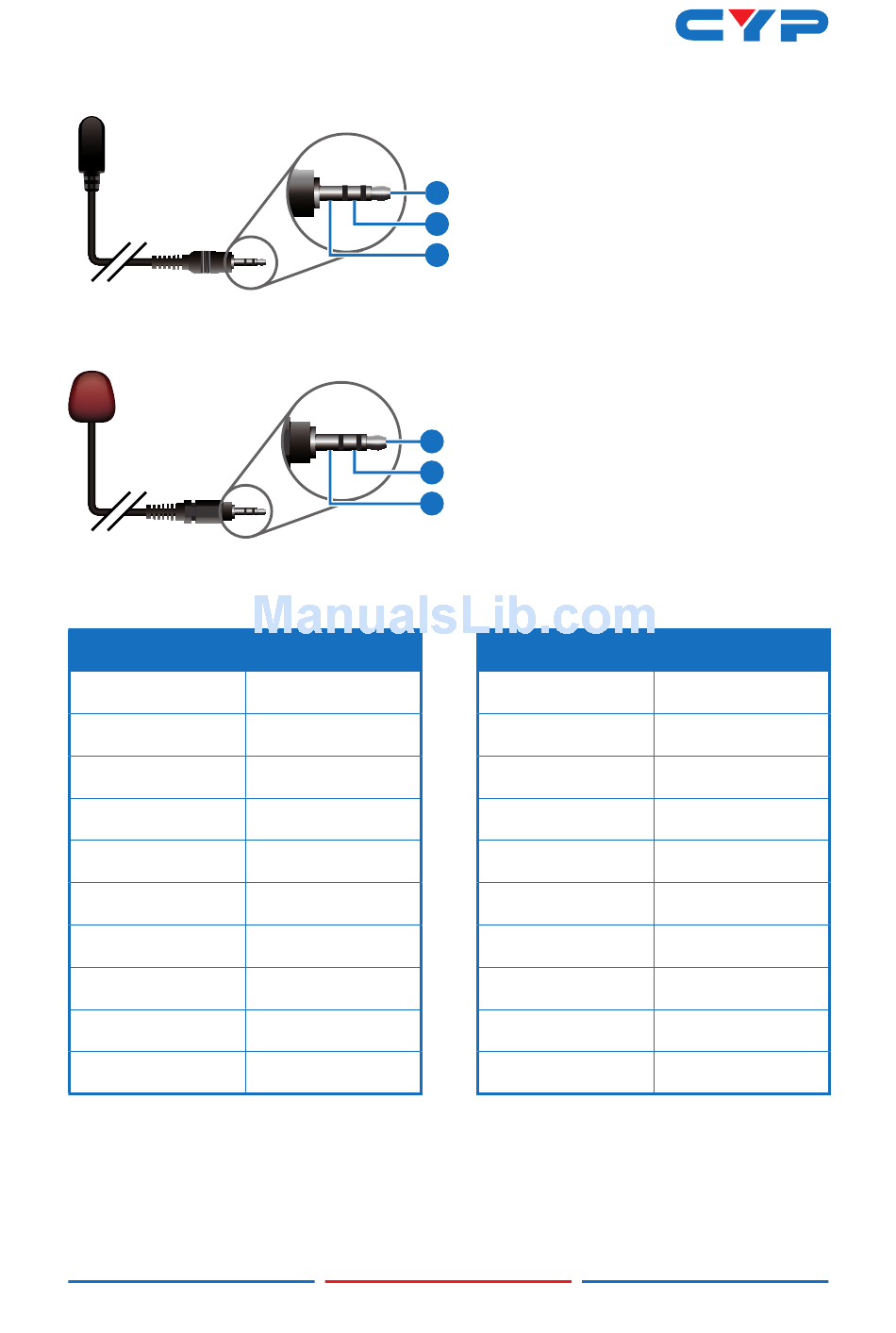

6.5 IR Cable Pin Assignment

IR Blaster
IR Extender

6.6 RS-232 Pin Assignment

HDMI MATRIX
PIN
1
2
3
4
5
6
7
8
9
Baud Rate: 19200 bps
Data Bit: 8-bit
Parity: None
Stop Bit: 1-bit
Flow Control: None
1
2
3
1
2
3
Assignment
NC
Tx ►
Rx ◄
NC
GND
NC
NC
NC
NC
Power 5 V
IR Blaster Signal
NC
IR Signal
Power 5 V
Ground
REMOTE CONTROL CONSOLE
PIN
1
2
3
4
5
6
7
8
9
Assignment
NC
Rx
Tx
NC
GND
NC
NC
NC
NC
6
