- Page 1 CMSI-4H4CV/CMSI-8H8CV HDBaseT™ 4×4/8×8 HDMI Matrix over CAT5e/6/7 Operation Manual Operation Manual...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......2 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 Side Panel .........5 6.4 Remote Control ........5 6.5 IR Cable Pin Assignment....6 6.6 RS-232 Pin Assignment .....7... -
Page 6: Introduction
1. INTRODUCTION The HDBaseT™ 4 by 4 or 8 by 8 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 1080p Full HD and 1920x1200@60Hz), multi-channel digital audio and control via IR, RS- 232 or Telnet from four or eight high definition sources to four or eight outputs over a single CAT5e/6/7 cable (up to 100m) for each output. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI equipped source devices, connect with HDMI cables or DVI equipped source, connect with DVI to HDMI cables • HDMI equipped displays (TVs or monitors) or HDMI equipped AV receivers, connect with HDMI cables • Industry standard CAT5e/6/7 cables •... -
Page 8: Operation Controls And Functions

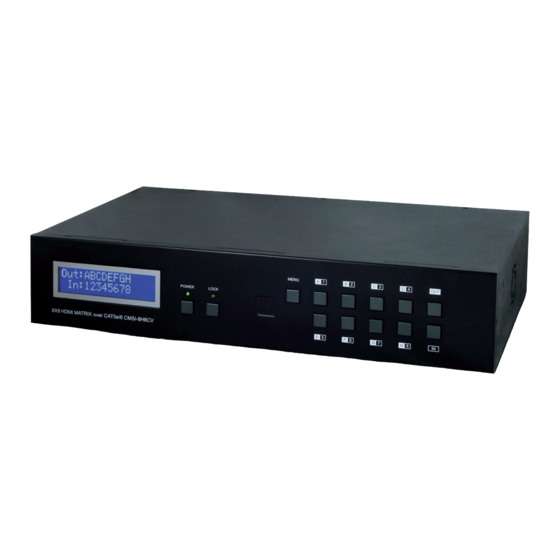

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel MENU POWER LOCK 8X8 HDMI MATRIX over CAT5e/6 CMSI-8H8CV LCM: Displays the setting information of each input and output setting. POWER: Press this button to power the device on/off. The LED will illuminate green when the power is on, red when it is in 'Standby' mode. -
Page 9: Rear Panel
6.2 Rear Panel IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT POE 24V IR IN IR IN IR IN IR IN... -
Page 10: Side Panel
Warning: Please do not connect the CAT5e/6/7 cable into the receiver's LAN port. 6.3 Side Panel Fan Ventilator: These are air ventilation areas, DO NOT block these areas or cover it with any object. Please allow adequate space around the unit for air circulation. 6.4 Remote Control POWER: Press this button to switch on the device or set it to... -
Page 11: Ir Cable Pin Assignment
6.5 IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power 5 V Grounding... -
Page 12: Rs-232 Pin Assignment
6.6 RS-232 Pin Assignment CMSI-8H8CV/CMSI-4H4CV Remote Control Console Assignment Assignment Baud Rate: 19200 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None... -
Page 13: Rs-232 And Telnet Commands
6.7 RS-232 and Telnet Commands Command Description A1~A8 Switch Output A to 1~8 B1~B8 Switch Output B to 1~8 C1~C8 Switch Output C to 1~8 D1~D8 Switch Output D to 1~8 E1~E8 Switch Output E to 1~8 F1~F8 Switch Output F to 1~8 G1~G8 Switch Output G to 1~8 H1~H8... -
Page 14: Telnet Control
6.8 Telnet Control Before attempting to use the telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to active networks. Note: Please do not connect both the Matrix and the PC/Laptop with a single CAT5e/6 cable as it will not access the telnet function. - Page 15 Once in the command line interface (CLI) type "telnet", a space, then the IP address of the unit you wish to control, a space and "23", then hit enter. Note: The IP address of the Matrix can be displayed on the device's LCM monitor by pressing the Menu button twice.
-
Page 16: Connection Diagram
7. CONNECTION DIAGRAM ZONE ZONE ZONE ZONE Power Power Power Power Link Link Link Power Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 Extender Blaster RS232 Out CAT5e/6 In Extender Blaster RS232 Out... - Page 17 ZONE ZONE ZONE Displays HDMI Outputs IR Out/In Receiver Units Power Power Power Link Link Link Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 RS232 Out CAT5e/6 In Extender Blaster RS232 Out CAT5e/6 In Extender Blaster RS232 Out CAT5e/6 In Extender Blaster...
-
Page 18: Specifications
8. SPECIFICATIONS Video Bandwidth 255 MHz/6.75 Gbps Input Ports 4H4CV: 4×HDMI, 5×IR Extender, 1×RS- 232, 1×LAN, 1×Mini USE Type B (For firmware updated only) 8H8CV: 8×HDMI, 9×IR Extender, 1×RS- 232, 1×LAN, 1×Mini USE Type B (For firmware updated only) Output Ports 4H4CV: 4×CAT5e/6/7, 5×IR Blaster 8H8CV: 8×CAT5e/6/7, 9×IR Blaster ESD Protection... -
Page 19: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Digital Theater System Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Liquid Crystal Module Universal Serial Bus Video Graphics Array WUXGA Widescreen Ultra Extended Graphics Array... - Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20120518 MPM-CMSI8H8CV...
