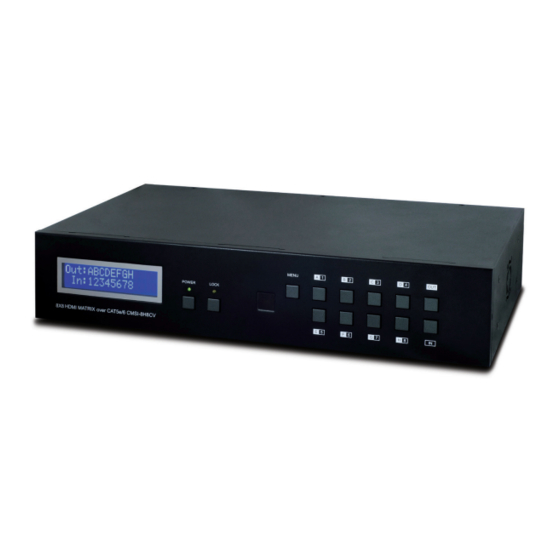

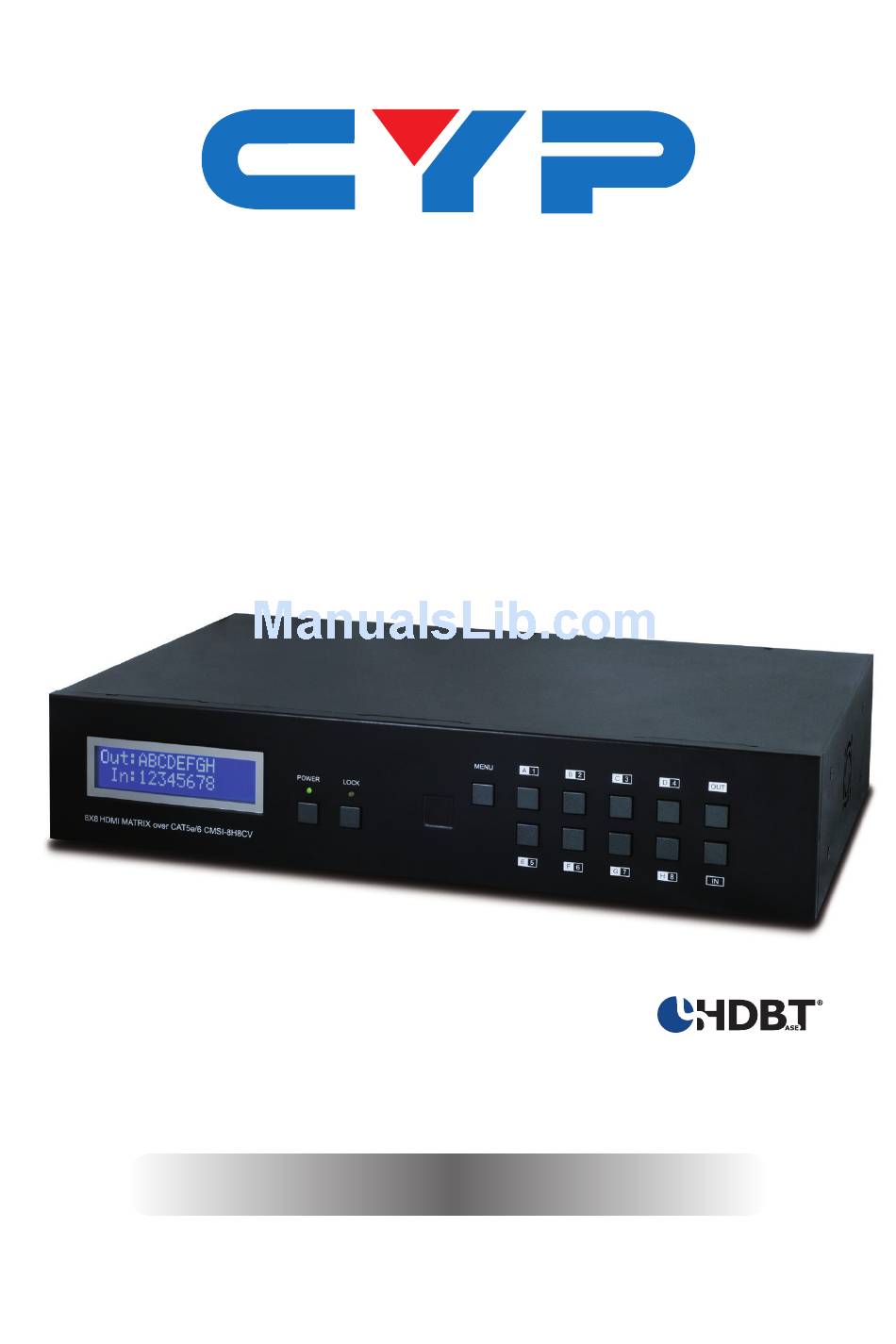

- Page 1 CMSI-8H8CV HDBaseT™ 8×8 HDMI Matrix over CAT5e/6/7 Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......2 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........4 6.3 Side Panel ..........5 6.4 Remote Control .........5 6.5 IR Cable Pin Assignment ....6 6.6 RS-232 Pin Assignment ......6... -
Page 6: Introduction
1. INTRODUCTION The HDBaseT™ 8 by 8 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 1080p Full HD and 1920 × 1200@60Hz) and multi-channel digital audio from eight high definition sources to eight outputs over a single CAT5e/6/7 cable (up to 100m) for each output. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI equipped source devices, connect with HDMI cables or DVI equipped source, connect with DVI to HDMI cables • HDMI equipped displays (TVs or monitors) or HDMI equipped AV receivers, connected with HDMI cables • Industry standard CAT5e/6/7 cables •... -
Page 8: Operation Controls And Functions
6.1 Front Panel MENU POWER LOCK 8X8 HDMI MATRIX over CAT5e/6 CMSI-8H8CV LCM: Displays the setting information of each input and output setting. POWER: Press this button to power the device on/off. The LED will illuminate green when the power is on, red when it is in 'Standby' mode. -
Page 9: Rear Panel
6.2 Rear Panel IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT POE 24V IR IN IR IN IR IN IR IN... -
Page 10: Side Panel
HDMI IN 1~8: Connect to the HDMI source devices such as a DVD player or a Set-top Box with HDMI cables or DVI to HDMI cables. DC 24V: Connect the 24 V DC power supply to the unit and plug the adaptor into an AC outlet. -
Page 11: Ir Cable Pin Assignment
6.5 IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power 5 V Ground 6.6 RS-232 Pin Assignment HDMI MATRIX REMOTE CONTROL CONSOLE Assignment Assignment ► ◄ Baud Rate: 19200 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None... -
Page 12: Rs-232 And Telnet Commands
6.7 RS-232 and Telnet Commands COMMAND DESCRIPTION A1~A8 Switch Output A to 1~8 B1~B8 Switch Output B to 1~8 C1~C8 Switch Output C to 1~8 D1~D8 Switch Output D to 1~8 E1~E8 Switch Output E to 1~8 F1~F8 Switch Output F to 1~8 G1~G8 Switch Output G to 1~8 H1~H8... - Page 13 Note: Commands will not be executed unless followed by a carriage return. Commands are case-insensitive. When the Telnet connection is idle for 10 minutes it will be automatically disconnected. The TV EDID setting will always follow output port 1's EDID setting regardless of the output change.
-
Page 14: Telnet Control
6.8 Telnet Control Before attempting to use the telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to the same active networks. To access the telnet control in Windows 7, click on the 'Start' menu and type "cmd"... - Page 15 Once in the command line interface (CLI) type "telnet", then the IP address of the unit and "23", then hit enter. Note: The IP address of the Matrix can be displayed on the device's LCM monitor by pressing the Menu button twice. This will bring us into the device which we wish to control.
-
Page 16: Web Gui Control
6.9 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type the device's IP address on the web address entry bar. The browser will display the device's status, control and User setting pages. - Page 17 Clicking on the 'User Setting' tab allows you to reset the IP configuration. The system will ask for a reboot of the device when any of the settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.
-
Page 18: Connection Diagram
7. CONNECTION DIAGRAM ZONE ZONE ZONE ZONE Power Power Power Power Link Link Link Power Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 Extender Blaster RS232 Out Extender Blaster RS232 Out Extender Blaster RS232 Out CAT5e/6 In... - Page 19 ZONE ZONE ZONE Displays HDMI Outputs IR In/Out Receiver Units Power Power Power Link Link Link Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 Extender Blaster RS232 Out Extender Blaster RS232 Out Extender Blaster RS232 Out Extender Blaster...
-
Page 20: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 225 MHz/6.75 Gbps Input Ports 8×HDMI, 9×IR Extender, 1×RS-232, 1×RJ- 45 (Control), 1×Mini USB Type B (For firmware updated only) Output Ports 8×CAT5e/6/7, 9×IR Blaster IR Frequency 30~50 kHz Supported Resolutions HDTV: 480i~1080p@50/60 & 1080p@24 PC: VGA~WXGA HDMI Input Cable Length 15 m (1080p@8-bit) -
Page 21: Cat5E/6/7 Cable Specification
8.2 CAT5e/6/7 Cable Specification CABLE RANGE PIXEL VIDEO SUPPORTED VIDEO CLOCK DATA TYPE RATE RATE CAT5e/6/7 100 m ≤225 MHz ≤5.3 Gbps Up to 1080p, 60 Hz, (HD Video) 36 bits, 3D (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock). - Page 24 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20120518 MPM-CMSI8H8CV...
