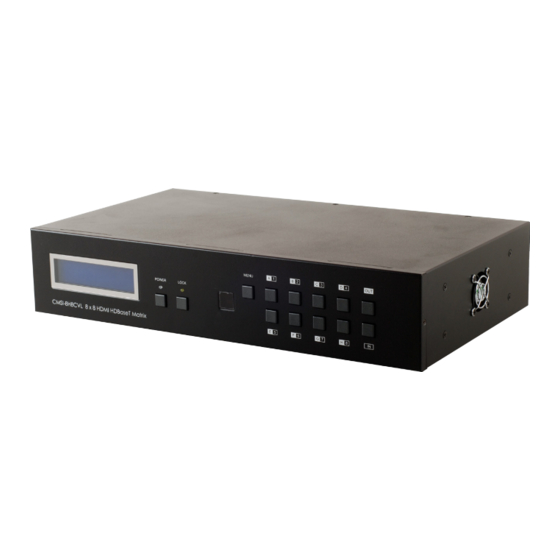

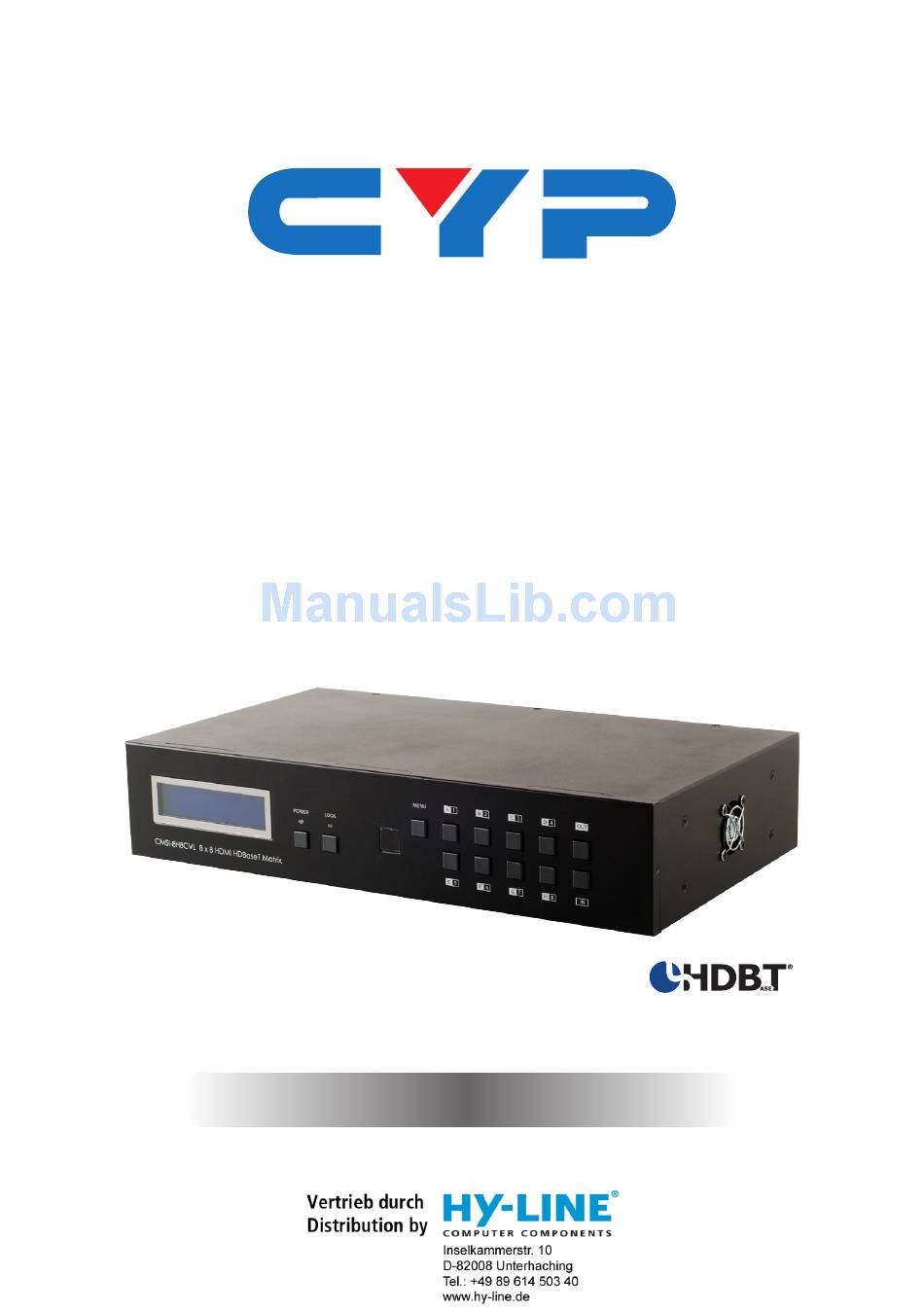

- Page 1 CMSI-8H8CVL HDBaseT™ Lite 8×8 HDMI Matrix over CAT5e/6/7 Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......2 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........4 6.3 Side Panel ..........5 6.4 Remote Control .........5 6.5 IR Cable Pin Assignment ....6 6.6 RS-232 Protocols ........7... -
Page 6: Introduction
1. INTRODUCTION The HDBaseT™ Lite 8 by 8 HDMI Matrix over CAT5e/6/7 supports the transmission of video (resolutions up to 1080p Full HD and 1920x1200@60Hz), multi-channel digital audio and control via IR, RS- 232, Telnet or Web GUI from eight high definition sources to eight outputs over a single CAT5e/6/7 cable (up to 60m) for each output. -
Page 7: System Requirements
4. SYSTEM REQUIREMENTS • HDMI equipped source devices, connect with HDMI cables or DVI equipped source, connect with DVI to HDMI cables • HDMI equipped displays (TVs or monitors) or HDMI equipped AV receivers, connect with HDMI cables • Certified CAT5e/6/7 cables •... -
Page 8: Operation Controls And Functions
6.1 Front Panel MENU POWER LOCK CMSI-8H8CVL 8 x 8 HDMI HDBaseT Matrix LCM: Displays the setting information of each input and output setting. POWER: Press this button to power the device on/off. The LED will illuminate green when the power is on, red when it is in 'Standby' mode. -
Page 9: Rear Panel
6.2 Rear Panel IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT IR OUT CONTROL CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT CAT5e/6 OUT IR IN IR IN IR IN IR IN... -
Page 10: Side Panel
6.3 Side Panel Fan Ventilator: These are air ventilation areas, DO NOT block these areas or cover it with any object. Please allow adequate space around the unit for air circulation. 6.4 Remote Control POWER: Press this button to switch on the device or set it to standby mode. -
Page 11: Ir Cable Pin Assignment
6.5 IR Cable Pin Assignment IR Blaster Power 5 V IR Blaster Signal IR Extender IR Signal Power 5 V Grounding... -
Page 12: Rs-232 Protocols
6.6 RS-232 Protocols HDMI MATRIX REMOTE CONTROL CONSOLE Assignment Assignment Baud Rate: 19200 bps Data Bit: 8-bit Parity: None Stop Bit: 1-bit Flow Control: None... -
Page 13: Rs-232 And Telnet Commands
6.7 RS-232 and Telnet Commands COMMAND DESCRIPTION A1~A8 Switch Output A to 1~8 B1~B8 Switch Output B to 1~8 C1~C8 Switch Output C to 1~8 D1~D8 Switch Output D to 1~8 E1~E8 Switch Output E to 1~8 F1~F8 Switch Output F to 1~8 G1~G8 Switch Output G to 1~8 H1~H8... -
Page 14: Telnet Control
6.8 Telnet Control Before attempting to use the Telnet control, ensure that both the Matrix (via the LAN/Control port) and the PC/Laptop or control system being used are connected to the same active network. To access the Telnet control in Windows 7, click on the 'Start' menu and type 'cmd' in the Search Field then press Enter (see below for reference). - Page 15 Once in the Command Line Interface (CLI) type 'telnet' along with the IP address of the unit you wish to control and '23' then hit Enter (see below for reference). This will bring us into the device which we wish to control.
-
Page 16: Web Gui Control
6.9 Web GUI Control On a PC/Laptop or control system that is connected to the same active network as the Matrix, open a web browser and type device's IP address on the web address entry bar. The browser will display the device's status, and the control and user settings pages. - Page 17 Click on the 'User Setting' tab allows you to reset the IP configuration. The system will ask for a reboot of the device every time any of the settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.
-
Page 18: Connection Diagram
7. CONNECTION DIAGRAM ZONE ZONE ZONE ZONE Power Power Power Power Link Link Link Power Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 Extender Blaster RS232 Out CAT5e/6 In Extender Blaster RS232 Out CAT5e/6 In Extender Blaster... - Page 19 ZONE ZONE ZONE Displays HDMI Outputs IR In/Out Receiver Units Power Power Power Link Link Link Link IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 IR 1 IR 2 Extender Blaster RS232 Out CAT5e/6 In Extender Blaster RS232 Out CAT5e/6 In Extender Blaster...
-
Page 20: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 225 MHz/6.75 Gbps Input Ports 8×HDMI, 9×IR Extender, 1×RS-232, 1×RJ-45 (Control), 1×Mini USB Type B (For firmware updated only) Output Ports 8×CAT5e/6/7, 9×IR Blaster ESD Protection Human-body Model: ± 8kV (Air-gap discharge) ± 4kV (Contact discharge) Power Supply 24 V/6.25 A DC (US/EU standards, CE/FCC/ UL certified) -
Page 21: Cat5E/6/7 Cable Specification
8.2 CAT5e/6/7 Cable Specification LENGTH BANDWIDTH DATA RATE SUPPORTED VIDEO HD Video Up to Up to Up to 60 m 225 MHz 5.3 Gbps Up to 1080p@60 Hz/36-bit, 3D (data rate lower than 5.3 Gbps or bandwidth below 225 MHz). Ultra HD Video Up to Greater... - Page 24 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130123 MPM-CMSI8H8CVL...
