- Page 1 CMSDI-164/124/84/44 16 by 4 / 12 by 4 / 8 by 4 / 4 by 4 3G-SDI Matrix Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls and Functions ..... 3 6.1 Front Panel ..........3 6.2 Rear Panel ..........4 6.3 Remote Control ........5 6.4 RS-232 Pin Assignment ......6 6.5 RS-232 Commands .........6 7. -
Page 6: Introduction
1. INTRODUCTION The 3G-SDI Matrix series allows SD-SDI, HD-SDI and 3G-SDI signals to be shown on SDI displays while ensuring high bit-rates of 2.970 Gbps to give you fast signal transmission without signal loss. For professionals, this means that it is now easier to switch multiple 3G-SDI signals and split display of them on up to four SDI-equipped displays simultaneously. -
Page 7: Features
5. FEATURES • 3G-SDI input sources can be selected and split or switched to four 3G-SDI displays simultaneously • Operation at 2.970 Gbps, 2.970/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps and 270 Mbps • Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C •... -
Page 8: Operation Controls And Functions

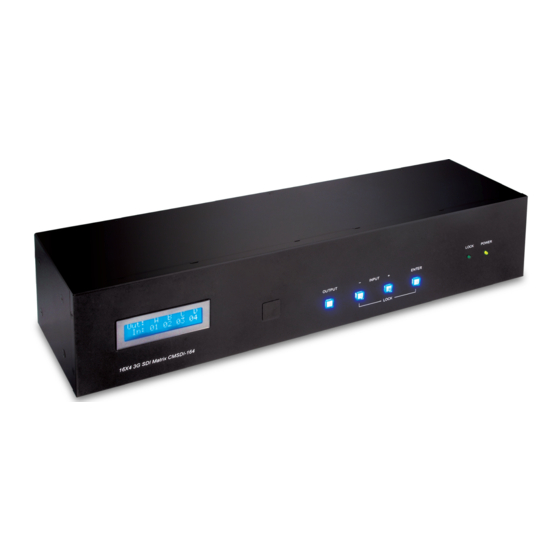

INPUT ENTER LOCK 16X4 3G SDI Matrix CMSDI-164 LCD Monitor: This LCD monitor displays the configuration of the input and output selections. The upper line displays the outputs A, B, C, & D. The lower line displays each output’s selected input. -
Page 9: Rear Panel
SDI player. The amount of input slots will depend on the model. MODEL INPUTS OUTPUTS CMSDI-164 CMSDI-124 CMSDI-84 CMSDI-44 SDI OUTPUT: Connect to the SDI displays with an SDI cables for displaying the output. It can also be connected to another SDI... -
Page 10: Remote Control
6.3 Remote Control POWER: Press the button to power the unit on/off. OUTPUT: Press an output port from A~D first then select an input number and press enter to confirm the selection. INPUT: Press the number keys to select the desired input source from 01~16 after selecting the output then press enter to confirm the selection. -
Page 11: Rs-232 Pin Assignment
6.4 RS-232 Pin Assignment Pins definition of modem cable CMSDI-44/84/124/164 Remote Controller Definition Definition Baud Rate: 19200 bps Data bit: 8-bit Parity: None Stop bit: 1-bit Flow Control: None 6.5 RS-232 Commands Command Description poweron Power ON poweroff Power OFF portx xx x= a~d output, xx=01~16 input... -
Page 12: Connection Diagram
7. CONNECTION DIAGRAM SDI DV Camera x16 SDI INPUT SDI OUTPUT DC 5V RS-232 SDI Monitor x 4 Note: The above diagram shows the 16 by 4 SDI matrix (CMSDI-164). -
Page 13: Specifications
8. SPECIFICATIONS SMPTE Standard 425M Level A & B, 424M, 292M, 259M-C SDI Transmission Rates 2.970 Gbps and 2.970/1.001 Gbps, 1.485Gbps, 1.485/1.001 Gbps and 270 Mbps Input Ports 16/8/4×BNC (SD/HD/3G-SDI) Output Ports 4×BNC (SD/HD/3G-SDI) SDI Timing Support SD-SDI: SMPTE 259M-C, 270 Mbit/s HD-SDI: SMPTE 292M, 1.485 &... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Bandwidth 2.97Gbit/s ≈ 3G Bayonet Neill-Concelman Serial Digital Interface... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
