Summary of Contents for CYP CMSI-8D8DS

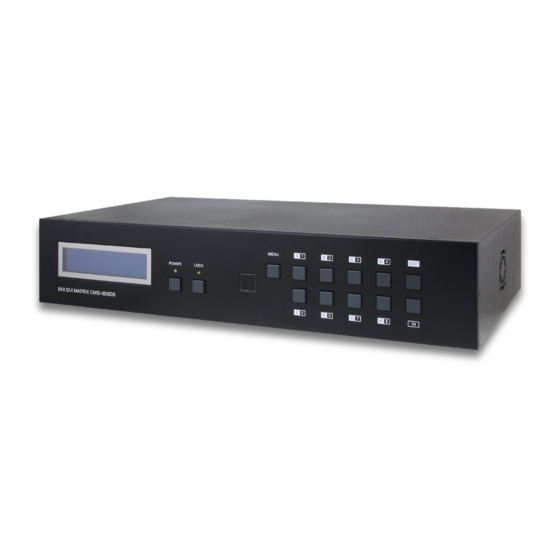

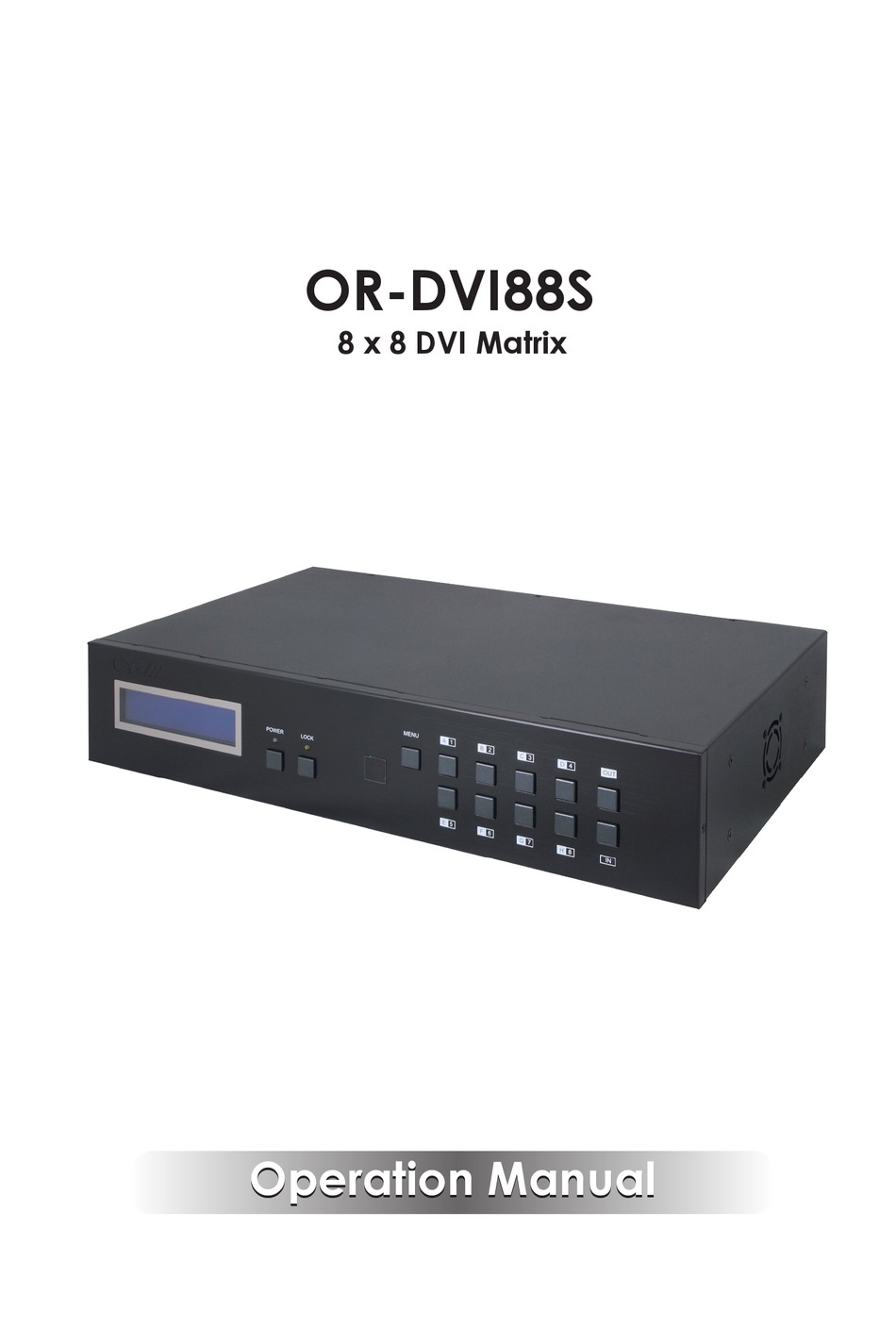

- Page 1 OR-DVI88S CMSI-8D8DS 8 x 8 DVI Matrix Operation Manual Operation Manual...
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 6.3 Side Panel .........4 6.4 Remote Control ........4 6.5 Remote Control ........5 6.6 RS-232 Commands ......5... -
Page 5: Introduction
1. INTRODUCTION The 8 x 8 DVI Matrix is a fabulous device for organizing and distributing your DVI signals. With 8 DVI input ports and 8 DVI output ports this device allows a great amount of sources and display to be used motivationally. -
Page 6: Operation Controls And Functions
POWER LOCK POWER LOCK 8 x 8 DVI Matrix 8X8 DVI MATRIX CMSI-8D8DS LCM: This monitor displays your setting information with each input and output selection. Power button LED: Press this button to turn on the device and the green LED will illuminate when the power is on. -
Page 7: Rear Panel
6.2 Rear Panel DVI OUT DVI OUT DC 24V DVI IN 2 3 4 LAN: This slot is to connect with CAT5/6 cable from an IP router for on- line fi rmware updating with a website designed by the device’s designer. -
Page 8: Side Panel
6.3 Side Panel Ventilator: These are fan ventilator area, DO NOT block these area or cover it with any object. 6.4 Remote Control Power: These are fan ventilator area, DO NOT block these area or cover it with any object. Input ports selection 1~8. -
Page 9: Remote Control
6.5 Remote Control CMSI-8D8DS Remote Control Console Assignment Assignment ► ◄ Baud Rate: 19200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1 6.6 RS-232 Commands Command (Case Sensitive) Description A1~A8 Switch output A to 1~8 B1~B8... -
Page 10: Specifi Cations
H1~H8 Switch output H to 1~8 ABCD...1~ABCD...8 Switch output ABCD... to 1~8 POWER OFF POWER ON I1~I8 switch all the output to 1~8 7. SPECIFICATIONS TMDS Clock Frequency 2.25 Gbps Input Ports 8 x DVI, 1 x IR, 1 x RS-232, 1 x USB B type(for fi... -
Page 11: Connection And Installation
8. CONNECTION AND INSTALLATION Monitor Monitor Monitor Monitor Monitor Monitor Monitor Monitor DVI OUT DVI OUT DC 24V DVI IN... -
Page 12: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System Digital Visual Interface EDID Extended Display Identifi cation Data HDCP High-bandwidth Digital Content Protectionl HDMI High-Defi nition Multimedia Interface HDTV High-Defi nition Television High-Defi nition Multimedia Interface Liquid Crystal Monitor Video Graphics Array WUXGA Wide Ultra Extended Graphics Array... - Page 15 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
