Summary of Contents for CYP CMSI-1616

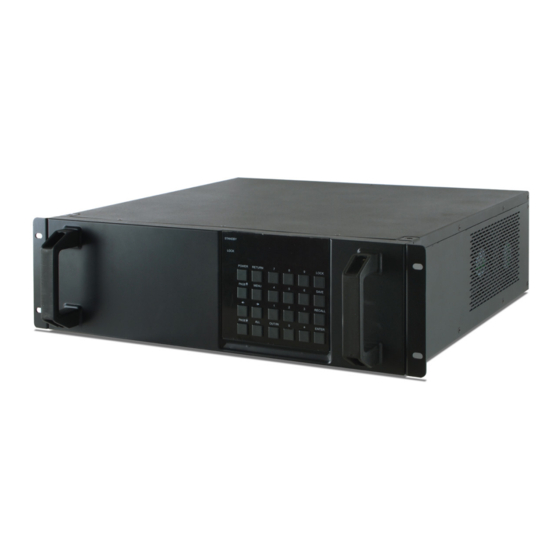

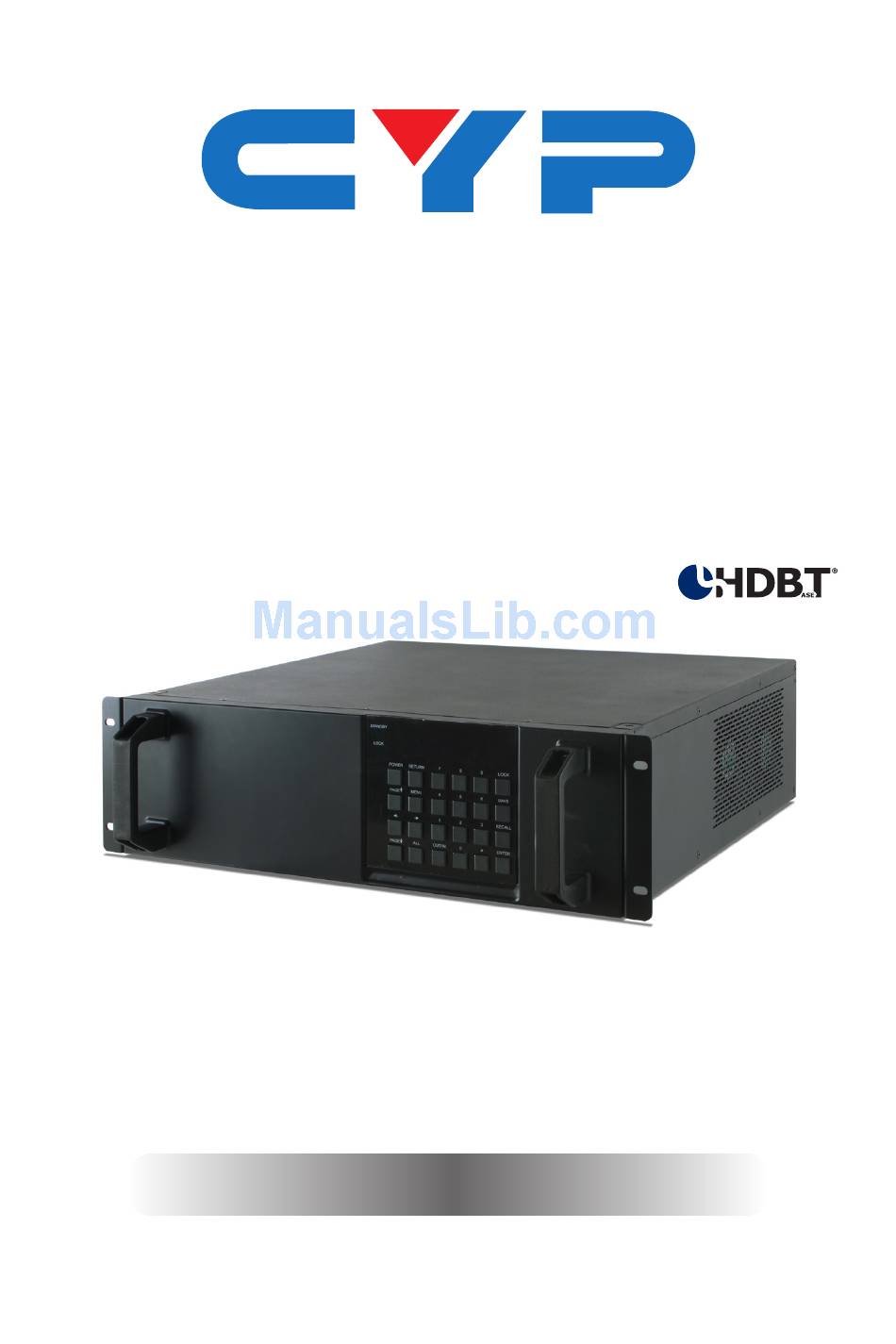

- Page 1 CMSI-1616 16 by 16 Modular Matrix Operation Manual Operation Manual...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ................1 2. Applications ................1 3. Package Contents ..............1 4. System Requirements ..............2 5. Features ..................2 6. Operation Controls and Functions ...........3 6.1 Front Panel ................3 6.2 Rear Panel ................5 6.3 Remote Control ..............6 6.4 IR Cable Pin Assignments ............ 7 6.5 RS-232 Protocols .............. -
Page 5: Introduction
1. INTRODUCTION The 16 by 16 Modular Matrix is designed to allow the switching and distribution of up to 16 source devices to up to 16 connected displays, either directly via HDMI, DVI or via CAT5e/6/7 outputs to compatible receivers, providing control options (dependent on module configuration). -
Page 6: System Requirements
4. SYSTEM REQUIREMENTS • Up to 16 HDMI, DVI, CAT5e/6/7 or VGA source devices (dependent on module configuration) connected with appropriate cables. • Up to 16 displays (TV or monitor) or AV receivers, equipped with HDMI, DVI, CAT5e/6/7 connection (dependent on module configuration) connected with appropriate cables •... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel STANDBY LOCK POWER RETURN LOCK PAGE MENU SAVE RECALL PAGE OUT/IN ENTER LCM: Displays the setting information of each input/output and other setting information according to the selected mode. IR WINDOW: Accepts the IR remote control signal for the matrix only. - Page 8 1. S tandard Mode: Uses the built-in EDID settings that support video up to 1080p@60 or WUXGA@60 (RB) video and LPCM 2CH audio. 2. D ynamic Mode: Reads the EDID settings from the display connected to the lowest numbered output port. 3. M anual Mode: Supports independent EDID settings by selecting the input and output ports.
-
Page 9: Rear Panel
6.2 Rear Panel OUTPUT MODULE OUTPUT MODULE IR IN RS232 CONTROL IR ALL SERVICE OUTPUT 0 INPUT MODULE INPUT MODULE OUTPUTS 1~16: Install up to 2 Output modules as required for up to 16 displays (TV or monitor) or CAT5e/6/7 outputs for compatible HDBaseT receivers (dependent on module configuration). -
Page 10: Remote Control
SERVICE: Manufacturer use only. OUTPUT 0: Connect to DVI equipped display or to an HDMI equipped display (with DVI to HDMI adaptor) for local monitoring of the output signal. INPUT 1~16: Install up to 2 Input modules as required for up to 16 source devices or CAT5e/6/7 inputs for compatible HDBaseT transmitters (dependent on module configuration). -
Page 11: Ir Cable Pin Assignments
6.4 IR Cable Pin Assignments IR Blaster Power IR Signal IR Extender IR Signal Power Grounding 6.5 RS-232 Protocols MATRIX RS-232 CONTROLLER Definition Definition ► ◄ Baud Rate: 19200bps Data Bit: 8 bits Parity: None Stop Bit: 1 Flow Control: None... -
Page 12: Rs-232 And Telnet Commands
6.6 RS-232 and Telnet Commands COMMAND DESCRIPTION Power on Power off OxIy Set output (x=1~16) to input (y=1~16) ALLOUT x Set all outputs to input (x=1~16) ACTIVE Report active I/O channels INDETECT Input channels detection indicator OUTDETECT Output channels detection indicator PORTSTATUS Report all output connection status HDCPON x... - Page 13 COMMAND DESCRIPTION HPDLALL Set the hot-plug-detect of all inputs to 'low' HPDHALL Set the hot-plug-detect of all inputs to 'high' HPDSTATUS Report the hot-plug-detect signal status of all inputs EDIDMODE x y Set the EDID mode of input (x=1~16) to y (1~3) EDIDMODEALL x Set the EDID mode of all input to x (1~3)
- Page 14 COMMAND DESCRIPTION UARTBAUD x y Set the UART Baud rate of output (x=1~16, y=rate) STATUSUART Show the UART Baud rate of output TEMPSTATUS Show temperature sensor values y1 and y2 SETIPADDR Set the IP address (x.x.x.x) SETSNMASK Set the Subnet Mask address (x.x.x.x) SETGWADDR Set the Gateway address (x.x.x.x) IPCONFIG...
-
Page 15: Telnet Control
6.7 Telnet Control Before attempting to use the Telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to the same active networks. To access the Telnet control in Windows 7, click on the 'Start' menu and type "cmd"... - Page 16 This will bring us into the unit which we wish to control. Type "help" to list the available commands. Type "IPCONFIG" To show all IP configurations. To reset the IP, type "RSTIP" and to use a static IP, type "SETIP" (For a full list of commands, see Section 6.4).
-
Page 17: Web Gui Control
6.8 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type the unit's IP address on the web address entry bar. The browser will display the unit's Status, Control and User Setting pages. -
Page 18: Connection Diagram
7. CONNECTION DIAGRAM 7.1 Example Installation (16×16 HDMI Matrix) Up to 16 HDMI Smartphone/Tablet Outputs - TV, device (for Web Displays or GUI control) Projectors Local Wireless Monitor Router Power Supply OUTPUT MODULE OUTPUT MODULE IR IN RS232 CONTROL IR ALL SERVICE OUTPUT 0 INPUT... -
Page 19: Input And Output Modules
7.2 Input and Output Modules Output Modules (×2) COUT-8CV-5PLAY 8 port 4K UHD HDBaseT output module COUT-8CV-4PLAY 8 port HDBaseT output module CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 COUT-8CV-3PLAY 8 port HDBaseT output module 4K UHD OUTPUT COUT-8DS 8 port 4K UHD HDMI output module OUTPUT MODULE... -
Page 20: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications (Enclosure) Input Ports Up to 16×HDMI or DVI or CAT5e/6/7 or VGA (dependent on module configuration) Output Ports Up to 16×HDMI or DVI or CAT5e/6/7 (dependent on module on module configuration) Power Supply 2×AC 110~240V (US/EU standards, CE/ FCC/UL certified) Dimensions 482 mm (W)×484 mm (D)×145 mm (H) -
Page 21: Technical Specifications (Input Modules)
8.2 Technical Specifications (Input Modules) CIN-8CV-5PLAY 8 Port HDBaseT Input Module Video Bandwidth 300 MHz/10.2 Gbps Features HD Video/Audio, PoC, Ethernet, IR/RS-232 Input Ports 8×CAT5e/6/7, 1×LAN, 8×IR Extender, 8×IR Blaster Ethernet Speed 100 Mbps Video Resolutions PC: VGA~WUXGA HDTV: 480i~1080p & 4K2K@30 Hz IR Frequency 30~50 Hz Audio Transmission... -
Page 22: Technical Specifications (Output Modules)
CIN-8HS 8 Port HDMI Input Module Audio Transmission LPCM7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32~192 kHz Fs sample rate) Power Consumption 20 W CIN-8DS 8 Port DVI Input Module Video Bandwidth 225 MHz/6.75 Gbps Input Ports 8×DVI Video Resolutions PC: VGA~WUXGA@60 (RB) HDTV: 480i~1080p... - Page 23 COUT-8CV-5PLAY 8 Port HDBaseT Output Module Video Resolutions PC: VGA~WUXGA HDTV: 480i~1080p & 4K2K@30 Hz IR Frequency 30~50 Hz Audio Transmission LPCM7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32~192 kHz Fs sample rate) Power Consumption 45 W+10 W PoC/each port COUT-8CV-4PLAY 8 Port HDBaseT Output Module Video Bandwidth 225 MHz/6.75 Gbps...
- Page 24 COUT-8HS4K 8 Port 4K HDMI Output Module Video Bandwidth 300 MHz/10.2 Gbps Output Ports 8×HDMI Video Resolutions PC: VGA~WUXGA HDTV: 480i~1080p, 4K2K@30Hz Audio Transmission LPCM7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32~192 kHz Fs sample rate) Power Consumption 22 W COUT-8HS 8 Port HDMI Output Module Video Bandwidth...
-
Page 25: Cat5E/6/7 Cable Specifications
8.4 CAT5e/6/7 Cable Specifications CIN-8CV-5PLAY, COUT-8CV-5PLAY and COUT-8CV-4PLAY Cable Distance: Pixel Clock Video Data Supported Video Cable Type Range Rate Rate Formats CAT5e/6/7 100 m ≤225 MHz ≤5.3 Gbps Up to 1080p@60 Hz, (HD Video) 36-bit, 3D (data rates lower than 5.3 Gbps or below 225 MHz TMDS clock). -
Page 26: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Digital Theater System Digital Visual Interface EDID Extended Display Identification Data Graphical User Interface HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Liquid Crystal Module Power over Cable Video Graphics Array WUXGA Widescreen Ultra Extended Graphics Array... - Page 27 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20130625 MPM-CMSI3232...
