Side Panel; Remote Control - CYP CMSI-8H8CV Operation Manual

9 HDMI IN 1~8: Connect to the HDMI source devices such as a DVD
player or a Set-top Box with HDMI cables or DVI to HDMI cables.
10 DC 24V: Connect the 24 V DC power supply to the unit and plug the
adaptor into an AC outlet.
11 PoE 24V: Connect the 24 V PoE power supply into the unit and plug
the adaptor into an AC outlet. This unit will mainly power PoE (Power
over Ethernet) capable receiver units.

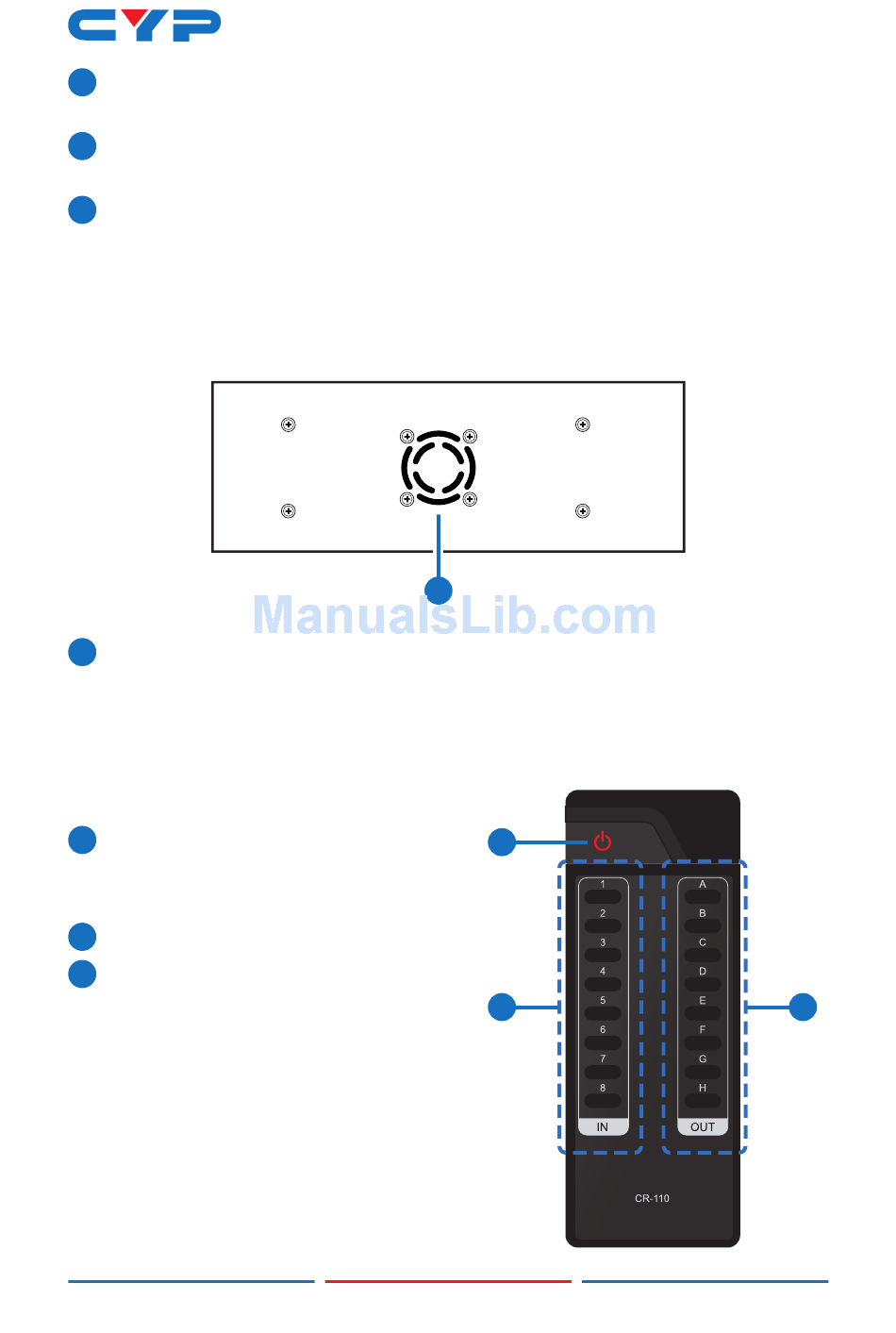

6.3 Side Panel

1 Fan Ventilator: These are air ventilation areas, DO NOT block these
areas or cover it with any object. Please allow adequate space
around the unit for air circulation.

6.4 Remote Control

1 POWER: Press this button to switch
the device 'ON' or set it to standby
mode.
IN: Input selection 1~8.
2
3 OUT: Output selection A~H.
Note: When the IR remote is used
in the Output Zone the user only
needs to select the desired input
(1~8)
5
1
1
2 3
