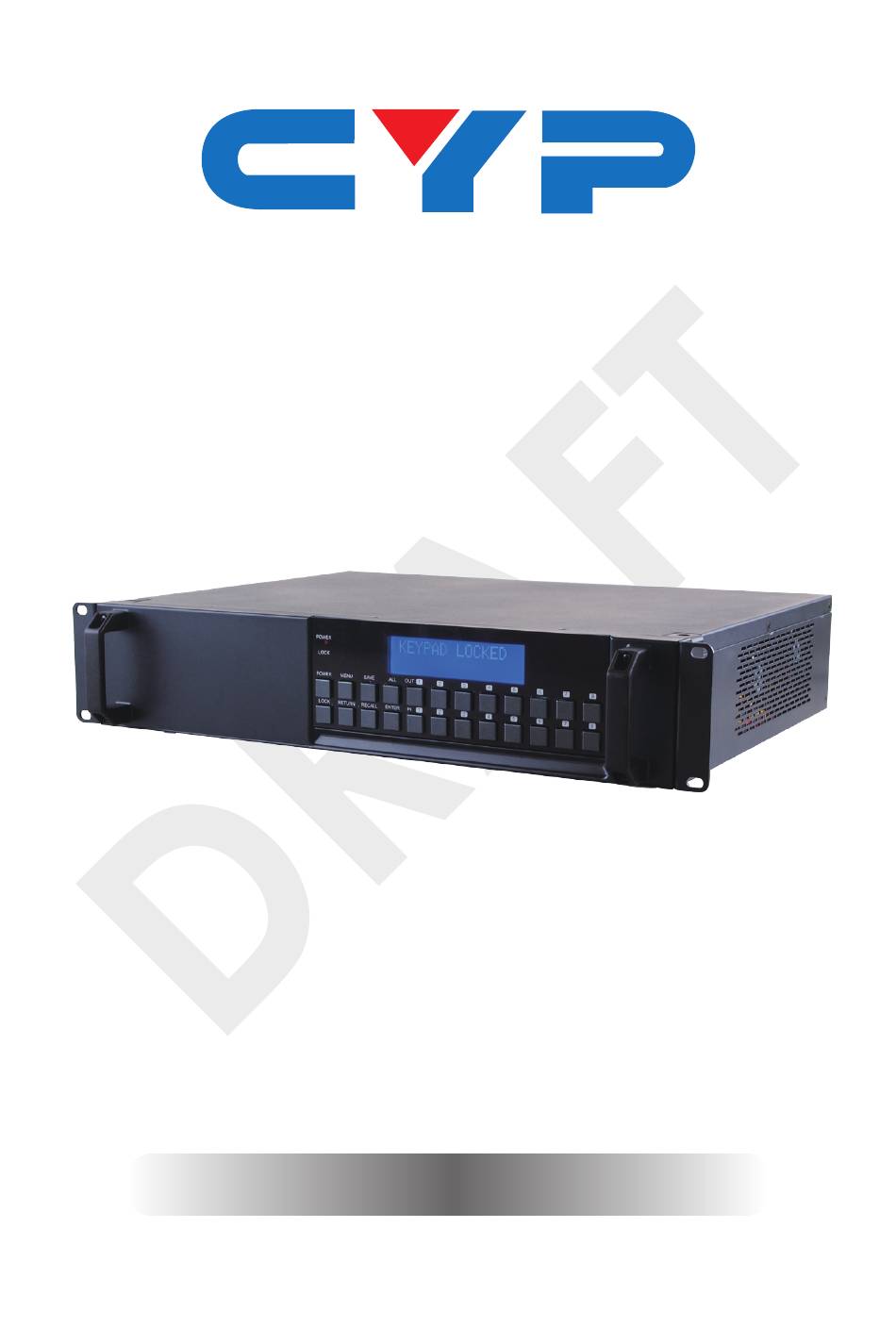

- Page 1 CMSI-88 Modularized Matrix Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........5 6.3 RS-232 Protocols .......6 6.4 RS-232 &... -
Page 6: Introduction

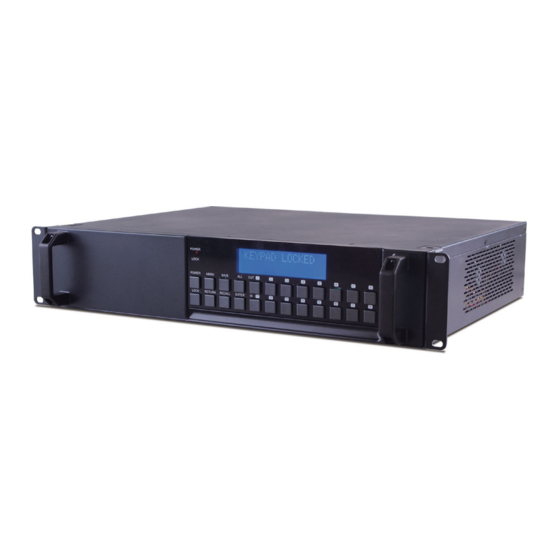

1. INTRODUCTION The Modularized Matrix series are designed to route the signal of 8 sources to any connected 8 displays, providing resolution up to Full HD 1080p/4Kx2K and WUXGA (1920x1200@60HzRB). Besides the regular matrix functionality, the matrix models are very attractive to the integrators because of their great flexibility, with the most advanced modularization design these models can be setup as a matrix of HDMI, DVI-D, CAT5e/6/7, VGA or their any combinations all you need to do... -
Page 7: Features
5. FEATURES • HDMI, HDCP 1.1 and DVI 1.0 compliant • Changeable input and output boards • Input and output module types can be mixed with HDMI, DVI, CAT5e/6/7 and VGA interfaces • Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER button & LED: Press this button to turn On the device or press it again to switch to standby mode. The LED will illuminate when the power is in standby mode. If the LED is flashing it means the temperature inside is too high and air circulation is highly suggested. - Page 9 1. IP address, 2. Netmask, 3. Gateway. C. Temperature 1. Temperature 1, 2. Temperature 2, these figures shows the temperature of the device inside. D. LCM Contrast Range from 1~4 ◄►: Use these buttons to flip the LCM’s page for displaying the current I/O status or when entering into the menu for detail selection.
-
Page 10: Rear Panel
6.2 Rear Panel OUTPUT MODULE IR IN RS232 CONTROL IR ALL SERVICE OUTPUT 0 100-240VAC 50/60 Hz INPUT MODULE Note: The above panel is an illustration of HDMI I/O. OUTPUT 1~8: Connect to HD or 3D TV/monitors with HDMI cables up to 8 displays. -
Page 11: Rs-232 Protocols
6.3 RS-232 Protocols CMSI-88 Remote Controller Definition Definition Baud Rate: 19200bps Data Bit: 8 bits Parity: None Stop Bit: 1 Flow Control: None... -
Page 12: Rs-232 & Telnet Command
6.4 RS-232 & Telnet Command Command Description Power on. Power off. OxIy Output (x:0~8) set to input (y:1~8). ALLOUT x All output set to input (x:01~8). ACTIVE Report I/O active channels. INDETECT Input channels detect indicator. OUTDETECT Output channels detect indicator. PORTSTATUS Report all output connection status. - Page 13 HPDH x Pull the input(x:01~8) Hot-Plug-Detect signal to 'HIGH'. HPDLALL Set all input HPD to Low. HPDHALL Set all input HPD to High. HPDSTATUS Report all input Hot-Plug-Detect signal status. EDIDMODE x y Set EDID mode(y:1~2) to Input(x: 01~8). EDIDMODEALL x The EDID mode(x:1~2) of All Input.
-
Page 14: Telnet Control
Note: All the command will be not executed unless followed with a carriage return. Commands are case-insensitive 6.5 Telnet Control Before attempting to use the telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to the active networks. - Page 15 This will bring us into the device which we wish to control. Type "HELP" to list the available commands. Type “IPCONFIG” To show all IP configurations. To reset the IP, type “RSTIP” and to use a set static IP, type ”SETIP” (For a full list of commands, see Section 6.4).
-
Page 16: Web Gui Control
carriage return. Commands are case-insensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly. 6.6 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type device's IP address on the web address entry bar. - Page 17 Clicking on the 'User Setting' tab allows you to reset the IP configuration. The system will ask for a reboot of the device every time any of the settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.
-
Page 18: Connection Diagram
7. CONNECTION DIAGRAM Up to 8 HDMI Smartphone/ Outputs - TV, Displays Tablet device (for or Projectors WebGUI control) Local Monitor Wireless Router OUTPUT MODULE IR IN RS232 CONTROL IR ALL SERVICE OUTPUT 0 100-240VAC 50/60 Hz INPUT MODULE Power Cable Note: In this example, an HDMI input module and an HDMI output module are used to create a 8x8... - Page 19 Output Modules CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 CAT5e/6 COUT-8CV-5PLAY 8 port 4K2K HDBaseT output module COUT-8CV-4PLAY 8 port HDBaseT output module COUT-8CV-3PLAY 8 port HDBaseT output module COUT-8DS 8 port DVI output module 4K UHD OUTPUT COUT-8HS4K 8 port 4K2K HDMI output module OUTPUT MODULE COUT-8HS...
-
Page 20: Specifications
8. SPECIFICATIONS Input ports 8 x HDMI or DVI or CAT5e/6/7 or VGA Output ports 8 x HDMI or DVI or CAT5e/6/7 Power Supply 2 x AC 110~240V (US/EU standards, CE/FCC/UL certified) HMDI Cable I/O Distance 15m/8-bits, 10m/12-bits Dimensions (mm) 482(W) x 380(D) x 100(H) Weight(g) 11,000... - Page 21 CIN-8DS 8 ports DVI input module Video Bandwidth 225MHz/6.75Gbps Input ports 8 * DVI Video resolutions PC: VGA ~WUXGA@60RB HD: 480i~1080p Audio transmission LPCM7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32~192KHz Fs sample rate) CIN-8VGA 8 ports VGA input module Input ports 8 * VGA, 8 * 2.5mm Audio phone jack Video resolutions...
- Page 22 COUT-8HS 8 ports HDMI output module Video Bandwidth 225MHz/6.75Gbps Input ports 8 * HDMI Video resolutions PC: VGA ~WUXGA@60RB HD: 480i~1080p Audio transmission LPCM7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32~192KHz Fs sample rate) COUT-8DS 8 ports DVI output module Video Bandwidth 225MHz/6.75Gbps Output ports...
- Page 23 COUT-8CVL-3PLAY 8 ports HDBaseT output module Video Bandwidth 225MHz/6.25Gbps Features Support HDBaseT/IR/RS232 Output ports 8 * CAT5e/6, 8 * IR Extender, 8 * IR Blaster Video resolutions PC: VGA ~ WUXGA HD: 480i~1080p IR Frequency 30~50Hz Audio transmission LPCM7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32~192KHz Fs sample rate) COUT-8CV-4PLAY 8 ports HDBaseT output module...
-
Page 24: Cat5E/6/7 Cable Specification
IR Frequency 30~50Hz Audio transmission LPCM7.1CH, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio (32~192KHz Fs sample rate) 8.1 CAT5e/6/7 Cable Specification COUT-8CVL-3PLAY Cable Distance Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 60 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 bits, 3D (data rates (HD Video) - Page 28 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20141128 MPM-CMSI88...
