Summary of Contents for CYP CMSI-3232

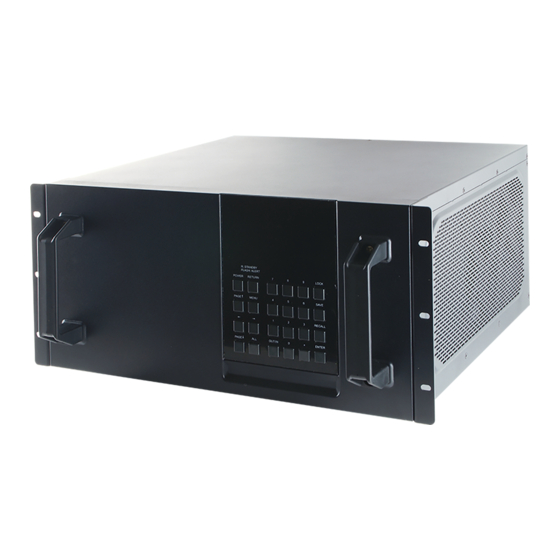

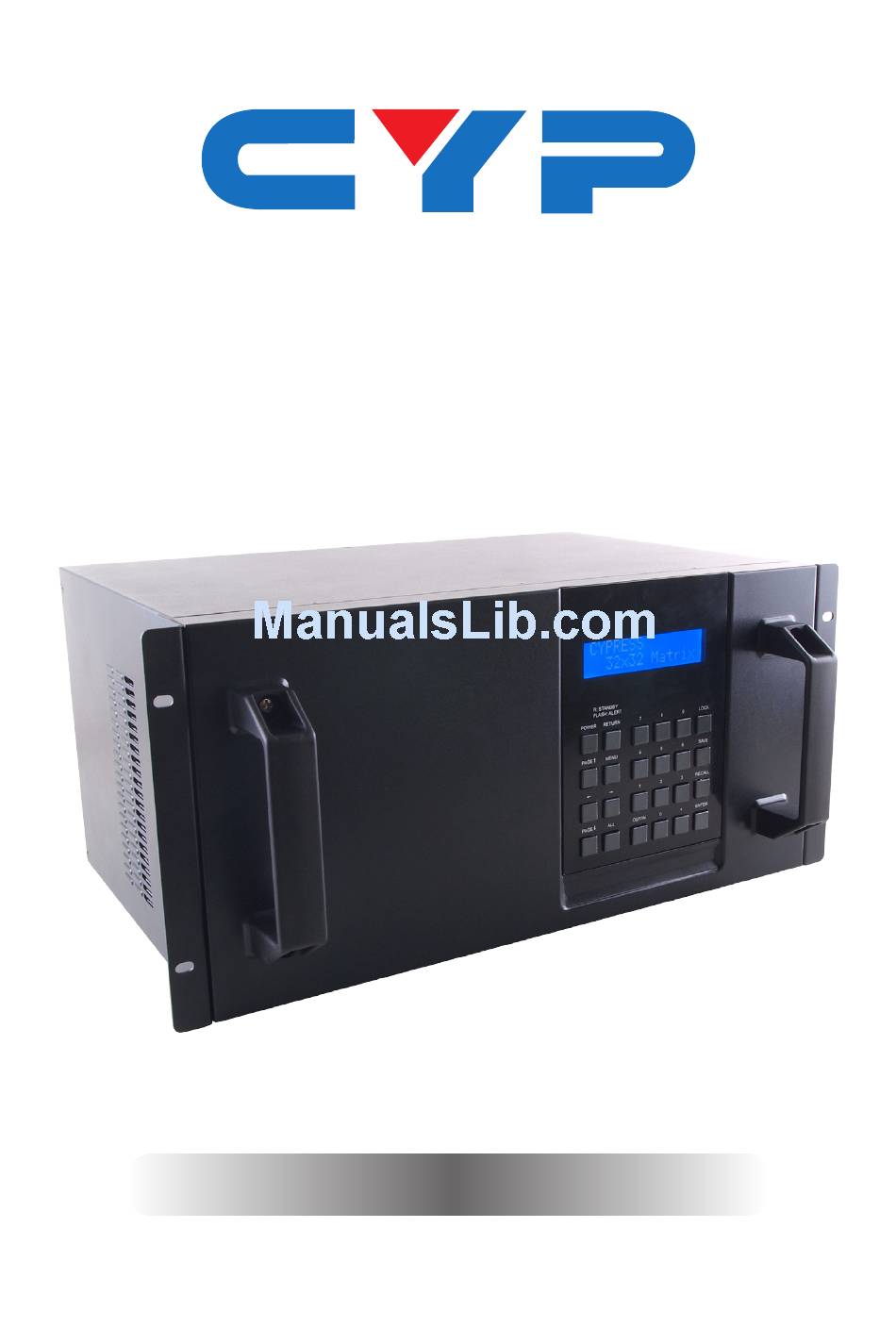

- Page 1 CMSI-3232/1616/88 HDMI Matrix Operation Manual Operation Manual...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........5 6.3 RS-232 Protocols .......6 6.4 RS-232 &... -
Page 6: Introduction
1. INTRODUCTION The Modularized HDMI Matrix series can route the signal of 32, 16 or 8 sources to any connected 32, 16 or 8 displays, providing resolution up to Full HD 1080p and WUXGA (1920x1200@60HzRB). Besides the regular matrix functionality, the matrix models are very attractive to the integrators because of their great flexibility, with the most advanced modularization design these models can be setup as a matrix of HMDI, DVI-D, or their any combinations (count with eight, for example, a... -
Page 7: Features
5. FEATURES • HDMI, HDCP 1.1 and DVI 1.0 compliant • Changeable input and output board • Input and output module types can be mixed and added in increment of 8 from 8x8 up to 32x32 with HDMI, DVI and CAT5e/6/7 interfaces •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel R: STANDBY FLASH: ALERT POWER RETURN LOCK PAGE MENU SAVE RECALL PAGE OUT/IN ENTER LCM: Displays the setting information of each input and output and other setting information according to the selection. POWER &... - Page 9 3. Manual EDID: Support independent EDID by appoint input and output ports. B. IP 1. IP address, 2. Netmask, 3. Gateway. C. Temperature 1. Temperature 1, 2. Temperature 2, these figures shows the temperature of the device inside. ALL: Press this button to select all outputs with one input. 0~9: Press these numbers when selecting input output ports.
-
Page 10: Rear Panel
6.2 Rear Panel 100-240VAC OUTPUT 50/60 Hz RS232 ETHERNET IR IN OUTPUT 0 INPUT OUTPUT 1~32: Connect HD/3D display TV/monitor with HDMI cables up to 32 displays. a. USB: This port is reserved for firmware update only. b. IR IN: Reserved. c. -
Page 11: Rs-232 Protocols
6.3 RS-232 Protocols CMSI-3232/1616/88 Remote Controller Definition Definition Baud Rate: 19200bps Data Bit: 8 bits Parity: None Stop Bit: 1 Flow Control: None... -
Page 12: Rs-232 & Telnet Command
6.4 RS-232 & Telnet Command HELP: Show Command list. Command Description Power Off Power On RESET System Reset to O1I1,O2I2,O3I3,O4I4,O5I5..Reset IPCONFIG Display the current IP config SETIP <IP> <SubNet> <GW> Setting IP.Sbunet.GGateWay (Static IP) RSTIP IP Configuration Was Reset To Factory Defaults(DHCP) OxxIxx(x:01~32) Output 1~32 set to Input 1~32... - Page 13 SHOWMUTE Show mute ststus of all output(0=not muted,1=muted SETIPADDR <IP> Setting iIP address SETSNMASK <SubNet> Setting subned mask SETWADDR <GW> Setting gateway IP address RDIPADDR Display the current IP address RDSNMASK Display the current subnet mask RDGWADDR Display the current gateway IP address Display controller firmware version Note: All the RS-232 command will be not executed unless followed with a carriage return.
-
Page 14: Connection Diagram
7. CONNECTION DIAGRAM Output Display TV/Monitors up to 32 RS232 Equipped PC or Notebook Wireless Router OUTPUT 100-240VAC 50/60 Hz RS232 ETHERNET IR IN OUTPUT 0 INPUT Input Source equipments up to 32 Power Supply... -
Page 15: Specifications
8. SPECIFICATIONS Video Bandwidth 225MHz/6.75Gbps Input ports 32/16/8 x HDMI or DVI or CAT5e/6/7 Output port 32/16/8 x HDMI or DVI or CAT5e/6/7 Power Supply 2 x AC 110~240V (US/EU standards, CE/ FCC/UL certified)*3232 & 1616 1x AC 110~240V (US/EU standards, CE/ FCC/UL certified)*88 HMDI Cable I/O Distance 15m/8-bit I/O, 10m/12-bit I/O... -
Page 16: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM... - Page 20 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20121206 MPM-CMSI3232...
