Summary of Contents for CYP CMSDI-1616S

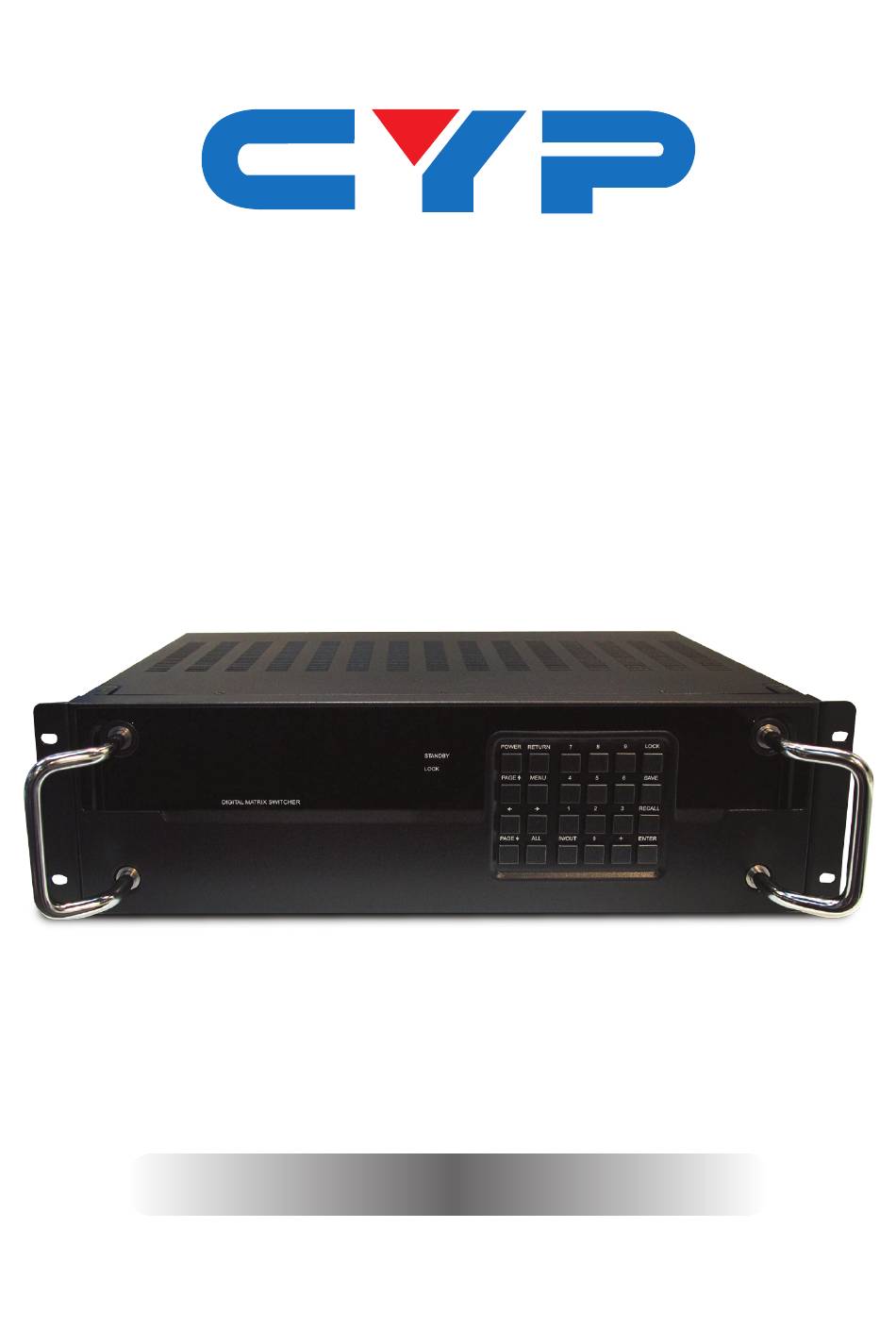

- Page 1 CMSDI-1616S 16×16 3G-SDI Hybrid Modular Matrix Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........5 6.3. Remote Control .......6 6.4 RS-232 Protocols .......7 6.5 Assign IP Address ......7 6.6 RS-232/Telnet Commands ....8... -
Page 6: Introduction
1. INTRODUCTION This 16×16 3G-SDI Hybrid Modular Matrix can switch and distribute up to sixteen SDI sources to any sixteen SDI sinks, providing bandwidth up to 2.970 Gb/s for 3G-SDI video support. In addition, this matrix also features IP control allowing users to access and control the matrix remotely. -
Page 7: Features
5. FEATURES • Supports operation at 2.970 Gb/s, 2.970/1.001 Gb/s, 1.485 Gb/s, 1.485/1.001Gb/s, and 270 Mb/s • Supports SDI input/output modes: - SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s) - HD-SDI (SMPTE 292M, at bitrates of 1.485Gbit/s and 1.485/1.001 Gbit/s) - 3G-SDI (SMPTE 424M/425M-A and B, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s) •... -
Page 8: Operation Controls And Functions

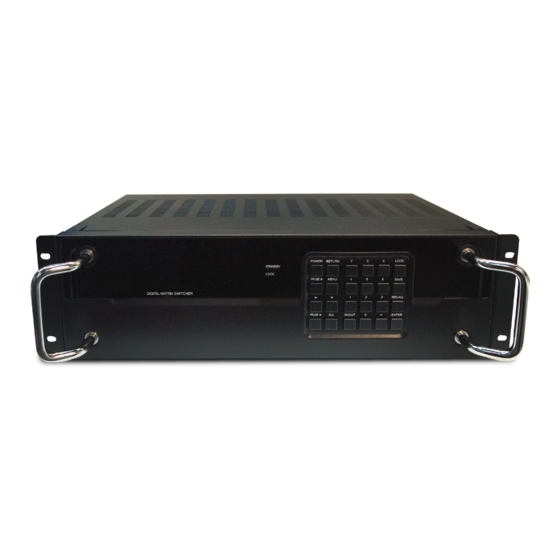

6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER RETURN LOCK STANDBY LOCK PAGE MENU SAVE DIGITAL MATRIX SWITCHER RECALL PAGE ENTER OUT/IN 12 16 LCM: Displays the Menu and the setting information of each input and output selection. STANDBY LED: This LED will illuminate when unit is in 'Stand-by Mode'. - Page 9 MENU: Press this button to enter the settings menu. There are total of 9 functions available. - Firmware version - IP Address: Use this address for logging into Telnet and the Web - DHCP/AUTO IP ON/OFF (ON: DHCP enable, OFF: Static IP enable) - STATIC IP - STATIC NETMASK Setting - STATIC GATEWAY Setting...
-
Page 10: Rear Panel
6.2 Rear Panel INPUT INPUT INPUT INPUT OUTPUT OUTPUT OUTPUT OUTPUT 100-240VAC 50/60 Hz RS232 CONTROL INPUT 1~16: Connect up to 16 SDI equipped source devices such as digital cameras or video players with SDI cables. OUTPUT 1~16: Connect up to 16 SDI equipped sink devices such as displays (TV/monitors) or broadcast video recorders with SDI cables. -
Page 11: Remote Control
6.3 Remote Control POWER: Press this button to switch the device on or to put it into standby mode. OUTPUT 0~9: Press the appropriate combination of buttons to select the required output setting and press enter. OUTPUT ENTER: Press to confirm the output ENTER OUTPUT selection. -
Page 12: Rs-232 Protocols
6.4 RS-232 Protocols CMSDI-1616S REMOTE CONTROLLER Definition Definition ► ◄ Baud Rate : 19200 bps Data Bit : 8 bits Parity : None Stop Bit : 1 bit Flow Control: None 6.5 Assign IP Address There are 2 ways to assign an IP address, automatically via DHCP or by manually setting a static address. -
Page 13: Rs-232/Telnet Commands
6.6 RS-232/Telnet Commands COMMANDS DESCRIPTION QUIT Quit Telnet connection Show all commands RESET DEFAULT Factory reset Current firmware version PORT I:n O:n I: Input, O: Output, n:Port number PORT I n O n I: Input, O: Output, n:Port number PORT O:n I:n I: Input, O: Output, n:Port number PORT O n I n I: Input, O: Output, n:Port number... -
Page 14: Telnet Control
6.7 Telnet Control Before attempting to use the Telnet control, please ensure that both the Matrix (via the 'LAN /CONTROL' port) and the PC/Laptop are connected to the same active network. To access the Telnet control in Windows 7, click on the 'Start' menu and type "cmd"... - Page 15 This will bring us into the device which we wish to control. Type "?" to list the available commands. Type “GET IP CONFIG” to show all IP configurations. To reset the IP, type “SET IP MODE n” and to use a set static IP. Note: Commands will not be executed unless followed by a carriage return and LF.
-
Page 16: Web Gui Control
6.8 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser and type the device's IP address on the web address entry bar. The browser will display the device's IP Status and Matix Setting. -
Page 17: Specifications
7. SPECIFICATIONS SMPTE Standard 425M-A & B, 424M, 292M, and 259M-C Transmission Bitrates 2.970 Gbps and 2.970/1.001 Gbps, 1.485Gbps, 1.485/1.001 Gbps and 270 Mbps Input Ports 16×BNC (SD/HD/3G-SDI) Output Ports 16×BNC (SD/HD/3G-SDI) Supported HDMI 480i/576i, 720p@50/59.94/60, Resolutions 1080i@50/59.94/60, 1080p@23.98/24/25/29.97/30/50/59.94/60, 1080PsF@23.98/24/25/29.97/30 Supported SDI SD-SDI: SMPTE 259M-C, 270 Mbit/s Video Formats... - Page 18 SD/HD/3G Eye Diagram • SD-576i • HD-720p...
- Page 19 • 3G-1080p...
-
Page 20: Connection Diagram
8. CONNECTION DIAGRAM SDI Cameras INPUT INPUT INPUT INPUT SDI Input SDI Player SDI Player SDI Camera SDI Camera SDI Player SDI Player SDI Player SDI Camera SDI Camera... - Page 21 SDI Monitors SDI Output OUTPUT OUTPUT OUTPUT OUTPUT 100-240VAC 50/60 Hz RS232 RS-232 Equipped CONTROL PC or Notebook Smartphone or Tablet Wireless Router (with Internet Connection) SDI Output SDI to HDMI Converters AUDIO OUT HDMI OUT AUDIO OUT HDMI OUT SDI Monitor SDI Mixer SDI Mixer...
-
Page 22: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Bayonet Neill-Concelman DHCP Dynamic Host Configuration Protocol HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface Infrared Serial Digital Interface... - Page 24 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20120620 MPM-CMSDI1616...
