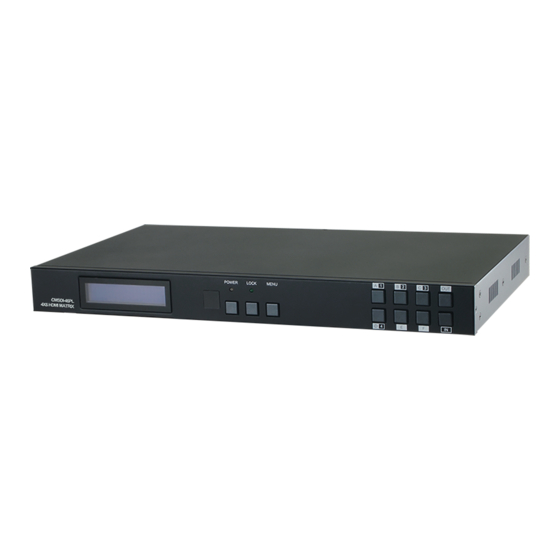

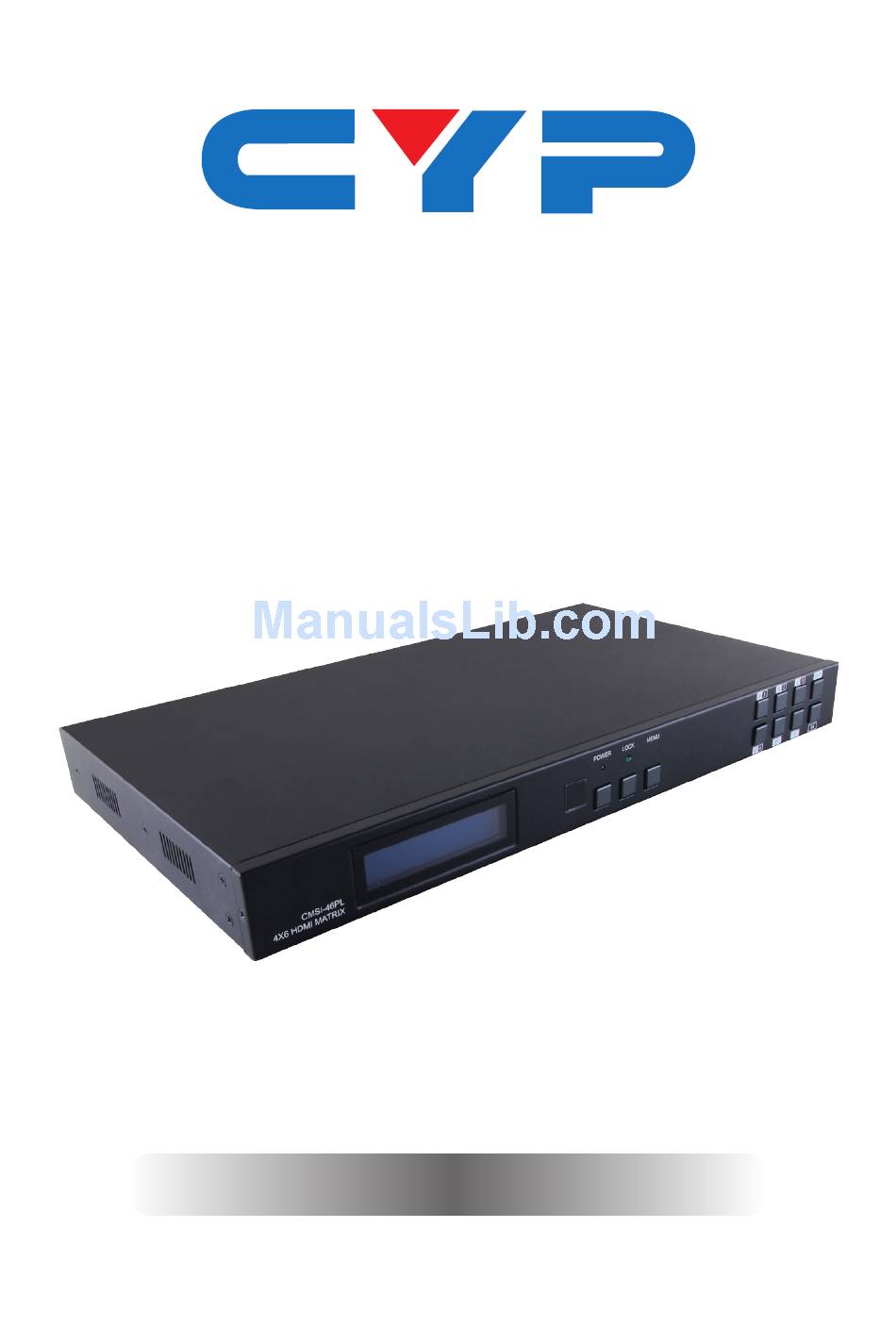

- Page 1 CMSI-46PL 4 by 6 Matrix Operation Manual Operation Manual...
- Page 2 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
CONTENTS 1. Introduction ...............1 2. Applications ..............1 3. Package Contents ...........1 4. System Requirements ..........2 5. Features ..............2 6. Operation Controls and Functions ......3 6.1 Front Panel ............3 6.2 Rear Panel ............4 6.3 Side Panel ............5 6.4 Remote Control ...........5 6.5 IR Pin Assignment ..........6 6.6 RS-232 Protocols ..........6 6.7 RS-232 &... -
Page 5: Introduction
1. INTRODUCTION The 4 by 6 Matrix allows HDMI signal from any of its four sources to be routed to any of its six outputs simultaneously. With a thoughtful design for local and remote connections both required in system integration, the model is engineered with 2 HDMI and 4 CAT5e/6/7 outputs, the later ones carry major HDBaseT features including the transmission of high definition audio and video, bidirectional IR, RS-232 and PoC... -
Page 6: System Requirements
4. SYSTEM REQUIREMENTS • Input source equipment with HDMI connection cables • Industry CAT5e/6/7 cable • HDMI over CAT5e/6/7 Receivers with industrial CAT5e/6/7 cables • Output displays or audio receiver equipments with HDMI connection cables 5. FEATURES • Supports resolutions VGA to WUXGA and 480i to 1080p dependent upon the output display’s EDID settings •... -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel POWER LOCK MENU CMSI-46PL 4X6 HDMI MATRIX LCM: This monitor displays your setting information with each input and output selection. IR: This IR window accepts the remote control signal of this device only. -
Page 8: Rear Panel
6.2 Rear Panel IR OUT IR IN IR OUT HDMI OUT CAT5e/6/7 OUT CAT5e/6/7 OUT IR IN IR OUT IR IN IR OUT IR IN IR OUT HDMI OUT CAT5e/6/7 OUT CAT5e/6/7 OUT IR IN HDMI IN 1 HDMI IN 2 HDMI IN 3 HDMI IN 4 DC 24V... -
Page 9: Side Panel
ALL IR IN: This slot is to connect with the IR Extender for IR signal receiving and send out to Receiver sides. Ensure that remote being used is within the direct line-of-sight of the IR Extender. DC24V: This slot is to plug the power cord with adaptor included in the package and then connect them with AC wall outlet for power supply. -
Page 10: Ir Pin Assignment
6.5 IR Pin Assignment IR Blaster Power IR Blaster Signal IR Extender IR Signal Power Grounding 6.6 RS-232 Protocols CMSI-46PL Remote Control Console Assignment Assignment Baud Rate: 19200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1... -
Page 11: Rs-232 & Telnet Commands
6.7 RS-232 & Telnet Commands Command Description A1~A4 Switch output A to 1~4 B1~B4 Switch output B to 1~4 C1~C4 Switch output C to 1~4 D1~D4 Switch output D to 1~4 E1~E4 Switch output E to 1~4 F1~F4 Switch output F to 1~4 A0~F0 Switch output A to F mute ABCD…1~ABCD…4... - Page 12 Command Description Setting EDID MODE. 1-STD 2-TV Display all the available commands UARTBAUD? Display each output's baud rate setting 1: 9600bps 2: 14400bps 3: 19200bps 4: 38400bps 5: 57600bps 6: 115200bps UARTBAUD2 Set output B’s baud rate from 1~6 UARTBAUD3 Set output C’s baud rate from 1~6 UARTBAUD5 Set output E’s baud rate from 1~6...
- Page 13 Note: 1. All the command will be not executed unless followed with a carriage return. All letters are case-insensitive. 2. Once switch RS-232 control to output Receiver all control can only be done under RS-232 system. 3. Output Receiver's RS-232 equipment baud rate must be set correctly in order to allow the Matrix to send through the commands.
-
Page 14: Rs-232 Uart Command Illustration Diagram
6.8 RS-232 UART Command Illustration Diagram UARTSW 0 Note: This command allows RS-232 to control IR OUT UARTSW 0 IR IN IR IN IR OUT HDMI OUT CAT5e/6/7 OUT CAT5e/6/7 OUT IR IN IR OUT IR OUT IR IN IR OUT HDMI OUT CAT5e/6/7 OUT CAT5e/6/7 OUT... -
Page 15: Telnet Control
6.9 Telnet Control Before attempting to use the telnet control, please ensure that both the Matrix (via the 'CONTROL' port) and the PC/Laptop are connected to the active networks. To access the telnet control in Windows 7, click on the 'Start' menu and type "cmd"... - Page 16 Type “IPCONFIG” To show all IP configurations. To reset the IP, type “RSTIP” and to use a set static IP, type ”SETIP” (For a full list of commands, see Section 6.7). Note: All the commands will be not executed unless followed by a carriage return.
-
Page 17: Web Gui Control
6.10 Web GUI Control On a PC/Laptop that is connected to the same active network as the Matrix, open a web browser (suggest using Internet Explorer Browser ver.9 and above) and type device's IP address on the web address entry bar. The browser will display the device's status, control and User setting pages. - Page 18 Clicking on the 'User Setting' tab allows you to reset the IP configuration. The system will ask for a reboot of the device every time any of the settings are changed. The IP address needed to access the Web GUI control will also need to be changed accordingly on the web address entry bar.
-
Page 19: Connection Diagram
7. CONNECTION DIAGRAM ZONE ZONE ZONE ZONE ZONE ZONE IR1 Extender IR1 Extender IR1 Extender IR1 Extender HDMI Out HDMI Out HDMI Out HDMI Out RS232 Out IR2 Blaster RS232 Out IR2 Blaster RS232 Out IR2 Blaster RS232 Out IR2 Blaster RS-232 Device RS-232 Device RS-232 Device... -
Page 20: Specifications
8. SPECIFICATIONS Video Bandwidth 225MHz/6.75Gbps Input Ports 4 x HDMI, 5 x IR Extender, 1 x RS-232, 1 x LAN (Control only), 1 x RJ45 (Control Only), 1 x USB Mini-B (Service Only) Output Ports 2 x HDMI, 4 x CAT5e/6/7, 5 x IR Blaster Power Supply 24V / 3.75A DC (US/EU standards, CE/ FCC/UL certified) -
Page 21: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition multimedia Interface... - Page 22 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CMSI46PL...
