Summary of Contents for CYP CMSI-8H8HS

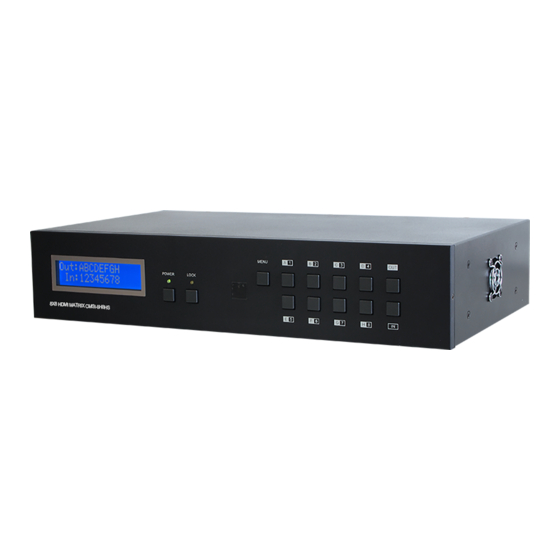

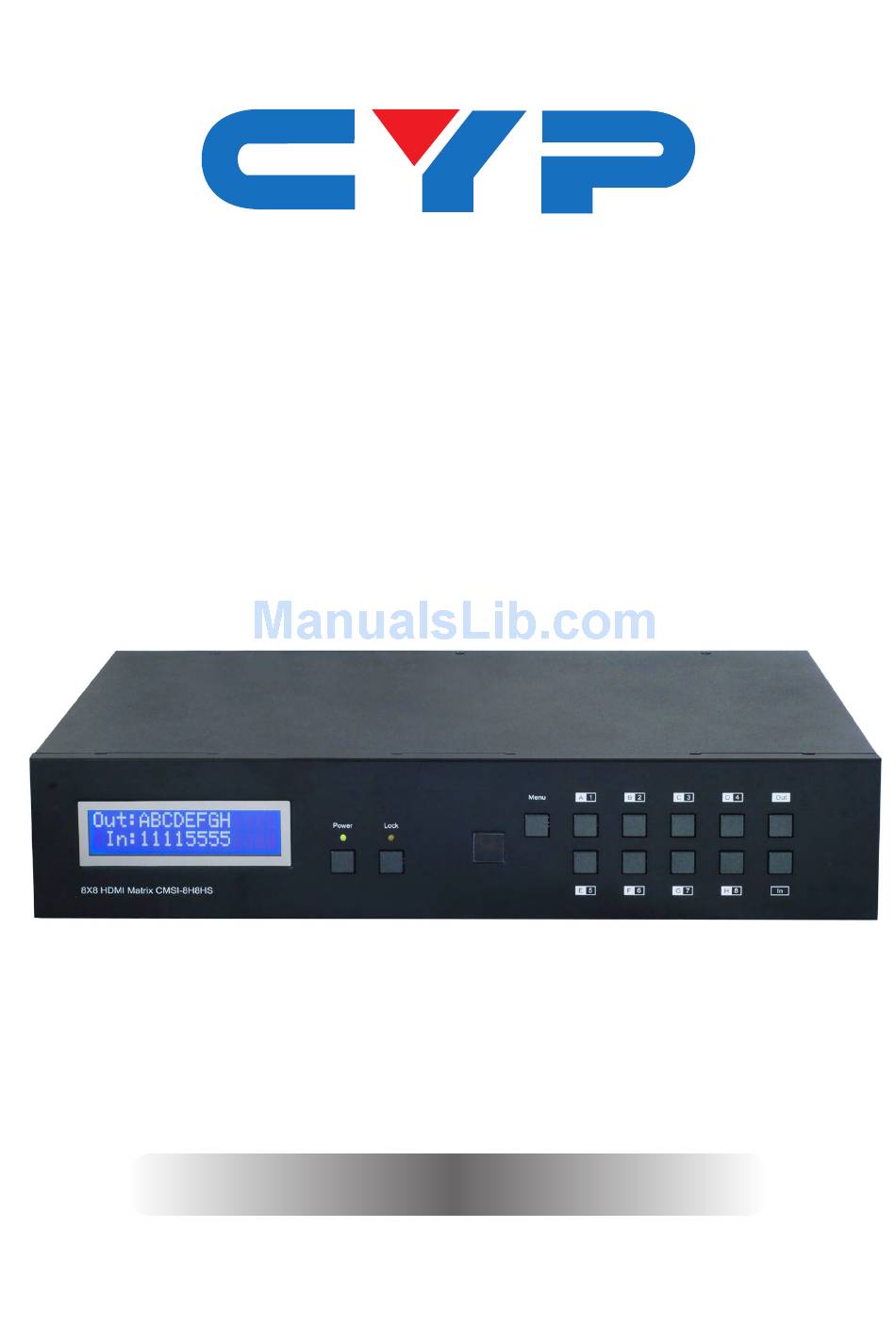

- Page 1 CMSI-8H8HS 8 x 8 HDMI Matrix Operation Manual Operation Manual...
-
Page 3: Copyright Notice
DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. -
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents ........1 4. System Requirements ......1 5. Features ............ 1 6. Operation Controls and Functions ..2 6.1 Front Panel ..........2 6.2 Rear Panel ...........3 6.3 Side Panel ...........4 6.4 Remote Control ........4 6.5 RS-232 Protocols .........5 6.6 RS-232 Commands ......6... -
Page 6: Introduction
1. INTRODUCTION The 8 x 8 HDMI Matrix is a fabulous device for organizing and distributing your HDMI signals. With 8 HDMI input ports and 8 HDMI output ports this device allows a great amount of sources and display to be used motivationally. Moreover, with plenty of control systems such as IR, RS-232 and remote control allow user for all kinds of control habit and occasion to be used. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel This monitor displays your setting information with each input and output selection. POWER button & LED Press this button to turn on the device and the green LED will illuminate when the power is on. When the LED illuminate in red it is in standby mode LOCK button &... -
Page 8: Rear Panel
example, output A ~ D wish to select input 1 and E ~ H wish to select input 2. Press Out →A→B→C→D→In→1→Menu, and then press Out →E→F→G→H→In→2→Menu. If the menu button is not press the selection will not be changed. 6.2 Rear Panel 2 3 4 Reserved. -
Page 9: Side Panel
DC24V This slot is to plug the power cord with adaptor included in the package and then connect them with AC wall outlet for power supply. 6.3 Side Panel VENTILATOR These are fan ventilator area, DO NOT block these area or cover it with any object. -
Page 10: Rs-232 Protocols
6.5 RS-232 Protocols CMSI-8H8HS Remote Control Console Assignment Assignment ► ◄ Baud Rate: 19200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1... -
Page 11: Rs-232 Commands
6.6 RS-232 Commands Command Description A1~A8 Switch output A to 1~8 B1~B8 Switch output B to 1~8 C1~C8 Switch output C to 1~8 D1~D8 SWITCH OUTPUT D TO 1~8 E1~E8 SWITCH OUTPUT E TO 1~8 F1~F8 SWITCH OUTPUT F TO 1~8 G1~G8 SWITCH OUTPUT G TO 1~8 H1~H8... -
Page 12: Connection And Installation
7. CONNECTION AND INSTALLATION Monitor Blu-ray Blu-ray Blu-ray Blu-ray... -
Page 13: Specifications
8. SPECIFICATIONS Maximum TMDS Bandwidth 6.75 Gbps Input Ports 8 x HDMI, 1 x IR, 1 x RS-232, 1 x mini USB B type (for firmware update only), 1 x RJ-45 (LAN) Output Ports 8 x HDMI ESD Protection Human body model: ±... -
Page 14: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Digital Theater System Digital Visual Interface EDID Extended Display Identification Data HDCP High-bandwidth Digital Content Protection HDMI High-Definition Multimedia Interface HDTV High-Definition Television Liquid Crystal Monitor Universal Serial Bus Video Graphics Array WUXGA Wide Ultra Extended Graphics Array... - Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
