4.1.6 Assembling the softener with-
out a bypass valve
– At first flush the pipe with the newly
installed bypass valve (JQE) and shut off
the water supply.
– After flushing the water pipe take off the
assembly cover of the built-in rotary
flange.
The connection flange of the softener is
covered by a white protective disc. This pro-
tective disc is fastened with four cylinder
head screws M6x25.
– Loosen all four cylinder head screws
M6x25, but don't remove them (bayonet
fixture)!
– Remove the white protective disc.
ATTENTION
Do not grasp into the connection flange
of the device after removing the white
protective disc (danger of violent pres-
sure)!
The section of the profiled flange gasket
must point towards the Built-in rotary flange.
Failure to observe this can lead to leaks and
water escaping. This can in turn cause water
damage to the house and its installations.
Profiled flange gasket

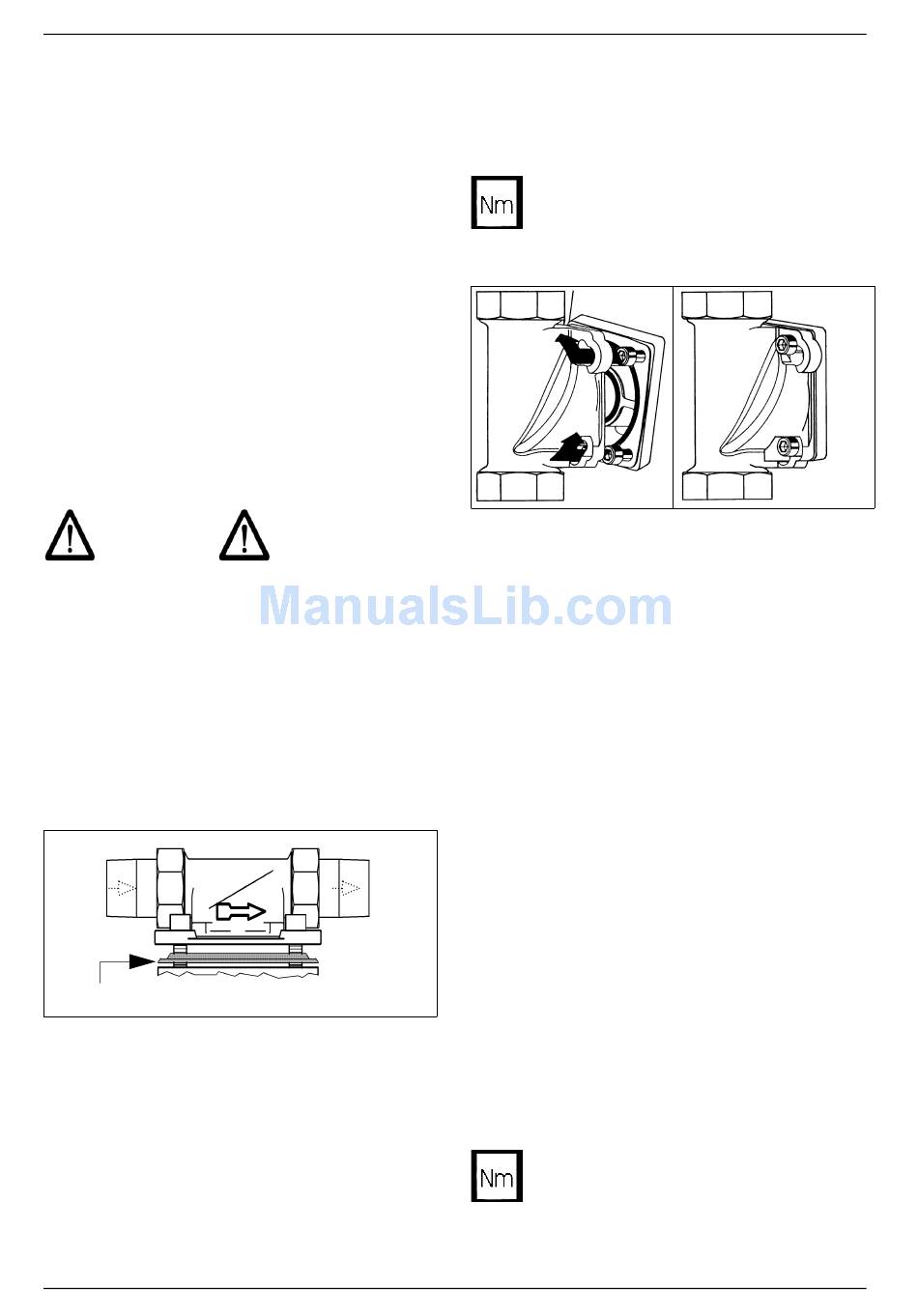

Fig. 7: Profiled flange gasket
– Lift up the softener and swivel it through
approx. 30° in an anti-clockwise direction.
– Position it on the bulit-in rotary flange so
that the screw heads pass through the
bayonet fixing drill holes (see Fig. 7 I).
Installation
– Swivel the softener through approx. 30°
back in a clockwise direction.
– Tighten the four cylinder head screws
M6x25 (see Fig. 7 II).
Fig. 8: Built-in rotary flange with bayonet fixture
After assembling the softener unscrew the
wall support so far that it rests against the
softener casing and the softener hangs
vertically to the wall.
4.1.7 Assembling the bypass valve
By assembling a bypass valve between the
built-in rotary flange and the softener a
bypass piping becomes redundant.
– At first flush the pipe with the newly
installed bypass valve (JQE) and shut off
the water supply.
– After flushing the water pipe take off the
assembly cover of the built-in rotary flange.
– Connect the bypass valve on the flange
side with the cast in letter "R" (pipe
flange) to the built-in rotary flange by
engaging the bayonet fitting (see fig. 8).
– Tighten the four cylinder head screws
M6x25.
JUDO QUICKSOFT-UNO
Select the torque (approx. 4 Nm) so
that the gasket closes and the
softener is not damaged or strained!
I
(accessories)
Select the torque (approx. 4 Nm) so
that the gasket closes!
II
