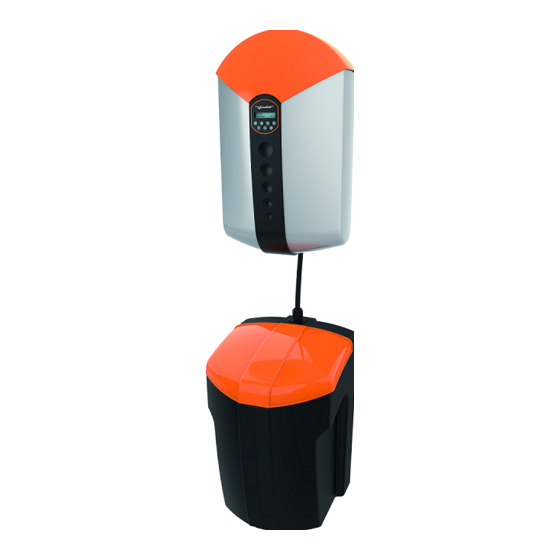

Judo i-soft Installation And Operating Instructions Manual

Fully automated water softener
Hide thumbs
Table of Contents

Advertisement

Quick Links

Attention:
Carefully read through the instal-
lation and operating instructions
and safety information before
installing and putting the unit into
service.
These must always be issued to
the owner/user.
Installation and operating
instructions
JUDO i-soft
Fully automated water softener
Valid for: EU countries and Switzerland
Language: English
Fig.: i-soft

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i-soft and is the answer not in the manual?

Questions and answers

Related Manuals for Judo i-soft

Summary of Contents for Judo i-soft

  • Page 1 Installation and operating instructions JUDO i-soft Fully automated water softener Valid for: EU countries and Switzerland Language: English Attention: Carefully read through the instal- lation and operating instructions and safety information before installing and putting the unit into service. These must always be issued to the owner/user.
  • Page 2 71364 Winnenden Germany Trademarks: Trademarks used in this document are protected and registered trademarks of the respective holder. © JUDO Wasseraufbereitung GmbH D-71364 Winnenden All rights reserved. Reprints – even of extracts – is only permitted with special approval. JUDO i-soft...
  • Page 3 JUDO i-soft...

  • Page 4: Table Of Contents

    9.5 Scope of supply......28 1.3 Units used........5 9.6 Accessories ....... 28 2. Intended use ........6 10. Positions i-soft ........ 30 2.1 Water pressure ......7 11. Customer support ......32 2.2 Notes on special dangers .... 7 3.

  • Page 5: Symbols Used

    °F = 9/5°C + 32 – cleaning information must always be observed and kept in a fully 1 bar = 10 Pa = 0.1 N/mm² legible condition. = 14.5 psi 1" DN 25 °e °e = 0.142 mmol/l alkaline earth ions JUDO i-soft...

  • Page 6: Intended Use

    Intended use also includes observing the washing machines and dishwashers. instruction manual. The manufacturer/supplier must always be consulted before using the softener outside the use limitations given in the instruction manual. JUDO i-soft...

  • Page 7: Water Pressure

    Only use low voltage for remote 5 bar (72.5 psi). It works most economically transmission of error messages via under these pressure conditions. the potential-free output! Switching voltage....maximal 24 V Current ........maximal 1 A (see chapter “Potential-free error message”) JUDO i-soft...

  • Page 8: Product Information

    (see chapter “Modifica- tions / changes / spare parts”). JUDO i-soft...
  • Page 9 (see fig. 4). available. Failure to comply with this means the 4.1.2 Installation position softener cannot work. ATTENTION ATTENTION (see chapter “Safety information (see chapter “Safety information dangers due to non-compliance”) dangers due to non-compliance”) JUDO i-soft...
  • Page 10 When mounting the wall support (order no. 2201227), please refer to the corresponding assembly instructions. The console set (order no. 2201231) mainly serves to secure the unit, and ease the burden on the tubing. JUDO i-soft...

  • Page 11: Mounting The Softener Without A Bypass Valve

    Profiled flange gasket side with the cast in letter “R” (pipe flange) to the built-in rotary flange by – Lift up the softener and swivel it through engaging the bayonet fitting (see fig. 8). approx. 30° in an anti-clockwise direction. JUDO i-soft...

  • Page 12: Mounting The Softener To The Pre-Assembled Bypass Valve

    M6x130 and two threaded bolts M6x137 with nuts. Prior to removing the protector cap, the two threaded bolts M6x137 with nuts have to be removed and replaced with the provided cylinder screws M6x130. JUDO i-soft...

  • Page 13: Connecting The Softener With The Salt Container

    3. Push the connector (3a) of the electrode 30 mm (1.2 inch). cable into the cable housing (3b) as far as it will go. When doing so, pay attention that the white marks on the connector (3a) and the cable housing (3b) correspond (correct polarity)! JUDO i-soft...

  • Page 14: Wastewater Connection And Back-Up Overflow Hose

    (see chapter “Accesso- ries”). ATTENTION (see chapter “Safety information dangers due to non-compliance”) An adequately dimensioned wastewater connection (e. g. floor drain) to DIN 1986, or local equivalent, must be available for the wastewater and the back-up overflow hose. JUDO i-soft...

  • Page 15: Operation

    During system operation, regulation of resi- flushed and regenerated immediately for dual hardness to the preset value is auto- venting after the water supply is opened. matically regulated. To achieve this, approx. 10 litres of water must flow through the softener. JUDO i-soft...
  • Page 16 1000 mg of Ensure that the readjusted mixed water is sodium per litre. Values may vary in other supplied from the water softener to the tap- countries, please consult your local regula- ping point. tions. JUDO i-soft...
  • Page 17 The raw water sodium steps of 2 °e. Please observe the limitations. concentration will not be considered in the calculation performed by the electronics unit. Upon exceeding a limit value stipulated by local drinking-water regulations, the display first indicates: JUDO i-soft...
  • Page 18 Contact 1 ON °dH German France Contact 2 ON °TH French Great Britain Contact 3 ON °e Englisch USA/ Canada Contact 1+2 ON Grains per Gallon Englisch Belgium Contact 1+3 ON °TH Flemish Italy Contact 2+3 ON °TH Italian JUDO i-soft...

  • Page 19: Functional Description Of The Water Softener

    For each regeneration, approx. 200 g of salt disinfected to prevent contamination. The is used. The regeneration salt has to be tiny amount of chlorine required for this step filled up regularly. is produced from the drawn-in brine in an electrolytic process during regeneration. JUDO i-soft...

  • Page 20: Potential-Free Error Message

    Salt deficit – in case of power failure – in case of insufficient salt After this message, fill with 25 kg of regener- ation salt. Then press the <OK> key briefly. This will reset the warning message. JUDO i-soft...

  • Page 21: Integrating The Water Softener Into A Central Building Control System

    The connecting central building control system. flange must be protected against dirt and damage. If the softener is refitted and put back into service, regeneration must always be carried out first (see chapter “Operational start”). JUDO i-soft...

  • Page 22: Resetting To Factory Settings

    Attention! Due to raw water hardness and the (see chapter 5.1.2 Sodium limit value residual hardness setting, the sodium “Limitations for residual threshold value stipulated by the drinking hardness settings”) water regulation is exceeded. JUDO i-soft...

  • Page 23: Faults

    Water supply might be interrupted. If the refill cause cannot be found, contact customer service. Deleting the fault: Disconnect the transformer from the socket. Plug it back in after approx. 5 seconds! Please always indicate the device and order number (see chapter “Technical specifications”). JUDO i-soft...

  • Page 24: Maintenance

    JUDO i-soft...

  • Page 25: Data Sheet

    Data sheet Operating weight when filled approx. with salt 75 kg Type Shipping weight approx. JUDO i-soft 28 kg Fully automated water softener Nominal flow rate 1.8 m³/h Order no.: 8203019 Flow pressure at nominal 2 bar flow rate at least...

  • Page 26: Diagrams

    Fig. 13: Pressure loss in normal operating position Max. possible quantity drawn off daily depending on the raw water hardness and a mixed water hardness of approx. 10 °e. Raw water hardness [°e] Fig. 14: Amount drawn off daily JUDO i-soft...
  • Page 27 Wastewater quantity related to 1 m³ of mixed water with 10 °e depending on the raw water hardness. Raw water hardness [°e] Fig. 16: Wastewater quantity Salt consumption related to 1 m³ of mixed water with 10 °e depending on the raw water hardness. Raw water hardness [°e] Fig. 17: Salt consumption JUDO i-soft...

  • Page 28: Installation Dimensions

    Our recommendation: centre with JQX Install a JUDO JULIA metering pump in the minimum distance between mixed water pipe downstream of the softener and salt container softener, in order to proportionately enrich 390 width of the salt container the water with a JUL mineral solution.
  • Page 29 Data sheet Fig. 19: Electrical circuit with failure signal relay JUDO i-soft...

  • Page 30: Positions I-Soft

    Positions i-soft Positions i-soft 20 mm < (0.8 inch) Fig. 20: Positions JUDO i-soft JUDO i-soft...
  • Page 31 I/O cable electrical circuit plastic blind revet panelling complete middle faceplate complete 12a keypad i-soft I/O module Worn parts Order no. Suction strainer 2201270 O-ring 43x3 2201316 Impeller 2201258...

  • Page 32: 11. Customer Support

    +43 (0)22 66 / 6 40 78 • fax: +43 (0)22 66 / 6 40 79 email: info@judo-online.at • www.judo.eu JUDO Waterbehandeling GmbH • Filiaal / Filiale BeNeLux Laerbeeklaan 72 A1 • 72 A1, Avenue du Laerbeek • 1090 Brussels • Belgium phone: +32 (0)24 60 12 88 •...
