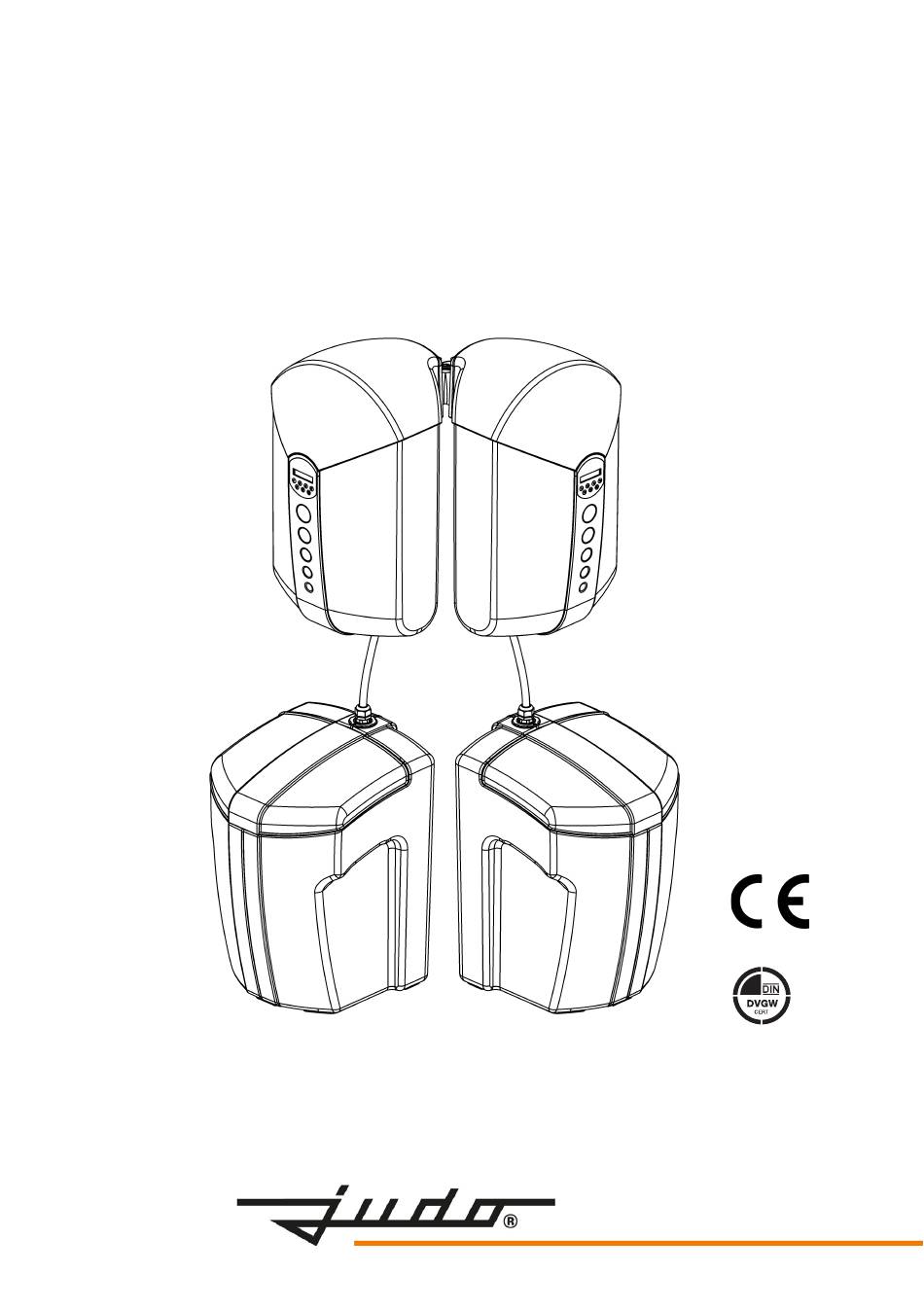

- Page 1 Installation and operating instructions JUDO i-soft TGA 4 Fully automatic water softening system Valid for: EU countries and Switzerland Language: English Read before use and store!
- Page 2 Trademarks used in this document are protected and registered trademarks of the respective holder. © JUDO Wasseraufbereitung GmbH 71364 Winnenden Germany All rights reserved. Reprints – even of extracts – is only permitted with special approval. JUDO i-soft TGA 4...
- Page 3 JUDO i-soft TGA 4...
-
Page 4: Table Of Contents
5.8 Leakage alarm......21 5.9 Potential-free signal relay ..24 5.10 Integration of the water softening system in building control systems 5.11 Connectivity module (accessory)... 5.12 Conversions / changes / spare parts........... 25 5.13 Maintenance/repair....25 JUDO i-soft TGA 4... -
Page 5: About These Operating Instructions
Therefore, these operating instructions must be read by the installer and the responsible technical personnel/operators prior to instal- lation, commissioning and servicing. JUDO i-soft TGA 4... -
Page 6: Safety Instructions And Dangers Due To Non-Observation
= 0.142 mmol/l hard- Alkaline earth ions The manufacturer/supplier must be consult- ness (hardness ed before using the water softening system producing ions) outside the limits of use described in these = 14.2 ppm CaCO operating instructions. JUDO i-soft TGA 4... -
Page 7: Water Pressure
7 bar, a pressure reducer must be installed or comply with the legal regulations for wet upstream of the water softening system areas. (see fig. 1). If the operating pressure is great- er than 7 bar, malfunctions can occur. JUDO i-soft TGA 4... -
Page 8: Product Information
Hygienic Assessment of Organic Ma- terials in Contact with Drinking Water) of the German Federal Environmental Agency (UBA). Metallic materials fulfil the require- ments of DIN 50930-6 (Effect of metallic ma- terials on the quality of drinking water). JUDO i-soft TGA 4... -
Page 9: Installation
4 “Installation” must be precisely followed! If the waste water cannot be safely and completely drained, it is possible that JUDO i-soft TGA 4... -
Page 10: Installation Of The Water Softening System
The rotary flange fitting must be installed – Connect the flange of the parallel quick- in the direction of flow. This is indicated assembly kit to the rotary flange fitting by by an arrow integral with the casting (see JUDO i-soft TGA 4... - Page 11 The bracket set (2 brackets with one pipe clamp each) is screwed to the wall with 4 hexagon head screws. Notes on installing the wall support (contain- er support) are included in the correspond- ing installation instructions. JUDO i-soft TGA 4...
-
Page 12: Connection Of The Water Softener With The Salt Reservoir
2. To lock, turn the lance through 90° in the clockwise direction (up to the stop). Note the marking arrow: The arrow must now point to the front side of the salt reservoir (see fig. 5)! JUDO i-soft TGA 4... -
Page 13: Waste Water Connection And Safety Overflow Hose
Connection to the water trap If a continuous incline to the water trap can- regeneration waste water. not be achieved at the location of installa- tion, then a saltwater-resistant pumping sys- tem must be installed to convey the JUDO i-soft TGA 4... -
Page 14: Operation
(Only visible, if the leakage alarm is activat- One menu level back ed. For activation, see chapter 5.8.1.) without saving – Start sleep mode Direct access to the information menu (see section „• Info“ in chapter 5.3) JUDO i-soft TGA 4... -
Page 15: Start Of Operation
Start of operation tem must be immediately flushed and re- generated for bleeding: – To shorten commissioning, fill approxi- See chapters 5.4.1 and 5.4.2 for this pur- mately 5 litres of water into the salt res- pose! JUDO i-soft TGA 4... - Page 16 Press the <OK> key. The display shows the ter flow (one tap fully open). During drawing, following: no large volume of water should be drawn at another point. Regeneration start Pressing <OK> starts regeneration. Then “Regeneration” is output to the display. JUDO i-soft TGA 4...
- Page 17 The electronics do not take into account the sodium content of the raw water. If the limit value of the drink- ing water ordinance is exceeded, the follow- ing messages appear on the display: Attention! Sodium limit val JUDO i-soft TGA 4...
- Page 18 5.15 “Resetting to factory setting”). quality. If, for example, the water hardness is set at 8 °e, but the residual hardness measured is 10 °e, the water hardness can be adapted as follows: JUDO i-soft TGA 4...
-
Page 19: Menu Structure
Operation Menu structure Fig. 10: Menu structure JUDO i-soft TGA 4... -
Page 20: Function Description
Regeneration is performed according to DIN EN 14743 and DIN 19636-100 using miser salting. Disin- fection of the system takes place at regular intervals to prevent microbe contamination. The small quantity of chlorine required for JUDO i-soft TGA 4... -
Page 21: Filling With Salt
The Refill Quantity menu can be accessed If any of these limits are exceeded, this will even if no warning message has occurred be signalled on the display and via the float- JUDO i-soft TGA 4... - Page 22 This is necessary if large hours in the “Settings / Leak Protection” water volumes are required in an uninter- menu. rupted period, e.g. garden sprinkling, filling up of a swimming pool or garden pond. JUDO i-soft TGA 4...
- Page 23 If under the Drawing time is not monitored normal consumption habits a limit value is during softener regeneration. regularly exceeded without a leak being pre- sent, the corresponding limit value can be reset to a larger value. JUDO i-soft TGA 4...
-
Page 24: Potential-Free Signal Relay
mation, automated messages and functions Press key <OK> 1x and then key as often of the water softening system is possible. as necessary, until the display indicates the following: Setting • Fault relay JUDO i-soft TGA 4... -
Page 25: Conversions / Changes / Spare Parts
– Once the water softening system is fitted – Fault indication relay: NOC function and started again, it must be flushed and regenerated (see chapter 5.4 “Start of – Lighting 80 %, contrast 50 % operation”). JUDO i-soft TGA 4... -
Page 26: Overview Of The Display Messages
Leakage alarm The message appears if sleep see chapter 5.8.2 1...10 hours off mode is enabled. “Sleep mode” JUDO i-soft TGA 4... -
Page 27: Fault
(methylated spirits). vice number and order number avail- These substances can chemically attack the able (see fig. 8). plastic parts resulting in embrittlement and even breakage. Therefore do not use these types of cleaner! JUDO i-soft TGA 4... -
Page 28: Warranty And Maintenance
(see fig. 5, pos. 6) in the operat- al solutions, salt or wear parts, etc. is per- ing position. formed by the JUDO factory customer ser- vice team or by an approved technical – Soft water hardness. service provider. -
Page 29: Data Sheet
Data sheet Capacity per kg regenerat- 6 mol ing salt Type Total content of the two salt 100 kg JUDO i-soft TGA 4 reservoirs Fully automatic water softening system Order no.: 8204016 Volume of the exchanger approx. resin 12 l... -
Page 30: Installation Dimensions
Maximum gap between water softening system Our recommendation: and salt reservoir Installation of a JUDO JULIA dosing pump in 990 Total width of the salt reservoirs the mixing water pipe downstream of the 475 Depth of the salt reservoirs water softening system, so that the water... - Page 31 Data sheet Fig. 12: Electronic control unit with fault message relay JUDO i-soft TGA 4...
-
Page 32: Spare Parts
Spare parts Spare parts QR code Fig. 13: Spare parts JUDO i-soft TGA 4 JUDO i-soft TGA 4... -
Page 33: Disposal
Disposal Spare parts list i-soft TGA 4 Designation (recommended average replacement interval Item Art. no. AU for wear part [*]) Wear part set “Conductivity sensor and intake strainer” ** 2201382 Wear part set “Pressure regulator” **** 2200582 Spare part set “Injector”... - Page 34 Notes JUDO i-soft TGA 4...
- Page 35 Notes JUDO i-soft TGA 4...
-
Page 36: Customer Service
Tel. +41 (0)61 906 40 50 • Fax +41 (0)61 906 40 59 e-mail: info@judo-online.ch • judo-online.ch JUDO Wasseraufbereitung GmbH • Filiaal - Filiale BeNeLux Laarbeeklaan - Av. du Laerbeek, 72 A1 • B-1090 Brussel - Bruxelles Tel./Tél. +32 (0)24 60 12 88 • Fax +32 (0)24 61 18 85 e-mail: info.benelux@judo.eu •...
