Judo QUICKSOFT-P Installation And Operating Instructions Manual

Water softening system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Attention:
Carefully read through the instal-
lation and operating instructions
and safety information before
installing and putting the unit into
service.
These instructions must always
be issued to the owner/user.
Installation and operating
instructions
JUDO QUICKSOFT-P
Water softening system
Valid for: EU countries and Switzerland
Language: English

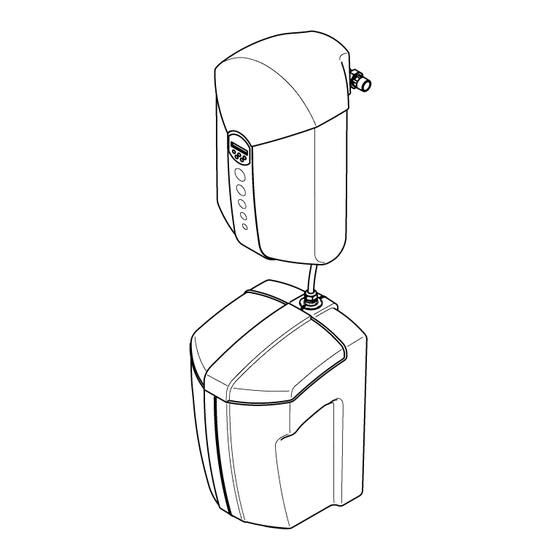

Fig.: JQS-P
DVGW-
Certification
applied for

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUICKSOFT-P and is the answer not in the manual?

Questions and answers

Related Manuals for Judo QUICKSOFT-P

Summary of Contents for Judo QUICKSOFT-P

  • Page 1 Installation and operating instructions JUDO QUICKSOFT-P Water softening system Valid for: EU countries and Switzerland Language: English Attention: Carefully read through the instal- lation and operating instructions and safety information before installing and putting the unit into service. These instructions must always be issued to the owner/user.
  • Page 2 This device is suitable for use in cold judo.eu drinking water up to a maximum water and ambient temperature of 30 °C. Office address The remote control of the JUDO JUDO Wasseraufbereitung GmbH QUICKSOFT-P via mobile phones Hohreuschstraße 39 - 41 and tablets using the connectivity...
  • Page 3 JUDO QUICKSOFT-P...
  • Page 4 5.1 Control panel ......16 5.2 Menu functions ......16 5.3 Operating mode......17 5.4 Menu structure......20 5.5 Function description ....21 5.6 Filling with salt ......22 5.7 Potential-free fault indication ..23 5.8 Integration of the water JUDO QUICKSOFT-P...

  • Page 5: About These Operating Instructions

    Fig. 1: Rotary flange fitting Therefore, these operating instructions must be read by the installer and the responsible technical personnel/operators prior to instal- lation, commissioning and maintenance. JUDO QUICKSOFT-P...

  • Page 6: Safety Instructions And Dangers Due To Non-Observation

    1 bar = 100000 Pa = 0.1 N/mm² ≈ 14.5 psi Tempera- °F °F = °C · 1.8 + 32 ture Water °e 1 °e = 0.142 mmol/l hardness Alkaline earth ions (hardness producing ions) = 14.2 ppm CaCO JUDO QUICKSOFT-P...

  • Page 7: Intended Use

    If outside the limits of use described in these the water softening system is not regularly operating instructions. serviced, the softening function can be im- paired. JUDO QUICKSOFT-P...

  • Page 8: Indication Of Particular Dangers

    Electrical devices/installations that are not splash-proof and are located in the vicinity of the water softening system may be dam- aged by water that escapes during regener- JUDO QUICKSOFT-P...

  • Page 9: Product Information

    (cation exchangers) in drinking water installations”). All materials are hy- gienically and physiologically harmless. Plastics fulfil the KTW Guideline (Guideline for the Hygienic Assessment of Organic Ma- terials in Contact with Drinking water) of the German Federal Environmental Agency JUDO QUICKSOFT-P...

  • Page 10: Installation Of The Rotary Flange Fitting (Jqe)

    Fig. 3: Rotary flange fitting If this requirement is ignored, the Always install the water softening water softening system will not system in an upright position (± work. 5°)! If this is not observed, incor- rect functioning may result. JUDO QUICKSOFT-P...

  • Page 11: Installing The Wall Support Components

    The profile of the profile flange seal must the mounting cover of the rotary flange point towards the rotary flange fitting (see fitting. fig. 5). If this is not observed, the sealing JUDO QUICKSOFT-P...
  • Page 12 Rotary flange fitting with bayonet After installation of the water softening sys- tem, screw out the wall support until it touch- es the cladding of the water softening sys- tem and the device hangs vertically on the wall. JUDO QUICKSOFT-P...

  • Page 13: At The Already Installed Bypass Valve

    The profile of the profile flange seal must point towards the bypass valve. If this is not observed, the sealing may not be perfect re- sulting in water escaping. This could result in water damage to the home and furnish- ings and equipment JUDO QUICKSOFT-P...

  • Page 14: Connection Of The Water Softening System With The Salt Reservoir

    (see fig. 8)! 2. To lock, turn the lance through 90° in the clockwise direction (up to the stop). Note the marking arrow: The arrow must now point to the front side of the salt reservoir (see fig. 8)! JUDO QUICKSOFT-P...

  • Page 15: Waste Water Connection And Safety Overflow Hose

    Waste water hose Water trap Safety overflow hose Fig. 9: Connection to the water trap If the connection for the drain is higher, the salt container can be installed appropriately higher up using a wall bracket (siehe Kapitel „Accessories“). JUDO QUICKSOFT-P...

  • Page 16: Operation

    - Accept value and save dication”) and one menu level back - Acknowledge message – Factory setting (see chapter 5.13 “Resetting to factory Display background lighting: setting”) – None: normal operation – Alternating light blue/dark blue: With a water flow JUDO QUICKSOFT-P...

  • Page 17: Operating Mode

    – Open the water supply (stopcock or Status display: shut-off valve). After a successful conclusion, the following text is output to the display: – Ensure that the bypass valve (if in- stalled) is set to “Operate”. Operating SOFTwell P Fig. 12: Status display JUDO QUICKSOFT-P...
  • Page 18 For a correct high, a reduced water volume is treated. If measuring value comparison, the samples the raw water hardness is low, a greater wa- should be taken with a normal water flow ter volume is treated. JUDO QUICKSOFT-P...
  • Page 19 1000 water legislation of 200 mg/l, then it can be mg sodium per litre. corrected by increasing the mixing water hardness. The calculation of the sodium content must then be repeated. JUDO QUICKSOFT-P...

  • Page 20: Menu Structure

    Operation Menu structure <OK> wa er <OK> Manu start Regeneration - Sprache / Language <OK> - ontrast <OK> egeneration <OK> Info - Histor - Software version - Hardware version - Software version LCD Fig. 14: Menu structure JUDO QUICKSOFT-P...

  • Page 21: Function Description

    1.0 bar, than an overflow valve integrated in during regeneration. the control head opens so that hard water can bypass the system to limit the pressure loss. This means that the residual hardness temporarily increases in the pipe down- stream of the water softening system. JUDO QUICKSOFT-P...

  • Page 22: Filling With Salt

    The remaining salt stock is then primarily used for disinfection of the ion-exchange resin and the softening effect is reduced. In this way, the water softening system re- mains in a hygienic condition for weeks after the low regenerating salt state first occurs. JUDO QUICKSOFT-P...

  • Page 23: Potential-Free Fault Indication

    Setting • Fault relay Press the <OK> key. The display indicates the following: Fault relay Normally closed   Press key to change between <Nor- mally closed> and <Normally open>. The chosen setting is saved by pressing JUDO QUICKSOFT-P...

  • Page 24: Conversions / Changes / Spare Parts

    – The connection flange must be protect- ed against dirt and damage. – Once the water softening system is fitted and started again, it must be flushed and regenerated (see chapter 5.3 “Operating mode”). JUDO QUICKSOFT-P...

  • Page 25: Overview Of Display Messages

    (methylated spirits). vice number and order number avail- These substances can chemically attack the able (see fig. 11). plastic parts resulting in embrittlement and even breakage. Therefore do not use these types of cleaner! JUDO QUICKSOFT-P...

  • Page 26: Warranty And Service

    JUDO factory customer ser- – Soft water hardness. vice team or by an approved technical Checking is performed with a hardness service provider.

  • Page 27: Data Sheet

    Data sheet Data sheet Operating weight with full approx. salt charge 75 kg Type Shipping weight approx. JUDO QUICKSOFT-P 28 kg Water softening system Order no.: 8203511 Rated flow 1.8 m³/h Technical data Flow pressure at rated flow 2 bar at least –...

  • Page 28: Graphs

    Fig. 15: Pressure loss in operating position The maximum possible daily drawn volume dependent on the raw water hardness with a residual hardness of approximately 10 °e. Raw water hardness [°e] Fig. 16: Maximum possible daily drawn volume JUDO QUICKSOFT-P...
  • Page 29 Waste water volume relative to 1 m³ mixing water of 10 °e dependent on the raw water hardness. Raw water hardness [°e] Fig. 18: Waste water volume Salt consumption relative to 1 m³ of mixing water of 10 °e dependent on the raw water hardness. Raw water hardness [°e] Fig. 19: Salt consumption JUDO QUICKSOFT-P...

  • Page 30: Installation Dimensions

    370 Height of the overflow connection Our recommendation: Minimum separation between the Installation of a JUDO JULIA dosing pump in water softening system and the salt reservoir the mixing water pipe downstream of the water softening system, so that the water...
  • Page 31 Data sheet Fig. 21: Electronic control unit with fault message relay JUDO QUICKSOFT-P...

  • Page 32: Spare Parts

    Spare parts 10. Spare parts Fig. 22: Spare parts JUDO QUICKSOFT-P JUDO QUICKSOFT-P...
  • Page 33 Middle faceplate (including 2 plastic blind rivets item K and 2201861 AU membrane keyboard) 1) AU = Accounting unit 2) Accounting unit not specified at the time of going to press. Replacement interval: ** = 2 years, **** = 4 years JUDO QUICKSOFT-P...
  • Page 34 Notes JUDO QUICKSOFT-P...
  • Page 35 Notizen JUDO QUICKSOFT-P...

  • Page 36: Customer Service

    Postfach 380 • D-71351 Winnenden Tel. +49 (0)7195 / 692-0 e-mail: info@judo.eu • judo.eu JUDO Wasseraufbereitung GmbH • Niederlassung Österreich Zur Schleuse 5 • A-2000 Stockerau Tel. +43 (0)22 66 / 6 40 78 • Fax +43 (0)22 66 / 6 40 79 e-mail: info@judo-online.at •...
