Attention:
Carefully read through the instal-
lation and operating instructions
and safety information before
installing and putting the unit into
service.
These must always be issued to
the owner/user.
Installation and Operating
Instructions
JUDO QUICKSOFT-DUO
Softener
Valid for: EU countries and Switzerland
Language: English

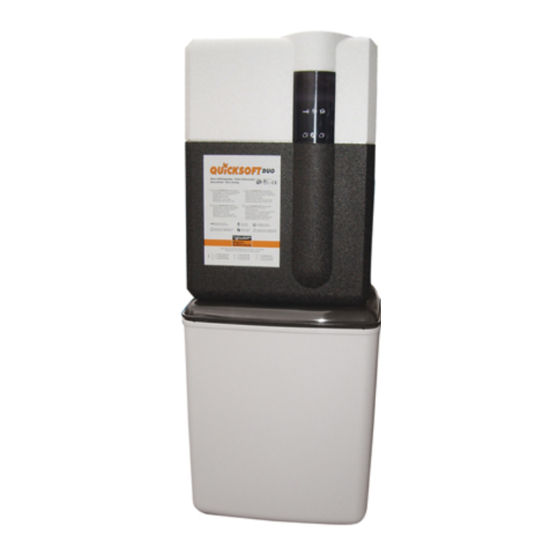

Fig.: JQS-D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUICKSOFT-DUO and is the answer not in the manual?

Questions and answers

Related Manuals for Judo QUICKSOFT-DUO

Summary of Contents for Judo QUICKSOFT-DUO

  • Page 1 Installation and Operating Instructions JUDO QUICKSOFT-DUO Softener Valid for: EU countries and Switzerland Language: English Attention: Carefully read through the instal- lation and operating instructions and safety information before installing and putting the unit into service. These must always be issued to the owner/user.
  • Page 2 71364 Winnenden Germany Trademarks: Trademarks used in this document are protected and registered trademarks of the respective holder. © JUDO Wasseraufbereitung GmbH 71364 Winnenden Germany All rights reserved. Reprints – even of extracts – is only permitted with special approval.
  • Page 3 JUDO QUICKSOFT-DUO...

  • Page 4: Table Of Contents

    Apart from the instruction manual and the legally binding accident prevention provi- sions applicable in the country and place of use, the recognized technical regulations for safe and proper work must also be observed. JUDO QUICKSOFT-DUO...

  • Page 5: Symbols Used

    – direction of flow (see Fig. 1) 1" DN 25 – rating plate °e = 0.142 mmol/l – cleaning information °e alkaline earth ions must always be observed and kept in a fully legible condition. Fig. 1: Built-in rotary flange JUDO QUICKSOFT-DUO...

  • Page 6: Intended Use

    Intended use also includes observing the washers. instruction manual. The manufacturer/supplier must always be consulted before using the softener outside the use limitations given in the instruction manual. JUDO QUICKSOFT-DUO...

  • Page 7: Water Pressure

    This can cause damage to important functional interior parts of the controls. The optimum operating pressure for the softener lies between 3 bar (43.5 psi) and 5 bar (72.5 psi). It works most econom- ically under these pressure conditions. JUDO QUICKSOFT-DUO...

  • Page 8: Product Information

    “Safety information (Impact on the drinking water quality). dangers due to non-compliance”) – The ambient temperature must not exceed 30 °C (86 °F)! – In order to be able to safely discharge the wastewater (regeneration) in opera- JUDO QUICKSOFT-DUO...
  • Page 9 (± 5°)! Failure to observe this can impair its function. 4.1.3 Power supply A splash proof socket is required for the power pack, in accordance with the legal regulations for wet rooms. Fig. 3: Built-in rotary flange JUDO QUICKSOFT-DUO...
  • Page 10 – Position it on the bulit-in rotary flange so wall support that the screw heads pass through the bayonet fixing drill holes (see Fig. 7 I). Fig. 5: Wall support with bypass valve For further information, please refer to the installation instructions for the wall support. JUDO QUICKSOFT-DUO...
  • Page 11 – After flushing the water pipe take off the assembly cover of the built-in rotary flange. – Connect the bypass valve on the flange side with the cast in letter "R" (pipe flange) to the built-in rotary flange by engaging the bayonet fitting (see fig. 8). JUDO QUICKSOFT-DUO...
  • Page 12 Select the torque (approx. 4 Nm) so that the gasket closes and the softener is not damaged or strained! After assembling the softener unscrew the wall support so far that it rests against the softener casing and the softener hangs vertically to the wall. JUDO QUICKSOFT-DUO...

  • Page 13: Operation

    – Mix in hard water using the setting screw electrical circuit (see chapter “Setting the of the blending valve (10) (see chapter raw water hardness”). “Setting the blending”). – Open the water inlet. Open the bypass – Fit the cover (2). valve. JUDO QUICKSOFT-DUO...
  • Page 14 To make an adjustment the allocated opposite to „ON“. contact of the DIP switch is moved to the position opposite to „ON“. Raw water hardness tens digit Raw water hardness units digit DIP switch (20) DIP switch (21) Fig. 9: DIP switch JUDO QUICKSOFT-DUO...
  • Page 15 200 mg/l. This does not apply to mineral and table water. Their limit values are considerably higher, some have values above 1000 mg of sodium per litre. JUDO QUICKSOFT-DUO...

  • Page 16: Functional Description

    However, the mixed water hardness in the pipe down- stream of the softener increases for a short time as a result. JUDO QUICKSOFT-DUO...

  • Page 17: Salt Fill

    Wastewater quantity up until then approx. 3.5 litres. – After this stroke the "Backwash" position (Pos. 3) is reached. The resin is flushed from below upwards. Duration 100 seconds, wastewater 3 – 4.5 litres. JUDO QUICKSOFT-DUO...

  • Page 18: Stoppages

    Failure to observe this can lead to an uncontrolled escape of water and there- fore lead to water damage in the building. Strictly comply with the instructions given in the “Installation” and “Maintenance” chap- ters. JUDO QUICKSOFT-DUO...

  • Page 19: Faults

    Without bypass facility: – Disconnect the power pack from the socket! (If installed, disconnect the power pack of the downstream metering pump too). – Immediately notify the fitter or nearest customer service (see chapter “Stoppa- ges”). JUDO QUICKSOFT-DUO...

  • Page 20: Maintenance

    For example, the salt packages should be cleaned before use so that contaminations cannot get into the salt solution container. The regenerating salt must be tipped directly from the opened package into the salt solution container. JUDO QUICKSOFT-DUO...

  • Page 21: Data Sheet

    Data Sheet Operating weight when filled approx. 60 with salt Type Shipping weight approx. 18 JUDO QUICKSOFT-DUO Softener Abbreviated name: JQS-D Nominal flow rate up to 1.6 m³/h Order No.: 8200320 Flow pressure at nominal 2 bar flow rate at least...

  • Page 22: Diagrams

    Fig. 12: Pressure loss in normal operating position Max. possible quantity drawn off daily depending on the raw water hardness and a mixed water hardness of approx. 10 °e. Raw water hardness [°e] Fig. 13: Amount drawn off daily JUDO QUICKSOFT-DUO...
  • Page 23 Raw water hardness [°e] Fig. 15: Wastewater quantity Salt consumption rela- ted to 1 m³ of mixed water with 10 °e depending on the raw water hardness. Raw water hardness [°e] Fig. 16: Salt consumption JUDO QUICKSOFT-DUO...

  • Page 24: Installed Dimensions

    – Bypass valve JQX (order no. 8735210) – Hardness measuring equipment JGHP 0-37.5°e (order no. 8742120) – Extension quick set JQR for series connection of two JUDO units (e. g. filter and softener) to a pipe connection (order no. 8250041) – Wall bracket for salt container (order no.

  • Page 25: Jqs-D Spare Parts

    JQS-D Spare Parts JQS-D Spare Parts JUDO QUICKSOFT-DUO...
  • Page 26 JQS-D Spare Parts JUDO QUICKSOFT-DUO...
  • Page 27 JQS-D Spare Parts JUDO QUICKSOFT-DUO...
  • Page 28 Setting: Raw water hardness units digit / Language setting: D, F, UK Cam-operated switch 2200713 Driving wheel 2201427 Electronic control 2201448 Casing 2200856 Unit no. O-ring 5x2 1609461 Sleeve 1440122 Solenoid 1500522 Countersunk head tapping screw 2.9x22 1650277 Locking plate ***** 1400079 Drive cylinder JUDO QUICKSOFT-DUO...
  • Page 29 O-ring 40x3 1200151 Driving slide ring 1420022 Driver 2201079 Wall support, complete 2200500 Rate regulator 1620213 Intake screen 2201270 O-ring 9.12 x3.53 1200251 Blending valve screw lower part 1120346 Blending valve cone 2200565 Cylinder head screw M5x80 1650195 JUDO QUICKSOFT-DUO...
  • Page 30 166 Spare parts kit for injector 2200585 167 Spare parts kit for water meter 2200763 1) AU = Accounting unit Replacement interval * = 1 year, ** = 2 years, *** = 3 years, **** = 4 years, ***** = 5 years JUDO QUICKSOFT-DUO...

  • Page 31: Service Record Sheet

    1) Is completed by the customer service department (S = Total sum, L= extended salting period, N= normal regeneration, K = reduced salting period) 2) Position 2 3) Position 3 4) Position 5 The values for intake time, wastewater produced, rinsing and initial filtrate apply to each regeneration stage. JUDO QUICKSOFT-DUO...

  • Page 32: 12. Customer Support

    Postfach 380 • D-71351 Winnenden Tel. +49 (0)7195 / 692-0 e-mail: info@judo.eu • www.judo.eu JUDO Wasseraufbereitung GmbH • Niederlassung Österreich Zur Schleuse 5 • A-2000 Stockerau Tel. +43 (0)22 66 / 6 40 78 • Fax +43 (0)22 66 / 6 40 79 e-mail: info@judo-online.at •...
