Attention:
Carefully read through the instal-
lation and operating instructions
and safety information before
installing and putting the unit into
service.
These must always be issued to
the owner/user.
Extended warranty peri-
od if a service agreement
is concluded!
Installation and Operating
Instructions

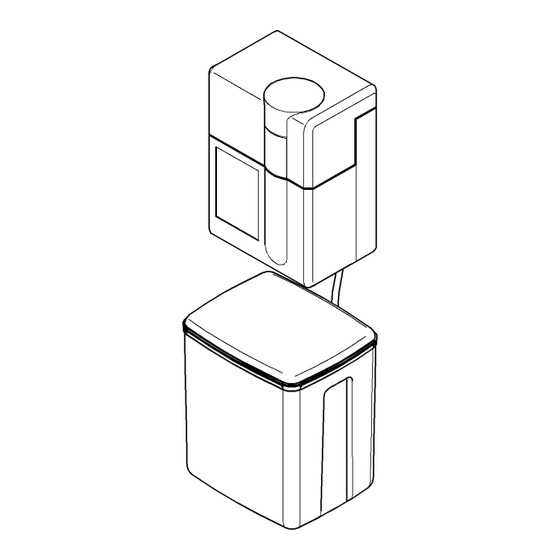

JUDO QUICKSOFT-UNO
Softener
Valid for: EU countries and Switzerland
Language: English
Fig.: JQS-U

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUICKSOFT-UNO and is the answer not in the manual?

Questions and answers

Related Manuals for Judo QUICKSOFT-UNO

Summary of Contents for Judo QUICKSOFT-UNO

  • Page 1 Installation and Operating Instructions JUDO QUICKSOFT-UNO Softener Valid for: EU countries and Switzerland Language: English Attention: Carefully read through the instal- lation and operating instructions and safety information before installing and putting the unit into service. These must always be issued to the owner/user.
  • Page 2 G E R M A N Y Trademarks: Trademarks used in this document are protected and registered trademarks of the respective hold- © JUDO Wasseraufbereitung GmbH D-71351 Winnenden All rights reserved. Reprints – even of extracts – is only permitted with special approval.
  • Page 3 JUDO QUICKSOFT-UNO...

  • Page 4: Table Of Contents

    Enclosure: Consultation Voucher Apart from the instruction manual and the le- gally binding accident prevention provisions applicable in the country and place of use, the recognized technical regulations for safe and proper work must also be observed. JUDO QUICKSOFT-UNO...

  • Page 5: Symbols Used

    Notes directly attached to the Softener, e.g. °e °e = 0,142 mmol/l alkaline – Direction of flow (see Fig. 1) earth ions – Rating plate – Cleaning information must always be observed and kept in a fully legible condition. Fig. 1: Built-in rotary flange JUDO QUICKSOFT-UNO...

  • Page 6: Intended Use

    The Softeners are only to be used in a tech- nically perfect condition, for their intended use, safely and aware of the dangers and with full observance of the instruction manu- Have any malfunctions corrected imme- diately! JUDO QUICKSOFT-UNO...

  • Page 7: Water Pressure

    30 bars frequently ation. occur. This can cause damage to important functional interior parts of the controls. The optimum operating pressure for the Softener lies between 3 bars and 5 bars. It works most economically under these pressure conditions. JUDO QUICKSOFT-UNO...

  • Page 8: Product Information

    (Cation Exchangers) in Drinking Water Installations”). All materials are hygienically and physiologically safe. Plastics (KTW rec- ommendations) and metallic materials fulfil the requirements of the BgVV (German Fed- eral Institute for Consumer Health Protec- tion and Veterinary Medicine). JUDO QUICKSOFT-UNO...

  • Page 9: Installation

    – The unit can be installed in all standard drinking water pipes. – It is not permitted to install the Softener upstream of the water meter! A power connection (230 V, 50 Hz), which is permanently live, must be available. JUDO QUICKSOFT-UNO...
  • Page 10 The installation height depends on the pipe layout. The minimum installation height from the floor to the rotary flange is 40 cm. The built-in rotary flange must be in- stalled in the direction of flow. This is JUDO QUICKSOFT-UNO...
  • Page 11 Hand lever b Built-in rotary flange c „R“ pipe flange d „G“ unit flange e Wall support Fig. 7: Wall support with bypass valve For further information, please refer to the installation instructions for the wall support. JUDO QUICKSOFT-UNO...
  • Page 12 The wastewater connection must not be lo- cated above the Softener. An adequately dimensioned wastewater connection (e.g. floor drain) to DIN 1986 must be available for the wastewater and the back-up overflow hose (6). JUDO QUICKSOFT-UNO...

  • Page 13: Operation

    (10) (see chapter ° electrical circuit (see chapter on “Setting on “Setting the blending”). the required mixed water hardness”). – Fit the cover (2). – Open the water inlet. Open the bypass valve. JUDO QUICKSOFT-UNO...
  • Page 14 DIP switch (21), contacts 1 to 4 (see Fig. 10). The allocated contact is moved downwards to make an adjustment. Raw water hardness tens digit Raw water hardness units digit DIP switch (20) DIP switch (21) Fig. 10: DIP switch JUDO QUICKSOFT-UNO...
  • Page 15 1.1.2003 the limit value for sodi- um in drinking water is 200 mg/l. This does not apply to mineral and table water. Their limit values are considerably higher, some have values above 1000 mg of sodium per litre. JUDO QUICKSOFT-UNO...

  • Page 16: Functional Description

    As the whole regener- ation including rinsing out the used brine on- ly takes around 9 minutes, this typical prop- erty of a single column system is hardly noticeable. JUDO QUICKSOFT-UNO...

  • Page 17: Salt Fill

    Wastewater quan- The brine stocks still available are primarily tity up until then approx. 3.5 litres. used for disinfecting the ion exchange resin – After this stroke the "Backwash" position and the softening effect is reduced. JUDO QUICKSOFT-UNO...

  • Page 18: Stoppages

    Strictly comply with the instructions given in the “Installation” and “Maintenance” chapters. Disconnect the power pack from the socket! (If installed, disconnect the power pack of the downstream metering pump too!) JUDO QUICKSOFT-UNO...

  • Page 19: Faults

    Without bypass facility: – Disconnect the power pack from the socket! (If installed, disconnect the pow- er pack of the downstream metering pump too). – Immediately notify the fitter or nearest customer service (see chapter on “Stop- pages”). JUDO QUICKSOFT-UNO...

  • Page 20: Maintenance

    Wherever possible, the regular servicing work and supply with consumables and wearing materials, etc. should be carried out by the specialist trade or the factory’s cus- tomer service department. JUDO QUICKSOFT-UNO...

  • Page 21: Data Sheet

    Data Sheet Operating weight when filled approx. with salt 90 kg Type Shipping weight approx. JUDO QUICKSOFT-UNO Softener 30 kg Abbreviated name: JQS-U Nominal flow rate up to 1.2 m³/h Order No.: 8200319 Flow pressure at nominal flow 2 bar...

  • Page 22: Diagrams

    Fig. 12: Pressure loss in normal operating position Max. possible quantity drawn off daily depending on the raw water hardness and a mixed water hardness of approx. 10 °e. Raw water hardness [°e] Fig. 13: Amount drawn off daily JUDO QUICKSOFT-UNO...
  • Page 23 Wastewater quantity related to 1 m³ of mixed water with 10 °e depending on the raw water hardness. Raw water hardness [°e] Fig. 14: Wastewater quantity Salt consumption related to 1 m³ of mixed water with 10 °e depending on the raw water hardness. Raw water hardness [°e] Fig. 15: Salt consumption JUDO QUICKSOFT-UNO...

  • Page 24: Installed Dimensions

    – Extension quick set JQR for series con- nection of two JUDO units (e.g. filter and Softener) to a pipe connection, Order No. 825 0041 – Wall bracket for salt container Order No.

  • Page 25: Jqs-U Spare Parts

    JQS-U Spare Parts JQS-U Spare Parts JUDO QUICKSOFT-UNO...
  • Page 26 JQS-U Spare Parts JUDO QUICKSOFT-UNO...
  • Page 27 JQS-U Spare Parts JUDO QUICKSOFT-UNO...
  • Page 28 144 0122 Solenoid valve 150 0209 Countersunk head tapping screw 2.9x22 165 0194 Locking plate ***** 140 0079 Operating cylinder 220 0447 O-ring 18x2.2 120 0195 O-ring 6x2 120 0196 Angle bracket 112 0428 RV ring 220 0328 JUDO QUICKSOFT-UNO...
  • Page 29 165 0173 Cam wheel 112 0277 Thrust bearing plate 220 0549 100 Cheese head screw M5x45 165 0251 103 Intermediate hose 220 0596 104 Cover seal 120 0255 105 Injector seal 120 0237 106 Injector chamber 220 0487 JUDO QUICKSOFT-UNO...
  • Page 30 220 0763 1) AU = Accounting unit Replacement interval * = 1 year, ** = 2 years, *** = 3 years, **** = 4 years, ***** = 5 years Extended warranty period if a service agreement is concluded! JUDO QUICKSOFT-UNO...

  • Page 31: Service Record Sheet

    1) Is completed by the customer service department (S = Total sum, L= extended salting pe- riod, N= normal regeneration, K = reduced salting period) 2) Position 2 3) Position 3 4) Position 5 The values for intake time, wastewater produced, rinsing and initial filtrate apply to each re- generation stage. JUDO QUICKSOFT-UNO...

  • Page 32: 12. Customer Support

    JUDO Wasseraufbereitung GmbH Postfach 380 • D-71351 Winnenden Tel. +49 (0)7195/6 92-0 • Fax: +49 (0)7195/6 92-188 e-mail: info@judo-online.de • www.judo-online.de JUDO France S.à.r.L 76 Rue de la Plaine des Bouchers • Technosud • F-67100 Strasbourg Tel. +33 (0)3 88 65 93 94 • Fax +33 (0)3 88 65 98 49 e-mail: info@judo.fr •...
