Summary of Contents for Judo QUICKSOFT MEGA 4

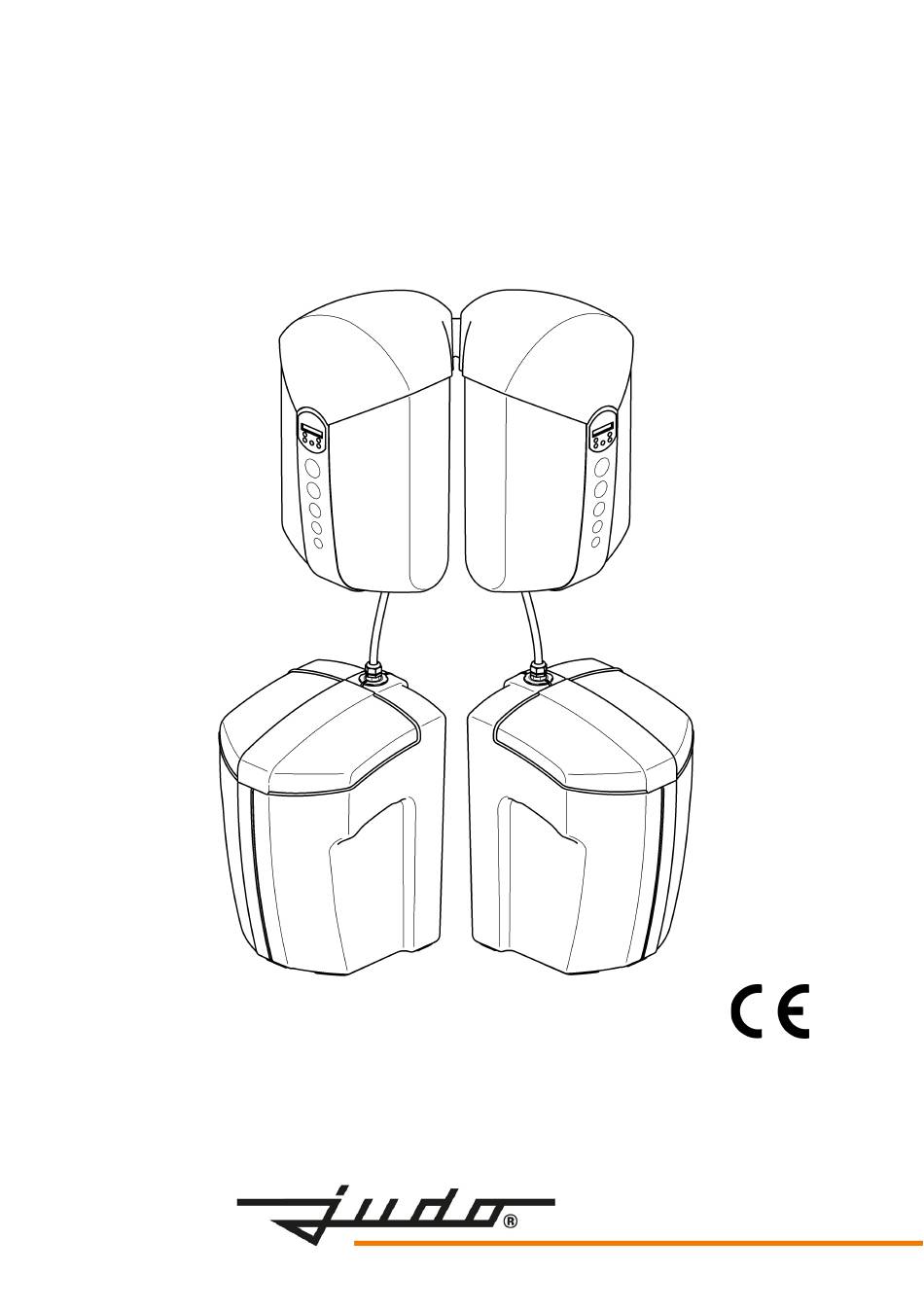

- Page 1 Installation and operating instructions JUDO QUICKSOFT MEGA 4 Water softening unit Valid for: EU countries and Switzerland Language: English Read before use and store!
- Page 2 This device is suitable for use in cold e-mail: info@judo.eu drinking water up to a maximum water judo.eu and ambient temperature of 30 °C. The remote control of the JUDO Address QUICKSOFT MEGA 4 via mobile JUDO Wasseraufbereitung GmbH phones and tablets using the con-...
- Page 3 JUDO QUICKSOFT MEGA 4...
-
Page 4: Table Of Contents
5.8 Potential-free fault indication ..21 5.9 Integration of the water softening system in building control systems 5.10 Connectivity module (accessory)... 5.11 Conversions / changes / spare parts........... 22 5.12 Maintenance/repair....22 5.13 Interruption of operation .... 22 JUDO QUICKSOFT MEGA 4... -
Page 5: About These Operating Instructions
Therefore, these operating instructions must be read by the installer and the responsible technical personnel/operators prior to instal- lation, commissioning and servicing. JUDO QUICKSOFT MEGA 4... -
Page 6: Safety Instructions And Dangers Due To Non-Observation
= 0.142 mmol/l hard- Alkaline earth ions The manufacturer/supplier must be consult- ness (hardness ed before using the water softening system producing ions) outside the limits of use described in these = 14.2 ppm CaCO operating instructions. JUDO QUICKSOFT MEGA 4... -
Page 7: Water Pressure
7 bar, a pressure reducer must be installed or comply with the legal regulations for wet upstream of the water softening system areas. (see fig. 1). If the operating pressure is great- er than 7 bar, malfunctions can occur. JUDO QUICKSOFT MEGA 4... -
Page 8: Product Information
This water softening system is for protection of water pipes and the water heater against limescale deposits. With partially softened water, devices and fit- tings are preserved and the consumption of washing and cleaning agents reduced. JUDO QUICKSOFT MEGA 4... -
Page 9: Installation
The mains voltage must not be interrupt- If the waste water cannot be safely and ed (e.g. via a light switch). completely drained, it is possible that If the water softening system does not have a permanent power connection, JUDO QUICKSOFT MEGA 4... -
Page 10: Installation Of The Water Softening System
Profile flange seal Direction of flow arrow Fig. 2: Rotary flange fitting If this requirement is ignored, the water softening system will not work. JUDO QUICKSOFT MEGA 4... - Page 11 This protective cap is secured using four hexagon socket head screws M6×130. – Loosen all four hexagon socket head screws M6×130, but do not screw out completely (bayonet connection)! – Remove the white protective cap. JUDO QUICKSOFT MEGA 4...
-
Page 12: Connection Of The Water Softening System With The Salt Reservoir
(see fig. 7) has a steady downward clockwise direction (up to the stop). slope from the water softener to Note the marking arrow: the salt reservoir. The arrow must now point to the front side of the salt reservoir (see fig. 6)! JUDO QUICKSOFT MEGA 4... -
Page 13: Waste Water Connection And Safety Overflow Hose
Connection to the water trap If a continuous incline to the water trap can- tem must be installed to convey the not be achieved at the location of installa- regeneration waste water. tion, then a saltwater-resistant pumping sys- JUDO QUICKSOFT MEGA 4... -
Page 14: Operation
– Lighting, contrast, tone without saving – Functioning of the fault indication relay (see chapter 5.8 “Potential-free fault in- - Access to the sub-menu - Accept value and save dication”) and one menu level back - Acknowledge message JUDO QUICKSOFT MEGA 4... -
Page 15: Start Of Operation
(see fig. 9). Operating – Open the water supply (stopcock or shut-off valve). QUICKSOFT-P – Ensure that the bypass valve (if in- Fig. 10: Status display stalled) is set to “Operate”. JUDO QUICKSOFT MEGA 4... - Page 16 If the raw water hardness is low, a rect measuring value comparison, the sam- greater water volume is treated. ples should be taken with a normal water flow (1 tap fully open). During drawing, no The water softening system is pre-set to a JUDO QUICKSOFT MEGA 4...
- Page 17 1000 mg sodium per litre. water legislation of 200 mg/l, then it can be corrected by increasing the mixing water hardness. The calculation of the sodium content must then be repeated. JUDO QUICKSOFT MEGA 4...
-
Page 18: Menu Structure
Operation Menu structure Fig. 12: Menu structure JUDO QUICKSOFT MEGA 4... -
Page 19: Function Description
This means that the mix- ing water hardness temporarily increases in the pipe downstream of the water softening system. JUDO QUICKSOFT MEGA 4... -
Page 20: Filling With Salt
In this way, the water softening system re- mains in a hygienic condition for weeks after the low regenerating salt state first occurs. JUDO QUICKSOFT MEGA 4... -
Page 21: Potential-Free Fault Indication
• Fault relay Press the <OK> key. The display shows the following: Fault relay Normally closed Press key to change between <Nor- mally closed> and <Normally open>. The chosen setting is saved by pressing <OK>. JUDO QUICKSOFT MEGA 4... -
Page 22: Conversions / Changes / Spare Parts
– The connection flange must be protect- ed against dirt and damage. – Once the water softening system is fitted and started again, it must be flushed and regenerated (see chapter 5.4 “Start of operation”). JUDO QUICKSOFT MEGA 4... -
Page 23: Overview Of The Display Messages
These substances can chemically attack the vice number and order number avail- plastic parts resulting in embrittlement and able (see fig. 9). even breakage. Therefore do not use these types of cleaner! JUDO QUICKSOFT MEGA 4... -
Page 24: Warranty And Maintenance
(see fig. 7) in the operating po- al solutions, salt or wear parts, etc. is per- sition. formed by the JUDO factory customer ser- vice team or by an approved technical – Salt deposits inside the water trap. -
Page 25: Data Sheet
Data sheet Data sheet Pipe connection 1¼" Type Number of single softeners JUDO QUICKSOFT MEGA 4 Recommended number of 3 - 6 Water softening system dwelling units Order no.: 8200367 Operating weight with full approx. Technical data salt charge 180 kg –... -
Page 26: Installation Dimensions
230 Installation length Our recommendation: 735 Device width Installation of a JUDO JULIA dosing pump in 165 Height above the pipe middle the mixing water pipe downstream of the 465 Height below the pipe middle water softening system, so that the water... - Page 27 Data sheet Fig. 14: Electronic control unit with fault message relay JUDO QUICKSOFT MEGA 4...
-
Page 28: Spare Parts
Spare parts Spare parts Fig. 15: Spare parts JUDO QUICKSOFT MEGA 4 JUDO QUICKSOFT MEGA 4... -
Page 29: Disposal
Disposal Spare parts list JUDO QUICKSOFT MEGA 4 Designation (recommended average Item Order no. AU Replacement interval for wear part [*] Wear part set intake strainer ** 2201270 Wear part set pressure regulator **** 2200582 Spare part set injector 2201470... - Page 30 Notes JUDO QUICKSOFT MEGA 4...
- Page 31 Notes JUDO QUICKSOFT MEGA 4...
-
Page 32: Customer Service
Tel. +41 (0)61 906 40 50 • Fax +41 (0)61 906 40 59 e-mail: info@judo-online.ch • judo-online.ch JUDO Wasseraufbereitung GmbH • Filiaal - Filiale BeNeLux Laarbeeklaan - Av. du Laerbeek, 72 A1 • B-1090 Brussel - Bruxelles Tel./Tél. +32 (0)24 60 12 88 • Fax +32 (0)24 61 18 85 e-mail: info.benelux@judo.eu •...
