2.1 Ports, LEDs, and Switches

© 2012 CRADLEPOINT, INC.

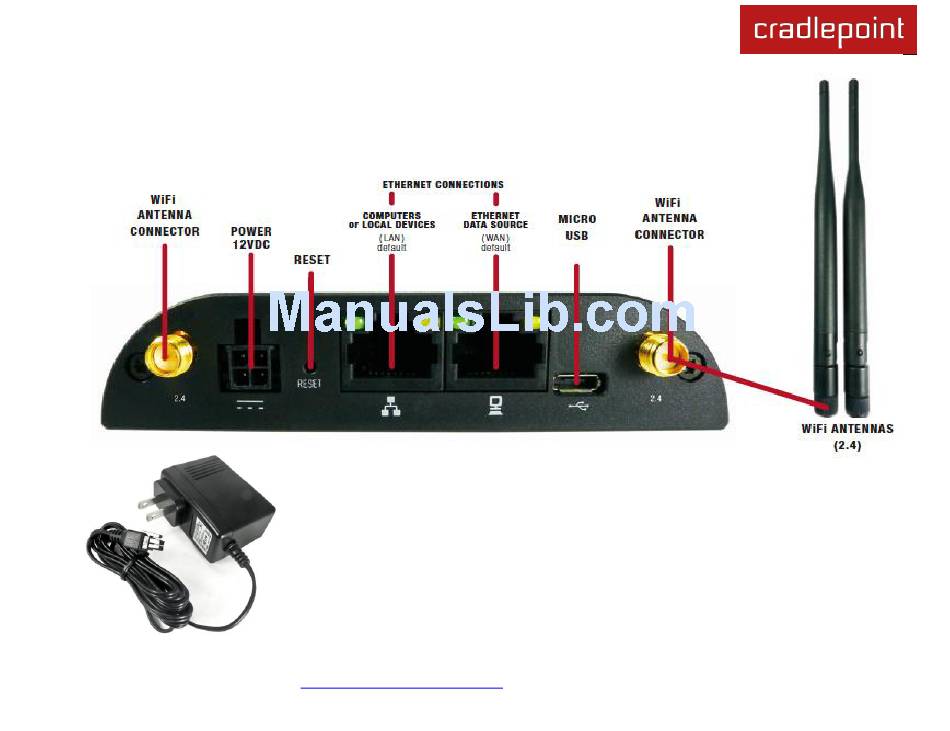

Power 12VDC: The power connector includes two pins for power and two pins for GPIO
(General Purpose Input/Output) functionality. The included power adapter, however, only
connects to the power pins. You will need a separate adapter for GPIO functionality.
Reset: You can return your router to factory default settings by pressing and holding the
Reset button. This button is recessed, so it requires a pointed object such as a paper clip
to press. Press and hold for 10 seconds to initiate reset.
Ethernet Ports: By default, the IBR600/IBR650 has one WAN (Wide Area Network—
your Internet source) port and one LAN (Local Area Network) port. Each of these ports
can be reconfigured, however, if you need two LAN or two WAN Ethernet ports.
