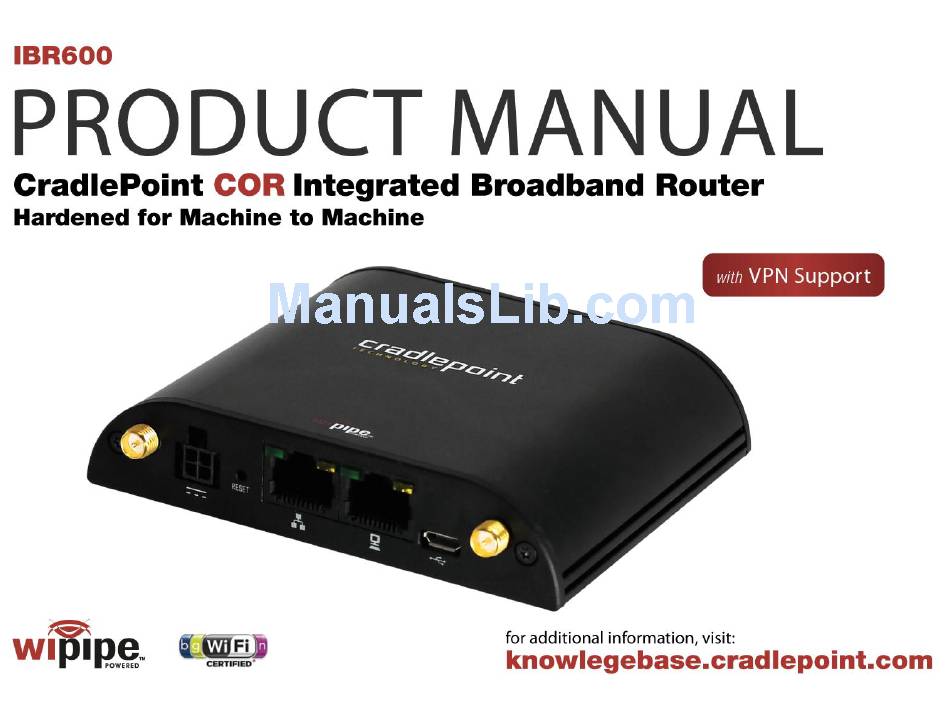

Cradlepoint IBR600 Product Manual

Cor integrated broadband router with vpn support
Hide thumbs Also See for IBR600:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Product Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IBR600 and is the answer not in the manual?

Questions and answers

Related Manuals for Cradlepoint IBR600

Summary of Contents for Cradlepoint IBR600

  • Page 2: Manual Revisions

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Preface CradlePoint reserves the right to revise this publication and to make changes in the content thereof without obligation to notify any person or organization of any revisions or changes. Manual Revisions...

  • Page 3: Table Of Contents

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Table of Contents 1 INTRODUCTION ..............3 5.6 I ............38 NTERNET ONNECTIONS 5.7 S ................. 44 TATISTICS 1.1 P ............. 3 ACKAGE ONTENTS 5.8 S ..............47 YSTEM 1.2 S ............3...
  • Page 4 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 8.3 GPIO C ............147 ONNECTOR 8.4 H ............149 OTSPOT ERVICES 8.5 M ASK YOUR CRADLEPOINT SALES ANAGED ERVICES REPRESENTATIVE FOR DETAILS ..........154 8.6 S ............157 ERIAL EDIRECTOR 8.7 S .............

  • Page 5: Introduction

    CRADLEPOINT 1 INTRODUCTION 1.1 Package Contents  CradlePoint COR: Integrated Broadband Router (IBR600) with embedded high-speed 4G LTE / 3G EV-DO rev A modem  Two external 4G LTE / 3G EV-DO modem antennas  AC power adapter (12V, 1.5A) ...
  • Page 6 4G LTE or 3G EV-DO modem as well as support for wired networks such as DSL or Cable. With its compact size, sleek metal case and mounting bracket, and external Cellular and WiFi antennas the IBR600 is ideal for use in high-availability portable or fixed applications (ATM, kiosk, surveillance, vehicle).
  • Page 7 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT available. The IBR600 provides secure and reliable VPN functionality, allowing users to create, manage and terminate up to 5 concurrent IPSec VPN sessions. It allows for secure access to company networks for enterprise applications and provides a secure way to transmit sensitive data to and from a remote site.

  • Page 8: Hardware Overview

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 2 HARDWARE OVERVIEW © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 6...

  • Page 9: Ports, Leds, And Switches

    CRADLEPOINT 2.1 Ports, LEDs, and Switches WiFi Antennas: The IBR600 comes with two 2.4 GHz WiFi antennas (Reverse SMA). These antennas are simple to attach and adjust for maximum WiFi broadcast. Power 12VDC: The power connector includes two pins for power and two pins for GPIO (General Purpose Input/Output) functionality.
  • Page 10 Press and hold for 10 seconds to initiate reset. Ethernet Ports: By default, the IBR600 has one WAN (Wide Area Network—your Internet source) port and one LAN (Local Area Network) port.
  • Page 11 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Modem Antennas: The IBR600 comes with two modem antennas to enhance reception for the embedded modem. These antennas are simple to attach and adjust. Power On/Off:  I = On  O = Off Power LED: ...
  • Page 12 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT WiFi LED:  Green = On and operating normally  No light = Off Modem LED:  Green = On and operating normally  Blinking Green = Connecting  Amber = Not available (idle, for example) ...

  • Page 13: Mounting Bracket

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 2.2 Mounting Bracket © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 11...
  • Page 14 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 2.2.1 Attaching the IBR600 to the Mounting Bracket 1) Attach the bracket to the wall or other surface with screws. NOTE: Screws are not provided because the type of screw required depends on the mounting surface.
  • Page 15 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 2.2.2 Removing the IBR600 from the Mounting Bracket From the top of the bracket, press down firmly on the router using your thumb(s) and pull the device out. © 2012 CRADLEPOINT, INC.

  • Page 16: Quick Start

    Activate Your Modem A wireless broadband data plan must be added to your IBR600. Wireless broadband data plans are available from wireless carriers such as Sprint and Verizon. A new line of service can be added or a data plan can be transferred from an existing account.

  • Page 17: Connect To A Computer Or Other Device

    NOTE: If more than one IBR600 wireless router is visible, you can find the correct unit by checking for its SSID (service set identifier; the unique name of the local network). The default SSID of the primary network has the form IBR600-xxx, where ―xxx‖ is the last 3 digits of the router‘s MAC address.
  • Page 18 If you would like to change your network name or password or configure any of the advanced features of the IBR600, you will need to log in to the administration pages:  Access your router‘s Administrator Login screen by opening a web browser window and typing ―cp/‖...
  • Page 19 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 3.2.3 Connect to the Internet If you used the First Time Setup Wizard, you might have changed the ―WiFi Network Name‖ or the ―Security Mode‖ password. If so, you will need to reconnect your device(s) to the IBR600 network.

  • Page 20: Common Problems

    A wireless broadband data plan must be added to your IBR600. Wireless broadband data plans are available from wireless carriers such as Sprint and Verizon. A new line of service can be added or a data plan can be transferred from an existing account. You will need the ESN number from your product label on your router to add or transfer a line of service.

  • Page 21: Web Interface -- Essentials

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 4 WEB INTERFACE -- ESSENTIALS The IBR600 has a Web interface for configuration and administration of all features. The interface is organized with 5 tabs at the top of the screen:  Getting Started ...

  • Page 22: Administrator Login

    The Administrator Login page will appear. Log in using your administrator password. Initially, this password can be found on the bottom of the IBR600 unit as the Default Password. This password is also the last eight digits of the unit‘s MAC address.
  • Page 23 If you have forgotten your personalized password, you can reset the IBR600 to factory defaults. When you reset the router, the administrator password will revert back to the Default Password. Press and hold the reset button on the router unit until the lights flash (Approximately 10-15 seconds).

  • Page 24: Getting Started - First Time Setup

    The First Time Setup Wizard will help you customize the name of your wireless network, change passwords to something you choose, and establish an optimal WiFi security mode. The IBR600 comes out of the box with a unique password at WPA1/WPA2 WiFi security level.
  • Page 25 The router cannot use 802.11n modes if WEP is enabled; WiFi performance and range will be limited.  NONE (OPEN): Select this option if you do not want to activate any security features. CradlePoint recommends BEST (WPA2) WiFi security. Try this option first and switch only if you have a device that is incompatible with WPA2.
  • Page 26 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Choose a personalized WPA PASSWORD or WEP KEY. This password will be used to connect devices to the router‘s WiFi broadcast once the security settings have been saved.  WPA Password: The WPA Password must be between 8 and 64 characters long. A combination of upper and lower case letters along with numbers and special characters is recommended to prevent hackers from gaining access to your network.
  • Page 27 Please record these settings for future access. You may need this information to configure other wireless devices. NOTE: If you are currently using the IBR600 WiFi network, reconnect your devices to the network using the new wireless network name and security password.

  • Page 28: Quick Links

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 4.3 Quick Links The CradlePoint logo in the upper left-hand corner of all the administration pages is a link to the Dashboard (Status → Dashboard), which displays fundamental information about the router.

  • Page 29: Configuration

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 4.4 Configuration Pages The following table shows the navigation layout of the administration pages. Click on the tabs along the top bar to reveal the following dropdown menus. Getting Started Status Network Settings...
  • Page 30 LAN (Local Area Network) Examples:  If you want to change the content filtering settings for the network created by the IBR600, go to the Network Settings tab.  If you have multiple Internet sources (such as the embedded modem and an Ethernet connection) for which you would like to set priority levels, go to the Internet tab.

  • Page 31: Status

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 5 STATUS The Status tab displays information about many different aspects of the router. It provides access to 10 submenu options:  Client List  Dashboard  GPS  GRE Tunnels  Hotspot Clients ...

  • Page 32: Client List

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 5.1 Client List The Client List displays the specifications of each device connected to your router, including Wireless and Wired clients. Wireless Clients. For each device using a wireless connection to your IBR600, the following information is displayed: Hostname, IP, MAC, Connection, and Time Online.
  • Page 33 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT  -26 dBm: A relative measure of wireless signal quality (decibels relative to one milliwatt). This expresses theoretical best quality. The value is given as a negative exponent: -20 is a very good value while -80 is relatively poor.

  • Page 34: Dashboard

    After the initial setup of the router, every time you log in you will automatically be directed to this Dashboard. Also, you can click on the CradlePoint logo in the upper left-hand corner to return to the Dashboard from any page.
  • Page 35 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Router Information: “Detailed Info‖ links to System Settings → Administration.  Product: IBR600  Serial: The product serial number.  Firmware: Gives the number of the current firmware version.  Build Date: Year-month-day-hours-minutes-seconds for the most recent firmware upgrade.
  • Page 36 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Local Networks: “Detailed Info‖ links to Network Settings → WiFi / Local Networks.  Clients: The number of current clients. For each network, the following information is displayed:  Network Name: IP Address/Netmask o Route Mode: NAT (Network Address Translation), Standard (NAT-less), Hotspot, or Disabled.

  • Page 37: Gps

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 5.3 GPS If GPS support is enabled and a modem capable of providing GPS coordinates is connected, this page will show a graphical view of your router's location. See the GPS section in System Settings →...

  • Page 38: Unnels

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 5.4 GRE Tunnels View the status of configured GRE Tunnels. To set up or edit a GRE tunnel, go to Internet → GRE Tunnels. Included information:  Name  Status  Transmit (packets/bytes) ...

  • Page 39: Hotspot Clients

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 5.5 Hotspot Clients View the status of the clients that have logged in through the Hotspot/Captive Portal. View:  Hostname  IP address  MAC address  Data Usage (both IN and OUT) ...

  • Page 40: Internet Connections

    The Internet Connections submenu option provides a list of attached WAN devices used as the Internet source for the IBR600. Select one of these devices to see detailed information about that particular device. For each type of device, different information will be included in the Device Information section. Possible devices include: ...
  • Page 41 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 5.6.1 Ethernet General Information  Unique Identifier wan  Model  Type ethernet  Port IP Information  DNS Servers  IP Address  Gateway Statistics  Incoming Bytes  Outgoing Bytes ...
  • Page 42 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 5.6.2 WiFi as WAN Diagnostics  Connection State (connected, idle, etc.) General Information  Product Wireless As WAN  Unique Identifier  Type wwan IP Information  Netmask  IP Address  Gateway ©...
  • Page 43 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 5.6.3 EVDO Modem (embedded modem) Diagnostics  Signal Strength (dBm)  PRL Version  Service Display 1xEV-DO,1X  Carrier Status UP or DOWN  Connection Type CDMA  Connection State (connected, idle, etc.) ...
  • Page 44 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 5.6.4 LTE: Internal LTE/EVDO Diagnostics  Signal Error Rate  MN-HA SPI  Modem Firmware Version  Battery Status  CGSN  MN-HA SS  Network Address Identifier (NAI)  SINR  Service Display LTE ...
  • Page 45 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT General Information  Unique Identifier  Port int1  Profile 3 VZWINTERNET  Model Internal LTE/EVDO  Type lte IP Information  DNS Servers  IP Address  Gateway Statistics  Incoming Bytes ...

  • Page 46: Statistics

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 5.7 Statistics The Statistics submenu option displays basic traffic statistics. Wireless Statistics: View the signal strength and other wireless modem information. The wireless device‘s signal strength will only be displayed as long as it supports ―Live Diagnostics.‖ Sample rate and size can be adjusted from the dropdown boxes.
  • Page 47 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Data Usage: A measure of amount of information that is currently being sent or received through the network. Sample rate and size can be adjusted from the dropdown boxes. © 2012 CRADLEPOINT, INC.
  • Page 48 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Failover/Failback/Load Balance: An easy way to view current connective states of the devices plugged into the router as compared to the past. Sample rate and size can be adjusted from the dropdown boxes.

  • Page 49: System Logs

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 5.8 System Logs The router automatically logs (records) events of possible interest in its internal memory. If there is not enough internal memory for all events, logs of older events are deleted, but logs of the latest events are retained. The log options allow you to filter the router logs so you can easily find relevant messages.

  • Page 50: Vpn Tunnels

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 5.9 VPN Tunnels View the status of configured VPN tunnels. To set up or edit a VPN tunnel, go to Internet → VPN Tunnels. Included information:  Name  Connections  Status ...

  • Page 51: Wipipe Qos

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 5.10 WiPipe QoS View the breakdown of packets and bytes sent and received associated with each WiPipe QoS rule. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 49...

  • Page 52: Network Settings

    6 NETWORK SETTINGS The Network Settings tab provides access to 8 submenu options for administering the following functions/tasks. These functions are all related to controlling the LAN (Local Area Network), the network you set up with the IBR600.  Content Filtering ...

  • Page 53: Content Filtering

    IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 6.1 Content Filtering You have two main options for filtering content in a network created through your IBR600. 1) Domain / URL Filter Rules: Create a list of websites that will be either disallowed (facebook.com, for example) or...
  • Page 54 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT OpenDNS 6.1.1 OpenDNS is a service that protects you online by filtering websites. OpenDNS protects you from phishing websites and URL typos once you select a filtering level.  None: Disables Web filtering that uses OpenDNS, ...
  • Page 55 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT OpenDNS network. In order for Custom settings to work you need to login to DNS-O-MATIC using your OpenDNS credentials and "Add A Service" for the network specified above. Enable OpenDNS ISP Filter Bypass Algorithm: It is possible that your Internet Service Provider (ISP) uses the port that OpenDNS is configured to access, port 53, which will prevent OpenDNS filtering.

  • Page 56: Dhcp Server

    IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 6.2 DHCP Server DHCP stands for Dynamic Host Configuration Protocol. The built-in DHCP server automatically assigns IP addresses to the computers and other devices on each local area network (LAN). In this section you can view a list of assigned IP addresses and reserve IP addresses for particular devices.

  • Page 57: Dns

    DNS, or Domain Name System, is a naming system that translates between domain names (www.cradlepoint.com, for example) and Internet IP addresses (206.207.82.197). A DNS server acts as an Internet phone book, translating between names that make sense to people and the more complex numerical identifiers. The DNS page for the IBR600 has these distinct functions: ...
  • Page 58 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Dynamic DNS Configuration 6.3.2 The Dynamic DNS feature allows you to host a server (Web, FTP, etc.) using a domain name that you have purchased (www.yourname.com) with your dynamically assigned IP address. Most broadband Internet Service Providers assign dynamic (changing) IP addresses.
  • Page 59 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Advanced Dynamic DNS Settings 6.3.3 Update period (hours). (Default: 576) The time between periodic updates to the Dynamic DNS, if your dynamic IP address has not changed. The timeout period is entered in hours so valid values are from 1 to 8760.

  • Page 60: Firewall

    IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 6.4 Firewall The router automatically provides a firewall. Unless you configure the router to the contrary, the router does not respond to unsolicited incoming requests on any port, thereby making your LAN invisible to cyber attackers.
  • Page 61 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT  Local Port(s): The port number(s) that corresponds to the service (Web server, FTP, etc) on a local computer or device. For example, you might input ―80‖ in the Local Port(s) field to open a port for a Web server on a computer within your network.
  • Page 62 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT IP Filter Rules (Advanced) 6.4.2 An "Incoming" IP filter rule restricts remote access to computers on your local network. "Outgoing" filter rules prevent computers on your local network from initiating communication to the address range specified in the rule.
  • Page 63 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT If you leave these values blank, then all IP addresses and ports will be included. IP Source and IP Destination options can be used to differentiate between the directions that packets go. You could permit packets to come from particular IP addresses but then not allow packets to return to those addresses.
  • Page 64 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT DMZ: DeMilitarized Zone (Advanced) 6.4.3 A DMZ host is effectively not firewalled in the sense that any computer on the Internet may attempt to remotely access network services at the DMZ IP address. Typical uses involve running a public Web server or sharing files.

  • Page 65: Mac Filter

    IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 6.5 MAC Filter The MAC Filter allows you to create a list of devices that have either exclusive access (whitelist) or no access (blacklist) to your wireless LAN. Enabled: Click to allow MAC Filter options.

  • Page 66: Routing

    IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 6.6 Routing Add a new static route to the IP routing table or edit/remove an existing route. Static routes are unnecessary for most users. They are typically only used in networks with more than one layer, such as when there is a network within a network so that packet destinations are hidden behind an additional router.

  • Page 67: Wifi / Local Networks

    They will have to reconnect to the network. The user can set up multiple networks on the IBR600, each with its own unique configuration and its own selection of interfaces. Each local network can be...
  • Page 68 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Local IP Networks 6.7.1 Local IP Networks displays the following information for each network:  Network Name  IP address/Netmask  DHCP Server (Enabled/Disabled)  Routing Mode (NAT, Standard, Hotspot, Disabled)  Access Control (Admin Access, UPnP Gateway, LAN Isolation) ...
  • Page 69 IP Settings: Name: This primarily helps to identify this network during other administration tasks. Hostname: [Default: cp (for CradlePoint)] The hostname is the DNS name associated with the router's local area network IP address. NOTE: You can access the router‘s administration pages by typing the hostname into your browser, so if you change ―cp‖...
  • Page 70 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT  NAT: Network Address Translation hides private IP addresses behind the router's IP address. This is the simplest and most common choice for users, because NAT does the translation work for you.  Standard: NAT-less routing. If you select Standard, you must separately configure your IP addresses so that they will be publically accessible.
  • Page 71 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Access Control: Tune the access control settings of this network to match the intended use. Simply select or deselect any of the following:  LAN Isolation: When checked, this network will NOT be allowed to communicate with other local networks.
  • Page 72 (default: 72 to 200, as in 192.168.0.72 to 192.168.0.200). Example: The IBR600 uses an IP address of 192.168.0.1 for its primary network by default. A computer designated as a Web server has a static IP address of 192.168.0.3. Another computer is designated as an FTP server with a static IP address of 192.168.0.4.
  • Page 73 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Option: Select an option from the dropdown list or manually enter the number of an option. A complete list of options available from IANA. Value: Generally this field should be a string, IP address, or numeric value.
  • Page 74 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Schedule: Set up a schedule for this network interface. This allows an interface to be enabled or disabled during specific hours of a day. For example, use this to limit a Hotspot network to business hours.
  • Page 75 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Local Network Interfaces 6.7.3 Each LAN type—WiFi, Ethernet, and VLAN—has a separate section with configuration options. Unless the default configuration is sufficient, YOU MUST CONFIGURE EACH INTERFACE SEPARATELY in order to create the desired interface options for a network.
  • Page 76 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Wireless Network Editor WiFi Name (SSID): When you are browsing for available wireless networks, this is the name that will be broadcast from this router for the selected network. This name is referred to as the SSID (service set identifier). For security purposes, CradlePoint highly recommends that you change this from the pre-configured name.
  • Page 77 NOTE: If you don‘t know whether you should choose Personal or Enterprise, assume Personal since you need to know RADIUS authentication for Enterprise. In order to protect your network from hackers and unauthorized users, CradlePoint highly recommends WPA2/AES for security if your attached devices can support it. WEP and WPA/TKIP are obsolete and have been replaced by WPA/AES.
  • Page 78 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT NOTE: If you select one of the security modes and are unable to connect to the router afterwards, you can use the reset buttons to reset the router to its factory default state and try a different security mode instead.
  • Page 79  Internet (WAN) is used to connect to another network such as a hotel or office wired network. The WAN connection is used as a possible source of Internet for the IBR600.  Local Network (LAN) is for connecting a computer or similar device directly to the router with an Ethernet cable.
  • Page 80 Since the IBR600 has only 2 Ethernet ports, this feature will rarely be necessary. It is possible, however, to set both ports as LAN ports (or both ports as WAN ports) and then either separate them or group them together.
  • Page 81 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT VLAN Interfaces A virtual local area network, or VLAN, functions as any other physical LAN, but it enables computers and other devices to be grouped together even if they are not physically attached to the same network switch.
  • Page 82 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT WiFi Settings 6.7.4 When you select the Wireless (WiFi) Networks Settings tab in the Local Network Interfaces section, you have several additional options for configuring your wireless LANs under the WiFi Settings heading.
  • Page 83 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Client Timeout: (Default: 300 seconds) If the access point is not able to communicate with the client it will disconnect after this amount of time in seconds. TX Power: Normally the wireless transmitter operates at 100% power. In some circumstances, however, there might be a need to isolate specific frequencies to a smaller area.
  • Page 84 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT  802.11 b  802.11 b/g  802.11 b/g/n  802.11 n Channel Width: Selects whether the router uses a single 20 MHz channel to send/receive, or uses two adjacent 20 MHz channels to create a 40 MHz channel. Higher performance is possible with the 40 MHz channel. Selecting Auto is generally best.

  • Page 85: Wipipe Qos

    IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 6.8 WiPipe QoS When WiPipe QoS (Quality of Service, also known as ―Traffic Shaping‖) is enabled, the router will control the flow of Internet traffic according to the user-defined rules. In other words, Traffic Shaping improves performance by allowing the user to prioritize applications.
  • Page 86 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Traffic Shaping Rules 6.8.1 A Traffic Shaping rule identifies a specific message flow and assigns a priority to that flow. Assign rules based on upload/download bandwidth, protocol, port numbers, and/or IP addresses. EXAMPLE: You can restrict the bandwidth of your guest network in order to reserve crucial bandwidth for your primary network. Create a rule associated with the IP address range and appropriate netmask for the quest network.
  • Page 87 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Traffic Shaping / QoS Rule Editor The first page of the Traffic Shaping / QoS Rule Editor allows you enable/disable the rule, name the rule, and specify a protocol for the rule. Rule Enabled: (Default: Enabled.) Deselect this to disable this rule.
  • Page 88 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Enable Upload QoS: (Default: Enabled.) Deselect if you want your rule to apply to download traffic only. Borrow Spare Bandwidth: (Default: Enabled.) When this is enabled, the interfaces/protocols associated with this rule will borrow unused bandwidth from other rules.
  • Page 89 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Enable Download QoS: (Default: Enabled.) Deselect if you want your rule to apply to upload traffic only. Borrow Spare Bandwidth: (Default: Enabled.) When this is enabled, the interfaces/protocols associated with this rule will borrow unused bandwidth from other rules.
  • Page 90 IBR600| USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Source Port(s) and/or Destination Port(s): Enter a port number between 1 and 65535. To enter a single port number, input the number into the left box. To enter a range of ports, fill in both boxes separated by the colon.

  • Page 91: Internet

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 7 INTERNET The Internet tab provides access to 6 submenu items for managing a variety of Internet connection options.  Connection Manager  Data Usage  GRE Tunnels  VPN Tunnels  WiFi as WAN / Bridge ...

  • Page 92: Connection Manager

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 7.1 Connection Manager The router can establish an uplink via the Ethernet WAN port, WiFi as WAN, or the internal modem. If the primary WAN connection fails the router will automatically attempt to bring up a new link on another device. This feature is called failover.
  • Page 93 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 7.1.2 Device Configuration Clicking on a device reveals the following information:  State (Connected, Available, etc.)  Port  UID (Unique identifier. This could be a name or number/letter combination.)  IP Address ...
  • Page 94 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT General Settings 7.1.3  Enabled: Select/deselect to enable/disable.  Load Balance: Select to allow this device to be available for the Load Balance pool.  LB default bandwidth: Defines the default bandwidth for use in Load Balance algorithms.
  • Page 95 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Failure Check (Advanced) If this is enabled, the router will check that the highest priority active WAN interface can get to the Internet even if the WAN connection is not actively being used. If the interface goes down, the router will switch to the next highest priority interface available.
  • Page 96 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Failback Configuration (Advanced) This is used to configure failback, which is the ability to go back to a higher priority WAN interface if it regains connection to its network. Usage: Fail back based on the amount of data passed over time.
  • Page 97 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Ethernet Settings 7.1.4 While default settings for each WAN Ethernet port will be sufficient in most circumstances, you have the ability to control:  Connect Method: DHCP (Automatic), Static (Manual), or PPPoE (Point-to-Point Protocol over Ethernet).
  • Page 98 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Static (Manual):  IP Address  Subnet Mask  Gateway IP  Primary DNS Server  Secondary DNS Server PPPoE:  Username  Password  Password Confirm  Service  Auth Type: None, PAP, CHAP ©...
  • Page 99 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Modem Settings 7.1.5 On Demand: Typically modem connections are not always on. When this mode is selected a connection to the Internet is made as needed. When this mode is not selected a connection to the Internet is always maintained.
  • Page 100 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT AT+CGDCONT=2,‖IP‖,‖isp.cingular‖ ATCT*99***2# PPP Authentication Protocol: Set this only if your service provider requires a specific protocol and the Auto option chooses the wrong one.  Auto  PAP (Password Authentication Protocol)  CHAP (Challenge Handshake Authentication Protocol) PPP Password: Password for PPP authentication.
  • Page 101 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT CDMA Settings  Persist Settings:  Active Profile: Select a number from 0-5 from the dropdown list. The following fields can be left blank. If left blank they will remain unchanged in the modem.
  • Page 102 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT SIM/APN Settings SIM PIN: PIN number for a GSM modem with a locked SIM. Access Point Name (APN): Some wireless carriers provide multiple Access Point Names that a modem can connect to. Some APN examples are ‗isp.cingular‖...
  • Page 103 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT WiMAX Settings WiMAX Realm: Select from the following dropdown options:  Clear – clearwire-wmx.net  Rover – rover-wmx.net  Sprint 3G/4G – sprintpcs.com  Xohm –xohm.com  BridgeMAXX – bridgeMAXX.com  Time Warner Cable – mobile.rr.com ...
  • Page 104 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 7.1.6 Update/Activate a Modem Some 3G modems can be updated and activated while plugged into the router. Updates and activation methods vary by modem model and service provider. Possible methods are: PRL Update, Activation, and FUMO. All supported methods will be displayed when you select your modem and click ―Update/Activate‖.
  • Page 105 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Process Timeout: If the process fails an error message will display. Activation has a 3-minute timeout, PRL update has a 4-minute timeout, and FUMO has a 10-minute timeout. 7.1.7 Configuration Rules (Advanced)
  • Page 106 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT WAN Configuration Rule This section allows you to create simple or complex rules that affect how individual Internet sources or classes of sources (perhaps all WiMAX modems or all modems from Sierra Wireless) behave in the router.
  • Page 107 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Value: If you chose Port or Type, select from the dropdown list. If you chose Manufacturer, Model, Serial Number, MAC Address, or Unique ID, you will need to manually input the information.

  • Page 108: Data Usage

    Agreement shown to the right. The purpose of this agreement is to ensure that you understand that the data numbers for the IBR600 may not perfectly match those of your carrier: CradlePoint cannot be held responsible. You must accept the agreement by clicking Yes in order to begin creating data usage rules.
  • Page 109 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 7.2.1 Data Usage Rules The Date Usage Rule display shows basic information for each rule you have created (including rules created with a template). The following information is displayed:  Rule Name ...
  • Page 110 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Usage Rule Configuration – page 2 Cycle Type: How often the rule will reset. The data usage amount will be reset at the end of each cycle. Select the length of a cycle from a dropdown menu with the following choices: ...
  • Page 111 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Template Configuration 7.2.2 Templates allow you to control multiple WAN devices with the same rule. Each WAN device that matches a template will automatically have its own rule created. Click Add to configure a new Template rule.
  • Page 112 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Historical Data 7.2.3 Historical Data shows a graph of data usage for each attached WAN source that has an assigned Data Usage Rule. The graph shows the usage trend for one day.

  • Page 113: Unnels

    Generic Routing Encapsulation (GRE) tunnels can be used to create a connection between two private networks. The IBR600 is enabled for either GRE or VPN tunnels. GRE tunnels are simpler to configure and more flexible for different kinds of packet exchanges, but VPN tunnels are much more secure.
  • Page 114 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Page 1: General Tunnel Name: Choose a name that is meaningful to you. Local Network: This is the local side of the ―Glue Network,‖ a network created by the administrator to form the tunnel.
  • Page 115 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Keep Alive: This feature monitors the status of a tunnel. This will more accurately determine if the tunnel is alive or not. Choose the Rate in seconds for each check (Default: 10 seconds. Range: 2 – 3600 seconds) and the number of Retry attempts (Default: 3.
  • Page 116 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Global GRE Settings 7.3.1 GRE will use the primary WAN for connection, which will allow it to failover to other WANs as needed. If GRE needs to be tied to a particular WAN, it can be done by deselecting the box and selecting the appropriate WAN.
  • Page 117 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT o Ethernet o Wireless As WAN  Serial Number: Select from a dropdown list of attached devices.  MAC Address: Select from a dropdown list of attached devices.  Unique ID: Select from a dropdown list of attached devices.

  • Page 118: Unnels

    The IBR600 uses IPsec (Internet Protocol security) to authenticate and encrypt packets exchanged across the tunnel. To set up a VPN tunnel with the IBR600 on one end, there must be another device (usually a router) that also supports IPsec on the other end.
  • Page 119 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Page 1: General 7.4.1 Tunnel Name: Choose a name meaningful to you. Local Identity: This can be left blank for most users. If left blank it will default to the IP address of the WAN connection. Currently we only support identifiers in the form of an IP address, a user fully qualified domain name (user@mydomain.com) or just a...
  • Page 120 CRADLEPOINT Tunnel Enabled: Enabled or Disabled. MBR1200 Quick Connect: VPN tunnels in the IBR600 have more choices than they do in the MBR1200, so it is more complex to configure. Check this box to simplify setup by streamlining your options.
  • Page 121 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 7.4.3 Page 3: IKE Phase 1 IKE security has two phases, Phase 1 and Phase 2. You have the ability to distinctly configure each phase, but the default settings will be sufficient for most users.
  • Page 122 In Phase 1, only one DH group can be selected while using Aggressive exchange mode. By default, all the algorithms (encryption, hash, and DH groups) supported by the IBR600 are checked, which means they are allowed for any given exchange. Deselect these options to limit which algorithms will be accepted. Be sure to check that the router (or similar device) at the other end of the tunnel has matching algorithms.
  • Page 123 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 7.4.4 Page 4: IKE Phase 2 Perfect Forward Secrecy (PFS): Enabling this feature will require IKE to generate a new set of keys in Phase 2 rather than using the same key generated in Phase 1.
  • Page 124 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 7.4.5 Page 5: Dead Peer Detection Dead Peer Detection (DPD) defines how the router will detect when one end of the IPsec session loses connection while a policy is in use. Connection Idle Time allows you to configure how long the router will allow an IPsec session to be idle before beginning to send Dead Peer Detection (DPD) packets to the peer machine.
  • Page 125 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Page 6: Tunnel Summary 7.4.6 The final page of the tunnel configuration interface is a summary of the tunnel specifications. This is especially helpful for matching this information with the router (or similar device) at the other end of the tunnel.
  • Page 126 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 7.4.7 Global VPN Settings These settings apply to all configured VPN tunnels. Use Primary WAN: (Default: Selected.) Deselect to open options for specifying the WAN type. By default, VPN will use the primary WAN for connection, which will allow it to failover to other WANs as needed. If VPN needs to be tied to a particular WAN, deselect the box and selecting the appropriate WAN.
  • Page 127 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT o undefined  Manufacturer: Select from a dropdown list of attached devices.  Model: Select from a dropdown list of attached devices.  Type: Select from the dropdown list of possible WAN types.
  • Page 128 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 7.4.8 VPN with NAT-T If one side of a planned VPN tunnel is behind a NAT (network address translation) firewall, the setup of your tunnel requires the following specifications: 1. Each side of the tunnel must use both a Local Identity and a Remote Identity. These must match the identities on the other side: The Local Identity must match the Remote Identity on the other side of the tunnel, and vice versa.

  • Page 129: Wifi As Wan / Bridge

    WiFi as WAN uses another WiFi network as its Internet source and then rebroadcasts its own local network. For example, the IBR600 can create a private LAN using the public WiFi from a hotel as its WAN. WiFi Bridge functions similarly, but it rebroadcasts the original network.
  • Page 130 When in WiFi Bridge mode with a configured profile, a WiFi Bridge device will be added to the local network interfaces, providing a way to bridge two LANs over a WiFi connection. For example, two separate CradlePoint routers linked through WiFi Bridge mode allows you to have one WiFi-connected network in two separated sections of a large office building.
  • Page 131 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 7.5.2 Saved Profiles This is a list of WiFi networks that have already been configured as WAN sources (or Bridge profiles). The router will attempt to connect to any of these access points using the password you have configured.
  • Page 132 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Click ―Refresh‖ if a WiFi network to which you want to connect is invisible. Site Survey only operates on the 2.4 GHz band. You have the option to manually add network profiles, but it is usually much easier to import them from Site Survey.
  • Page 133 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 7.5.4 Wireless Scan Settings Scan Interval: How often WiFi as WAN scans the environment for updates. (Default: 60 seconds. Range: 5-3600 seconds.) Scan While Connected: Continue to scan for WiFi as WAN profile updates when connected. Each time a scan occurs the wireless communication of the router will be temporarily interrupted.

  • Page 134: Wan Affinity

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 7.6 WAN Affinity WAN Affinity rules allow you to manage traffic in your network so that particular bandwidth uses are associated with particular WAN sources. This allows you to prioritize bandwidth. EXAMPLE: You could specify that your guest LAN is only associated with your Ethernet connection with no failover.
  • Page 135 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT destination is defined by traffic flow. Leave these blank to include all IP addresses (such as if your rule is defined by a particular port instead). EXAMPLE: If you want to associate this rule with your guest LAN, you could input the IP address and netmask for the guest LAN here (leaving the last slot ―0‖...
  • Page 136 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT  MAC Address: Select from a dropdown list of attached devices.  Unique ID: Select from a dropdown list of attached devices. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES...

  • Page 137: System Settings

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 8 SYSTEM SETTINGS The System Settings tab has 8 submenu options that provide access to tools for broad administrative control of the IBR600:  Administration  Device Alerts  GPIO Connector  Hotspot Services ...

  • Page 138: Administration

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 8.1 Administration Select the Administration submenu item in order to control any of the following functions:  Router Security  System Clock  Local Management  Remote Management  GPS  System Logging Router Security 8.1.1...
  • Page 139 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT System Clock 8.1.2 Enabling NTP will tell the router to get its system time from a remote server on the Internet. If you do not enable NTP then the router time will be based on when the router firmware was built, which is guaranteed to be wrong. Whenever the Internet connection is re-established and once a week thereafter the router will ask the server for the current time so it can correct itself.
  • Page 140 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Local Management 8.1.3 Enable Internet Bounce Pages: Bounce pages show up in your web browser when the router is not connected to the Internet. They inform you that you are not connected and try to explain why. If you disable bounce pages then you will just get the usual browser timeout.
  • Page 141 SSH protocol. Use the username "admin" and the standard system password to login.  SSH Server Port: Default: 22.  Allow Remote SSH Access: Only enable this option if instructed by a CradlePoint support agent. Technical Support Access: Only enable this option if instructed by a CradlePoint support agent.
  • Page 142 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 8.1.5 If you have an attached device with GPS support, you can enable a graphical view of your router‘s location which will appear in Status → GPS. Users can configure GPS NMEA GGA format sentence reporting, available through a router-based server and/or a remote server.
  • Page 143 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT o Remote server port o Report only over specific time interval: Restricts the NMEA sentence reporting to a remote server to a specific time interval. The following GPS spec is copied from http://aprs.gids.nl/nmea/...
  • Page 144 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Checksum Used by program to check for transmission errors Courtesy of Brian McClure, N8PQI. Global Positioning System Fix Data. Time, position, and fix related data for a GPS receiver. eg2. $--GGA,hhmmss.ss,llll.ll,a,yyyyy.yy,a,x,xx,x.x,x.x,M,x.x,M,x.x,xxxx hhmmss.ss = UTC of position llll.ll = latitude of position...
  • Page 145 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT = GPS quality indicator (0=invalid; 1=GPS fix; 2=Diff. GPS fix) = Number of satellites in use [not those in view] = Horizontal dilution of position = Antenna altitude above/below mean sea level (geoid) 10 = Meters (Antenna height unit) 11 = Geoidal separation (Diff.
  • Page 146 If this occurs, disable this option. Log to attached USB stick: Only enable this option if instructed by a CradlePoint support agent. This will write a very verbose log file to the root level of an attached USB stick. Please disable the feature before removing the USB stick, or you may lose some logging data.

  • Page 147: Device Alerts

    SMTP Mail Server 8.2.1 Since the IBR600 does not have its own email server, to receive alerts you must enable an SMTP server. This is possible through most email services (Gmail, Yahoo, etc.). Each SMTP server will have different specifications for setup, so you have to look those up separately. The following is an example using Gmail: ©...
  • Page 148 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT  Server Address: smtp.gmail.com  Server Port: 587 (for TLS, or Transport Layer Security port; the IBR600 does not support SSL).  Authentication Required: Gmail, mark this checkbox.  User Name: Your full email address ...

  • Page 149: Gpio C

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 8.3 GPIO Connector The power connector includes two pins defined for general purpose LVTTL compatible input and output. These pins are ESD protected and the input is 5V tolerant. NOTE: GPIO functionality requires a separate adapter to connect to the I/O pins.
  • Page 150 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Input Pin – The Input Pin can be used to read a value—either high or low—from an external device and either display that value on this administration page (as the Current Value) or cause the router to reset. Select one of the following options from the dropdown menu: ...

  • Page 151: Hotspot Services

    Any of your networks can be enabled as a hotspot. To enable a hotspot, you need to select a network and set it as a hotspot in Network Settings → WiFi / Local Networks. NOTE: Although any network can be a hotspot, the IBR600 allows only one hotspot. Hotspot Mode: Choose from the following dropdown options: ...
  • Page 152 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 150...
  • Page 153 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Simple Mode Settings 8.4.1 Display: This section allows you to choose if a "Terms of Use" page will be given to the user connecting to the hotspot.  Internal Terms of Use. Fill in your own terms of use.
  • Page 154 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT  Server Address 1: Assigned by RADIUS service.  Server Address 2: This is an optional backup server.  Authentication Port: The standard port number, 1812, will usually be sufficient.  Accounting Port: The standard port number, 1813, will usually be sufficient.
  • Page 155 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT UAM Settings:  Login URL: Assigned by UAM service.  Shared Secret: Optional, depending on the UAM service.  NAS/Gateway ID: Assigned by UAM service. Allowed Hosts Prior to Authentication 8.4.3 Adding host names to this list will allow access from your network to any external domain or website prior to being authenticated.

  • Page 156: Managed Services Ask Your Cradlepoint Sales Representative For Details

    WiPipe Central client will not start unless the WAN is Ethernet. Registration URL: Register your router using the code provided by CradlePoint when you purchase WiPipe Central. SNMP Configuration 8.5.1 SNMP, or Simple Network Management Protocol, is an Internet standard protocol for remote management.
  • Page 157 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT LAN port #: Use the LAN port # field to configure the LAN port number you wish to access SNMP services on. (Default: 161) Enable SNMP on WAN: Enabling SNMP on WAN will make SNMP services available to the WAN interfaces of the router.
  • Page 158 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT  MD5 with DES encryption  SHA with DES encryption  MD5 with AES encryption  SHA with AES encryption Username: Enter the Username configured on your SNMP host in the username field.

  • Page 159: Serial Redirector

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 8.6 Serial Redirector Attach a USB serial device to establish a serial link to a host port on the router. The serial console support allows a USB-to-serial connection to another router or similar device.
  • Page 160 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT  600  1200  1800  2400  4800  9600  19200 Byte Size: The number of bits in a byte. Select from: 5, 6, 7, and 8. Parity: Change this value to enable parity bit checking. Select from the following dropdown options: ...

  • Page 161: System Control

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 8.7 System Control Restore to Factory Defaults: This changes all settings back to their default values. Reboot The Device: This causes the router to restart. Advanced: System Automatic Reboot and Ping Test Scheduled Reboot: This causes the router to restart at a user-determined time.

  • Page 162: System Software

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 8.8 System Software Firmware Upgrade allows the administrator to load new firmware onto the router to add new features or fix defects. If you are happy with the operation of the router, you may not want to upgrade just because a new version is available.

  • Page 163: Glossary

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 9 GLOSSARY 802.11 Alphanumeric A family of specifications for wireless local area networks Characters A-Z and 0-9. (WLANs) developed by a working group of the Institute of Antenna Electrical and Electronics Engineers (IEEE).
  • Page 164 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Authentication Bit rate To provide credentials, like a Password, in order to verify The amount of bits that pass in given amount of time. that the person or device is really who they are claiming Bit/sec to be.
  • Page 165 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT CardBus Data-Link layer A newer version of the PC Card or PCMCIA interface. It The second layer of the OSI model. Controls the supports a 32- bit data path, DMA, and consumes less movement of data on the physical link of a network.
  • Page 166 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Demilitarized zone Download DMZ: A single computer or group of computers that can To send a request from one computer to another and be accessed by both users on the Internet as well as have the file transmitted back to the requesting computer.
  • Page 167 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Encryption Fragmentation Converting data into cyphertext so that it cannot be easily Breaking up data into smaller pieces to make it easier to read. store. Ethernet The most widely used technology for Local Area File Transfer Protocol.
  • Page 168 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Half-duplex IEEE Data cannot be transmitted and received at the same Institute of Electrical and Electronics Engineers. time. IGMP Hashing Internet Group Management Protocol is used to make Transforming a string of characters into a shorter string sure that computers can report their multicast group with a predefined length.
  • Page 169 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Internet Protocol Security Java IPsec provides security at the packet processing layer of A programming language used to create programs and network communication. applets for web pages. Internet Service Provider Kbps An ISP provides access to the Internet to individuals or Kilobits per second.
  • Page 170 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT LPR/LPD MPPE ―Line Printer Requestor‖/‖Line Printer Daemon‖. A Microsoft Point-to-Point Encryption is used to secure data TCP/IP protocol for transmitting streams of printer data. transmissions over PPTP connections. MAC Address A unique hardware ID assigned to every Ethernet Maximum Transmission Unit is the largest packet that adapter by the manufacturer.
  • Page 171 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Network Interface Card routers in the network as opposed to sending the entire routing table at a regular interval, which is how RIP NIC. A card installed in a computer or built onto the functions.
  • Page 172 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT channel) but can have multiple ports (logical channels) Rendezvous each identified by a number. Apple‘s version of UPnP, which allows for devices on a network to discover each other and be connected without the need to configure any settings.
  • Page 173 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Session key An encryption and decryption key that is generated for Secure Shell is a command line interface that allows for every communication session between two computers. secure connections to remote computers.
  • Page 174 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT TFTP Upload Trivial File Transfer Protocol is a utility used for To send a request from one computer to another and transferring files that is simpler to use than FTP but with have a file transmitted from the requesting computer to less features.
  • Page 175 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Wake on LAN WiFi Protected Access Allows you to power up a computer through it‘s Network An updated version of security for wireless networks that Interface Card. provides authentication as well as encryption.
  • Page 176 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT Yagi antenna A directional antenna used to concentrate wireless signals on a specific location. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 174...

  • Page 177: Appendix

    Furthermore, under no circumstances should the IBR600 3G device be used by the driver or operator of any vehicle. Such use of the device will detract from the driver or operator‘s control of that vehicle. In some jurisdictions, use of the IBR600 3G device while driving or operating a vehicle constitutes a civil and/or criminal offense.
  • Page 178 CradlePoint, Inc. warrants this product against defects in materials and workmanship to the original purchaser (or the first purchaser in the case of resale by an authorized distributor) for a period of one (1) year from the date of shipment. This warranty is limited to a repair or replacement of the product, at CradlePoint‘s discretion. CradlePoint does not warrant that the operation of the device will meet your requirements or be error free.
  • Page 179 CRADLEPOINT By activating or using your IBR600 3G device, you agree to be bound by CradlePoint‘s Terms of Use, User License and other Legal Policies, all as posted at www.cradlepoint.com/legal. Please read these documents carefully. CradlePoint, the CradlePoint logo, and IBR600 are trademarks of CradlePoint, Inc.

  • Page 180: Specifications

    IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT 10.2 Specifications DETAILS MODEL NAME  WAN Security NAT, SPI, ALG, inbound filtering of IP CradlePoint COR Integrated Broadband Router IBR600 Addresses (future), Port Blocking, Service Filtering (FTP, DATA IN SMTP, HTTP, RPL, SNMP, DNS, ICMP, NNTP, POP3, 3G via internal EVDO Rev.
  • Page 181 IBR600 | USER MANUAL Firmware ver. 3.5.1 CRADLEPOINT http://www.cradlepoint.com/ Copyright © 2012 by CradlePoint, Inc. All rights reserved. © 2012 CRADLEPOINT, INC. PLEASE VISIT HTTP://KNOWLEDGEBASE.CRADLEPOINT.COM/ FOR MORE HELP AND RESOURCES PAGE 179...
