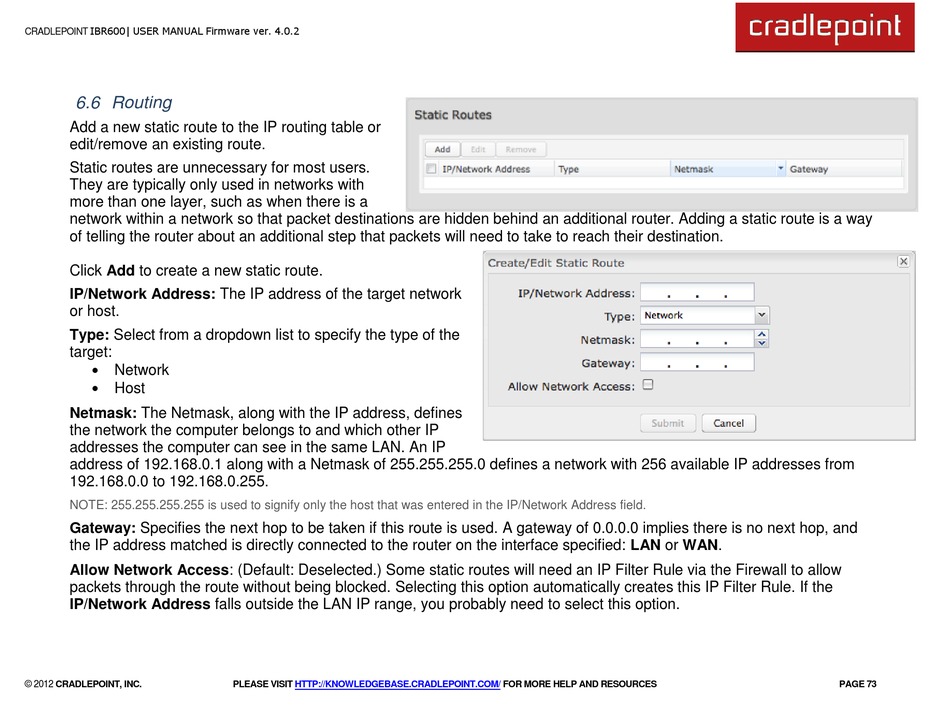

6.6 Routing

Add a new static route to the IP routing table or
edit/remove an existing route.
Static routes are unnecessary for most users.
They are typically only used in networks with
more than one layer, such as when there is a
network within a network so that packet destinations are hidden behind an additional router. Adding a static route is a way
of telling the router about an additional step that packets will need to take to reach their destination.
Click Add to create a new static route.
IP/Network Address: The IP address of the target network
or host.
Type: Select from a dropdown list to specify the type of the
target:
 Network
 Host
Netmask: The Netmask, along with the IP address, defines
the network the computer belongs to and which other IP
addresses the computer can see in the same LAN. An IP
address of 192.168.0.1 along with a Netmask of 255.255.255.0 defines a network with 256 available IP addresses from
192.168.0.0 to 192.168.0.255.
NOTE: 255.255.255.255 is used to signify only the host that was entered in the IP/Network Address field.
Gateway: Specifies the next hop to be taken if this route is used. A gateway of 0.0.0.0 implies there is no next hop, and
the IP address matched is directly connected to the router on the interface specified: LAN or WAN.
Allow Network Access: (Default: Deselected.) Some static routes will need an IP Filter Rule via the Firewall to allow
packets through the route without being blocked. Selecting this option automatically creates this IP Filter Rule. If the
IP/Network Address falls outside the LAN IP range, you probably need to select this option.
