Ethernet LED:
 Solid Green – connected
 Blinking Green – data transfer activity
Micro USB: This port can be used to attach a direct firmware upgrade to enable manual firmware upgrades if necessary.
WiFi Antennas (IBR600 only): The IBR600 comes with two 2.4 GHz WiFi antennas (Reverse SMA). These antennas
are simple to attach and adjust for maximum WiFi broadcast.

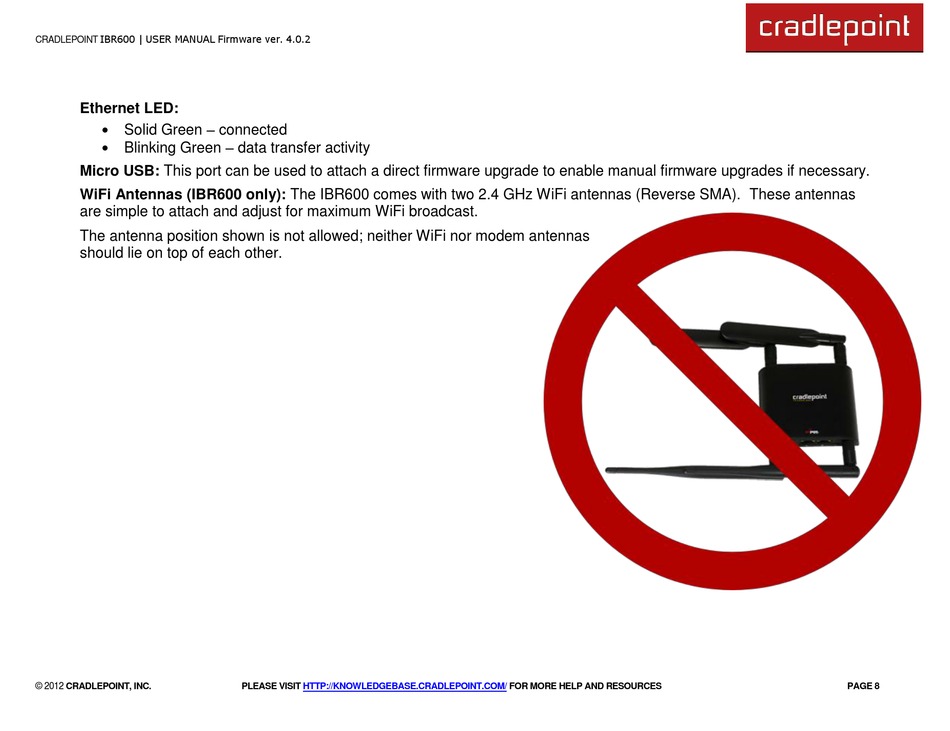

The antenna position shown is not allowed; neither WiFi nor modem antennas
should lie on top of each other.
