User Manual

CBA850

11/5/15

ARC Series

Router

CBA850

User Manual

+1.855.813.3385

cradlepoint.com

Table of Contents

Summary of Contents for Cradlepoint CBA850

Page 2: Table Of Contents
QUICK START BASIC SETUP ACCESSING THE ADMINISTRATION PAGES FIRST TIME SETUP WIZARD USING ENTERPRISE CLOUD MANAGER ADMINISTRATION PAGES QUICK LINKS DASHBOARD CONNECTION MANAGER WAN INTERFACE PROFILES & PRIORITY STATUS INTERNET CLIENT LIST FIREWALL ROUTING ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 3 WAN AFFINITY SECURITY IDENTITIES ZONE FIREWALL CONTENT FILTERING SYSTEM ADMINISTRATION ENTERPRISE CLOUD MANAGER DEVICE ALERTS SERIAL REDIRECTOR SNMP CONFIGURATION SYSTEM CONTROL DIAGNOSTICS SETUP WIZARDS APPENDIX SAFETY, REGULATORY, AND WARRANTY GUIDE ROUTER COMMUNICATION/DATA USAGE ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 4: Introduction
User Manual CBA850 11/5/15 INTRODUCTION WHAT’S IN THE BOX • CBA850 with integrated MC400 Multi-Carrier Software-Defined Radio modem • Universal 3G/4G/LTE antennas with dedicated active GPS antenna port • 12VDC 1A power adapter (1.5 meter cord) • Ethernet cable •...
Page 5: System Requirements
SYSTEM REQUIREMENTS • At least one Internet source: a Cradlepoint integrated 3G/4G modem with an active data plan, an Ethernet-based modem, or WiFi as WAN • Windows 7/8, Mac OS X, or Linux computer (with WiFi adapter – 802.11n recommended – for WiFi functionality) •...
Page 6: Accessories
Installation Guide, available as a PDF in the Resources section of antenna and router product pages. BUSINESS-GRADE MODEM SPECIFICATIONS ARC CBA850 models include an integrated 4G LTE modem – specific model names include a specific modem (e.g., the ARC CBA850LPE-VZ includes a Verizon LTE modem).
Page 7 • Technology: LTE, HSPA+, EVDO Rev A • Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical) • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical) ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...

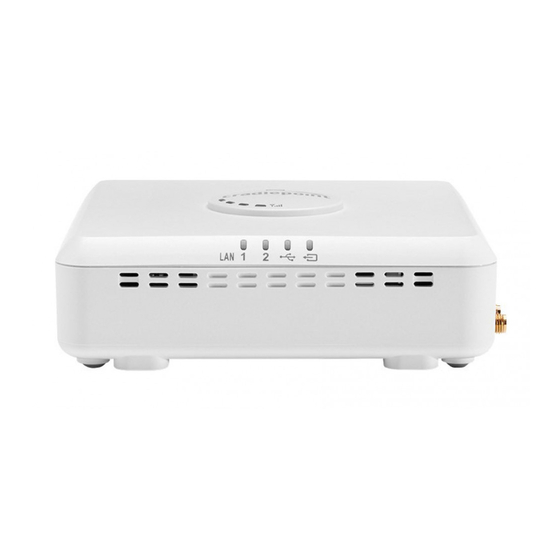

Page 8: Hardware
Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf-cm) • GPS: active GPS support • Industry Standards & Certs: FCC, IC, PTCRB • Modem Part Number: MC400LPE-GN • SIM: two 2FF SIM slots HARDWARE BOTTOM VIEW ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 10: Leds
One-year limited hardware warranty available in the US and Canada; two-year limited hardware warranty for integrated EU products when purchased from an authorized EU distributor – extend warranty to 2, 3, or 5 years. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385...
Page 11: Quick Start
BASIC SETUP 1. Insert an activated SIM The Cradlepoint ARC CBA850 requires a SIM with an activated wireless broadband data plan. Contact your carrier for details about selecting a data plan and about the process for provisioning your SIM. Once you have an activated SIM, insert it into the integrated modem: Remove the modem cover and pull out the integrated modem.
Page 12: Accessing The Administration Pages
When you log in for the first time, you will be automatically directed to the FIRST TIME SETUP WIZARD, which will walk you through the steps to customize your Cradlepoint CBA850. You have the ability to configure any of the following: •...
Page 13: Using Enterprise Cloud Manager
“Register”. Once you have registered your device, go to cradlepointecm.com and log in using your ECM credentials. For more information about how to use Cradlepoint Enterprise Cloud Manager, see the following: • Getting Started •...
Page 14: Quick Links
( ) in the top-right of the desired dialog box. You may return to the Dashboard at any time by clicking on DASHBOARD from the left menu or by clicking on the Cradlepoint logo at the top-left of the screen. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385...
Page 15: Connection Manager
WAN interfaces to use for data transfer. Turning off Load Balance for an active WAN interface may require the user to restart any current browsing session. From WAN Management, select the Load Balance Algorithm from the following dropdown options: ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 16 (The first two requests will be directed at the Primary DNS server and the second two requests will be directed at the Secondary DNS server.) If still no data is received, the ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385...
Page 17 For Monthly and Weekly you are able to specify the day to start each cycle (e.g. the 1st or Tuesday, respectively). Usage Cap: Enter a Cap amount in Megabytes. 1024 Megabyte is equal to 1 Gigabyte. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385...
Page 18 Custom Alert Percentages: Example: “50,80,90,110” (values can exceed 100%) (Triggers alerts when 50, 80, 90, 110% of usage cap is used) NOTE: To enable data usage, check Data Usage Enabled from WAN Management. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 19: Status
Ethernet LLDP System Logs INTERNET CONNECTIONS Select your device to reveal detailed information about the following device properties: • Summary • Modem • Cellular Network • General Information • IPv4 Information • Statistics ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 22 Last Traffic To reset information, click Reset Statistics. STATISTICS Statistics can be gathered at variable Sample Rate and Sample Size for the following areas: • Wireless Device • Data Usage • Failover/Failback/Load Balance ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 24: Client List
Displays information about your Firewall Connection Tracking States. To configure your firewall, select SECURITY from the left navigation. ROUTING Displays information about your System, GRE, and NEMO Routes. To configure these routes, go to NETWORKING > Tunnels. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 25: Ethernet
Networks > Ethernet Ports. Displays GPS location and status. To enable and configure GPS, go to SYSTEM > Administration > GPS. LLDP Displays LLDP information. To enable LLDP, go to SYSTEM > Administration > LLDP. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 26: System Logs
User Manual CBA850 11/5/15 SYSTEM LOGS Displays System Log information. To configure System Logging, go to SYSTEM > Administration > System Logging. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 27: Networking
Local Networks VLAN Interfaces Routing DNS Servers WAN Affinity LOCAL NETWORKS ETHERNET PORTS The CBA850 has two Ethernet ports for local network connections. LAN2 can also be used for PoE (optional). While default settings will be sufficient in most circumstances, you have the ability to control: Mode (Enabled or Disabled) and Link Speed.
Page 28 Hostname: The hostname is the DNS name associated with the router’s local area network IP address. IPv4 Settings IP Address: This is the address used by the router for local area network communication. Changes to this parameter may require a restart to computers on this network. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 29 DHCP server is enabled, users of your network will be able to automatically connect to the Internet without any special configuration. It is recommended that you leave this enabled. Advanced DHCP server configuration is ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 30 Virtual Router IP: IP Address of the Virtual Router. Virtual Router ID: Identifier of the Virtual Router. Router Priority: Failover priority of this router. The highest priority router will take ownership of the Virtual IP. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 31 RADIUS server’s interface. NOTE: If you don’t know the MAC address for the RADIUS server, enter 00:00:00:00:00:00, and the service will try to find the MAC address from the given IP address. Port Password ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 32 The time/date that is logged is the time of the first connection. The page may need to be refreshed to show the most recent log entries. Double-clicking on entries from this list will add them to the Ignored MAC Addresses list. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 33: Vlan Interfaces
Netmask/Prefix: The Netmask, along with the IPv4 address, defines the network the computer belongs to and which other IP addresses the computer can see in the same LAN. An IP address of 192.168.0.1 along with ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385...
Page 34: Dns Servers
Distribute: Allow this static route to be distributed via a routing protocol (BGP, OSPF, RIP, RIPng). DNS SERVERS DNS, or Domain Name System, is a naming system that translates between domain names (www.cradlepoint. com, for example) and Internet IP addresses (206.207.82.197). A DNS server acts as an Internet phone book, translating between names that make sense to people and the more complex numerical identifiers.
Page 35 User name: Enter the user name or key provided by the dynamic DNS service provider. If the dynamic DNS provider supplies only a key, enter that key for both the User name and Password fields. • Password: Enter the password or key provided by the dynamic DNS service provider. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 36: Wan Affinity
VoIP phones. If you know specific DSCP values, you can input one here. DSCP Negate: When checked this rule will match on any packet that does NOT match the DSCP field. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385...
Page 37 Port – Select by the physical port on the router that you are plugging the modem into (e.g., “USB Port 2”). • Manufacturer – Select by the modem manufacturer (e.g., “Cradlepoint Inc.”). • Model – Set your rule according to the specific model of modem.
Page 38 For proper functioning you need to create data usage rules for each WAN device you will be load balancing. Make certain to select the “Use with Load Balancing” checkbox in the data usage rule editor. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 39: Security
IP addresses are entered using CIDR notation, e.g. 1.2.3.4/32 and 0123:4567::CDEF/128. FQDN addresses are entered with at least one dot separating a top-level domain from a root zone, e.g. cradlepoint.com. To add a Host Address Identity, click Add. PORTS A port identity member can be entered as a single Start port number or as a port range by entering both a Start and End port number.
Page 40 Protocols: Select protocols (such as TCP, UDP, GRE, etc) from the defined list or enter a numeric code for other protocols to match traffic of that protocol. • Application Sets: Select the defined application set or sets to match traffic related to those sets. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 41 DMZ IP address. Typical uses involve running a public web server, supporting older games, or sharing files. NOTE: As with port forwarding, caution should be used when enabling the DMZ feature as it can threaten the security of your network. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 42 The primary purpose for Cradlepoint’s NPT implementation is for failover/failback and load balancing setups. LAN clients can potentially retain the original IPv6 lease information and may experience a more seamless transition when WAN connectivity changes than if not utilizing NPT.
Page 43 Zone to ports available on local clients. Zone NAT also has the ability to map many types interfaces selectable via a Zone. For example, GRE interfaces can be used to port forward traffic from the GRE ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385...
Page 44: Content Filtering
Proxy Address: The Proxy Address is the address the desired HTTP proxy is hosted at. Addresses can be input as host names or as ip addresses. If the proxy is unavailable HTTP traffic will fail to cross the network and a notification page will be shown. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 45 HTTPS traffic to. HTTPS is not transparently intercepted and must have the LAN clients configured to use the Cradlepoint router as a proxy for HTTPS to work properly. NETWORK WEB FILTER RULES Domain / URL filter rules allow you to control access from your network to any external domain or website.
Page 46 Licenses to enable this feature. Enter your Zscaler account information to enable these settings. Input local network information (Network Address and Netmask) to assign your Zscaler implementation to one or more local network(s). ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 47: System
Additionally, encrypted connections can be required for an added level of security. • Require HTTPS Connection – Requiring a secure (https) connection is recommended ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 48 MAC address of the router. • Asset Identifier – This is a customizable string that will be used in router reporting and alerting. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 49 • Specify Time Interval - Restricts the GPS sentence reporting to a remote server to a specific time interval. • Start Time - Reporting start time. • End Time - Reporting end time. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 50 White List – This list is blank by default, which means that the router will accept SMS messages from any phone number. Leaving this blank is unsecure, so Cradlepoint recommends that you add phone numbers to this list. Once any numbers are listed, only those numbers have the ability to connect to the router via SMS.
Page 51 USB stick, or you may lose some logging data. Verbose modem logging: Only enable this option if instructed by a Cradlepoint support agent. Create support log: This functionality allows for a quick collection of system logging. Create this log file when instructed by a Cradlepoint support agent.
Page 52: Enterprise Cloud Manager
ENTERPRISE CLOUD MANAGER Cradlepoint Enterprise Cloud Manager (ECM) is a cloud-based management service for configuring, monitoring, and organizing your Cradlepoint routers. Key features include the following: • Group based configuration management • Health monitoring of router connectivity and data usage •...
Page 53 Retry Attempts: The number of attempts made to send an alert to the mail server. After the attempts are exhausted, the alert is discarded. Retry Delay: The delay between retry attempts. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 54: Serial Redirector
SNMP, or Simple Network Management Protocol, is an Internet standard protocol for remote management. You might use this instead of Enterprise Cloud Manager if you want to remotely manage a set of routers that include both Cradlepoint and non-Cradlepoint products. SNMP Configuration •...
Page 55 System Contact: Input the email address of the system administrator. • System Name: Input the router’s hostname. • System Location: Input the physical location of the router. This is simply a string for your own information. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 56: System Control
If you are happy with the operation of the router, you may not want to upgrade just because a new version is available. Check the firmware release notes (cradlepoint.com/firmware) for information to decide if you should upgrade.
Page 57: Diagnostics
Type the Hostname or IP address of the computer you want to ping and click the ‘Ping’ button. Speed Test • Tests Against Cradlepoint Server - Up to ten speed tests are permitted against a Cradlepoint server. • WAN Device - The WAN Device that is selected will have the test run on it.
Page 58: Setup Wizards
WEP. This should only be used if a legacy device that only supports WEP will be connected to the router. WEP is insecure and obsolete and is only supported in the router for ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 59 Configuring Your APN and Modem Authentication If you are using a SIM-based modem (LTE/GSM/HSPA) with your Cradlepoint router you may need to configure the APN before it will properly connect to your carrier. Wireless carriers offer several APNs so check with your carrier to confirm the appropriate one to use.
Page 60 IP Passthrough • The Subnet Selection Mode will be set to “Automatically Create Subnet” unless overridden via the Subnet Selection Mode dropdown Any Ethernet WAN connections should be disconnected before IP passthrough is enabled. ©2015 Cradlepoint. All Rights Reserved. +1.855.813.3385 cradlepoint.com...
Page 61: Appendix
3 dBi in the PCS band and 10 dBi in the LTE band. For the CBA850-LP the maximum antenna gain including cable loss must not exceed 7.5 dBi in the cellular band, 3 dBi in the PCS band, 5.5 dBi in LTE Band 4, and 9 dBi in LTE Band 17. For the CBA850-W the maximum antenna gain must not exceed 9.2 dBi in the 2.5 GHz band (2496-2690 MHz).
Page 62: Router Communication/Data Usage
OTHER BINDING DOCUMENTS; TRADEMARKS; COPYRIGHT By activating or using your Cradlepoint device, you agree to be bound by Cradlepoint’s Terms of Use, User License and other Legal Policies, all as posted at www.cradlepoint.com/legal. Please read these documents carefully. © 2015 Cradlepoint, Inc. All rights reserved. Cradlepoint is not responsible for omissions or errors in typography or photography.
