Disassembly

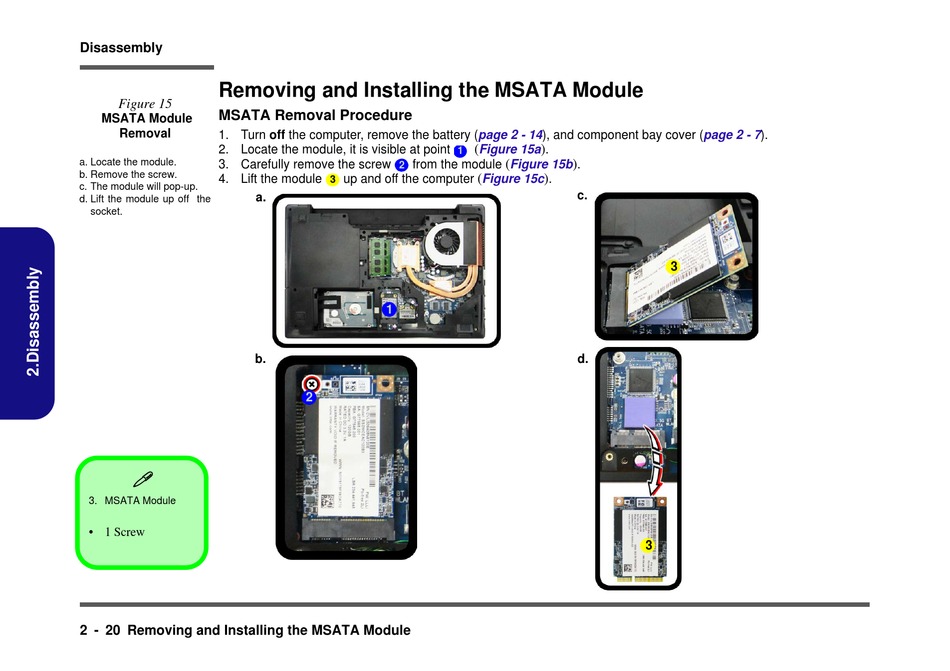

Removing and Installing the MSATA Module

Figure 15
MSATA Removal Procedure
MSATA Module
Removal
1. Turn off the computer, remove the battery
2. Locate the module, it is visible at point
a. Locate the module.
3. Carefully remove the screw
b. Remove the screw.
4. Lift the module
c. The module will pop-up.
a.
d. Lift the module up off the
socket.
b.

3. MSATA Module
• 1 Screw
2 - 20 Removing and Installing the MSATA Module
(page 2 -
(
Figure 15a
1
from the module
2
up and off the computer ( Figure 15c
3
1
2
14), and component bay cover
)
.
( Figure 15b ) .
) .
c.
3
d.
3
(page 2 - 7).
