External Locator - Front & Right Side Views
1
2
1
2

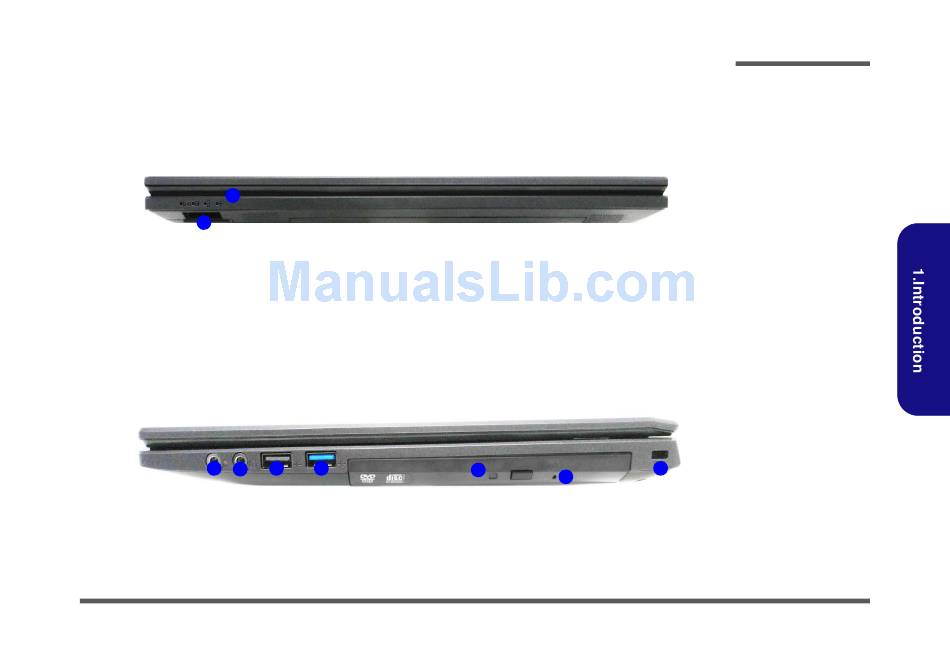

FRONT VIEW
RIGHT SIDE VIEW
3 3
4
5
External Locator - Front & Right Side Views 1 - 5
Introduction
Figure 2
Front View
1. LED Indicator
2. Multi-in-1 Card
Reader
Figure 3
Right Side View
1. Microphone-In
Jack
2. Headphone-Out
Jack
3. USB Ports
4. Optical Device
6
Drive Bay
5. Emergency Eject
Hole
6. Security Lock
Slot
