Removing The Ccd - EUROCOM W650SC series Service Manual

Disassembly

Removing the CCD

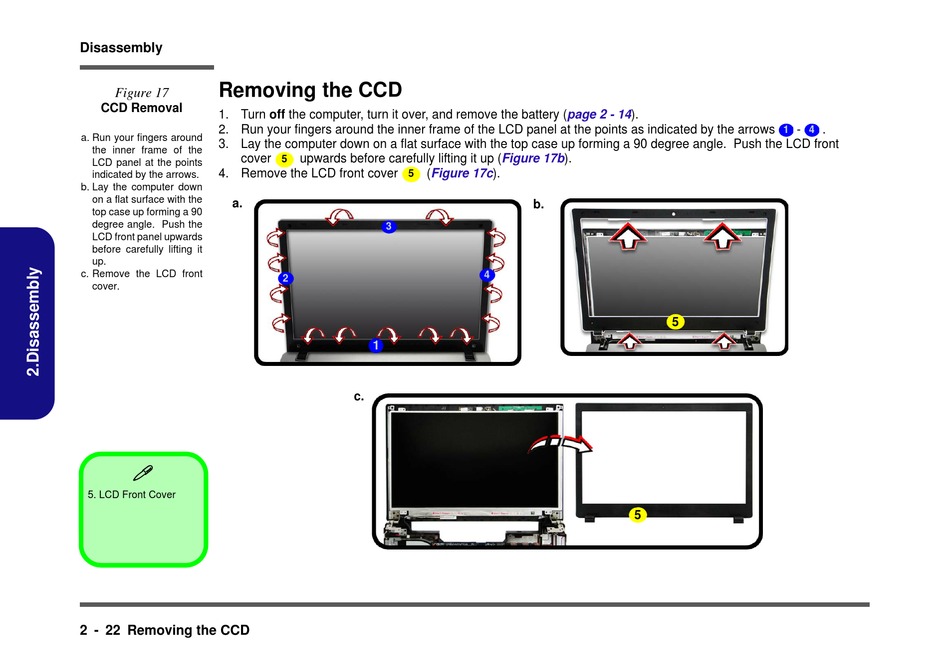

Figure 17
CCD Removal
1. Turn off the computer, turn it over, and remove the battery
2. Run your fingers around the inner frame of the LCD panel at the points as indicated by the arrows
a. Run your fingers around
3. Lay the computer down on a flat surface with the top case up forming a 90 degree angle. Push the LCD front
the inner frame of the
cover
LCD panel at the points
4. Remove the LCD front cover
indicated by the arrows.
b. Lay the computer down
on a flat surface with the
a.
top case up forming a 90
degree angle. Push the
LCD front panel upwards
before carefully lifting it
up.
c. Remove the LCD front
cover.

5. LCD Front Cover
2 - 22 Removing the CCD
upwards before carefully lifting it up
5
(Figure
5
3
2
1
c.
(page 2 - 14).
(Figure 17b).
17c).
b.
4
5
- .
1 4
5
