Removing the 3G Module

1. Turn off the computer, turn it over, remove the battery
2. The 3G module will be visible at point
3. Carefully remove the screw
4. Carefully slide the 3G module
then lift it up (do not exceed 10degrees) to remove it from the computer
5. Carefully remove the screw
6. The min-card interface adaptor
a.
1
b. c.
2
(page 2 -
on the mainboard (Figure
1
(Figure 14b) .
2
(in the direction of the arrow
3
(Figure 14e) .
5
will pop-up, and you can remove it from the computer
6
d.
3
3
4
14) and the component bay cover
14a).
- Figure 14c) out of the interface adaptor and
4
(Figure 14d).
(Figure
e. f.
5
Disassembly

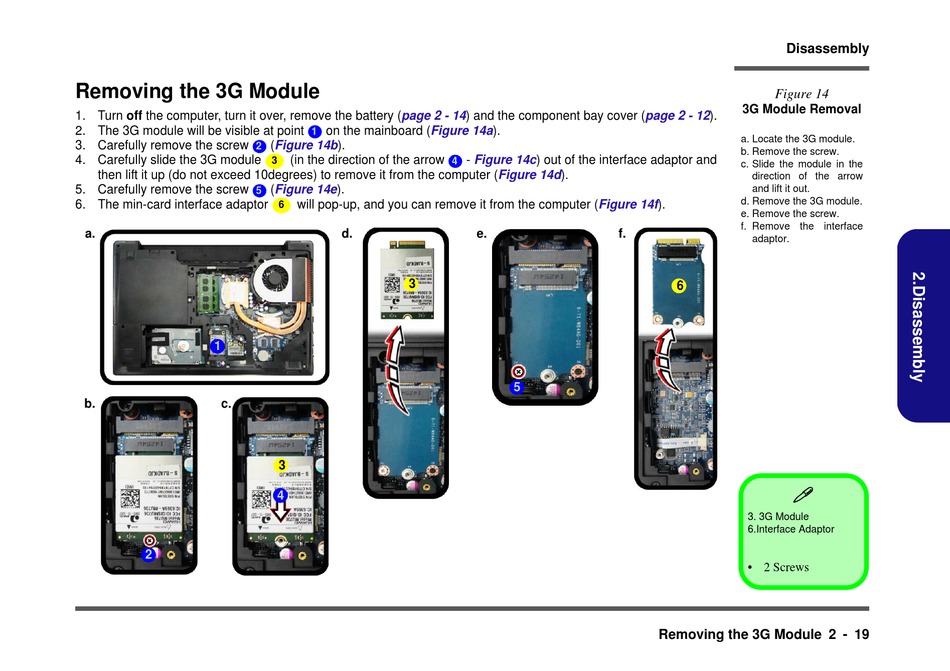

Figure 14
3G Module Removal
(page 2 - 12).
a. Locate the 3G module.
b. Remove the screw.
c. Slide the module in the
direction of the arrow
and lift it out.
d. Remove the 3G module.
14f).
e. Remove the screw.
f. Remove the interface
adaptor.
6

3. 3G Module
6.Interface Adaptor
• 2 Screws
Removing the 3G Module 2 - 19
