EUROCOM W650SC series Service Manual page 35

6. Carefully pry the bezel off the optical device at point
9
7. Separate the bezel and the optical device.
9
8. Reverse the process to attach the front bezel
9. Insert the new device and carefully slide it into the computer (the device only fits one way. DO NOT FORCE IT; The
screw holes should line up).
10. Replace the bay cover by pushing it at point
screws.
11. Restart the computer to allow it to automatically detect the new device.
e.
8
f.
9
)
(Figure 7e .
8
with the new optical device at point
9
until the cover and case indicator are aligned, then tighten the
11
g.
10
9
h.
(Figure 7g).
10

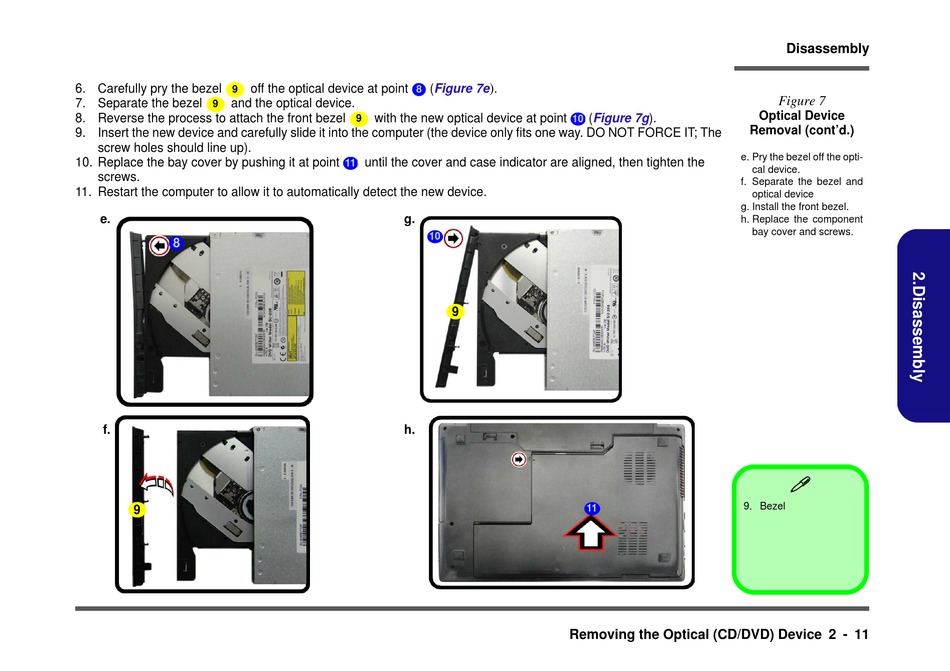

Removal (cont'd.)
e. Pry the bezel off the opti-
f. Separate the bezel and
g. Install the front bezel.
h. Replace the component
9. Bezel
11
Removing the Optical (CD/DVD) Device 2 - 11
Disassembly
Figure 7
Optical Device
cal device.
optical device
bay cover and screws.

